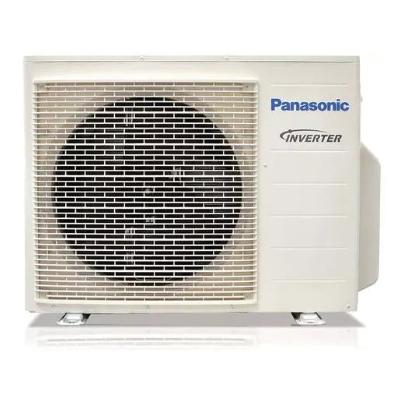

Panasonic CU-3E19RBU-5 Multi-Zone Outdoor Condenser, 208/230 V, 7.4 to 6.7 A, 19000 Btu/hr Cooling, 1 ph Phase
- Manufacturer: Panasonic Corporation
- Brand Name: Panasonic
- Part#: PSNCU-3E19RBU-5
- MPN: CU-3E19RBU-5
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Two to three zone, 1.5 ton multi-zone outdoor condenser unit provides heating and cooling for two to three indoor units. -5 deg F Cold Climate heat operation. Select wall-mount, four-way cassette or slim duct units for indoor installation.
Panasonic Multi-Zone Outdoor Condenser, 208/230 V, 7.4 to 6.7 A, 1510 W Cooling, 2060 W Heating, 60 Hz, 1 ph Phase, 26000 Btu/hr Heating, 19000 Btu/hr Cooling, 12.55 EER Rating, 22 SEER, 7.7, 10.1 HSPF, Flared Connection, DC Motor, Inverter, Twin Rotary Compressor, R-410A Refrigerant, 1/4 in, 3/8 in Liquid Line, 3 in Suction Line, Tonnage: 1.5 ton, 52 dB Heating Sound Level, 50 dB Cooling Sound Level, 14-3/6 in Overall Length, 34-15/32 in Overall Width, 31-5/16 in Overall Height
| Amperage Rating | : | 7.4 to 6.7 A |
| Compressor Type | : | DC Motor, Inverter, Twin Rotary |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 19000 Btu/hr |
| Cooling Sound Level | : | 50 dB |
| EER Rating | : | 12.55 |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 7.7, 10.1 |
| Heating BTU Rating | : | 26000 Btu/hr |
| Heating Sound Level | : | 52 dB |
| Liquid Line Size | : | 1/4 in, 3/8 in |
| Overall Height | : | 31-5/16 in |
| Overall Length | : | 14-3/6 in |
| Overall Width | : | 34-15/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 1510 W Cooling, 2060 W Heating |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 22 |
| Suction Line Size | : | 3 in |
| Tonnage | : | 1.5 ton |
| Voltage Rating | : | 208/230 V |
