Panasonic CU-2Z18ABUC PSNCU-2Z18ABUC
  1. pin-int

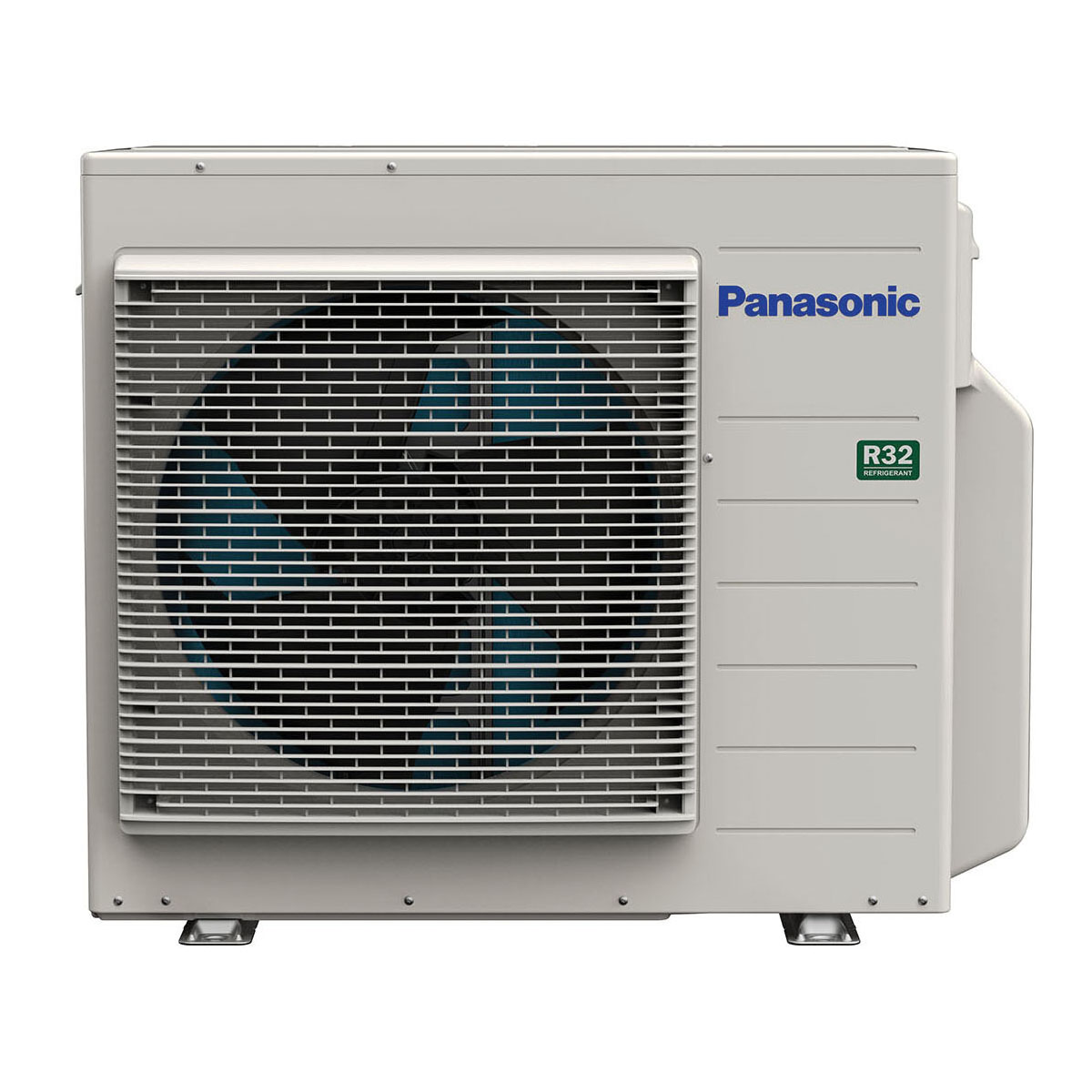

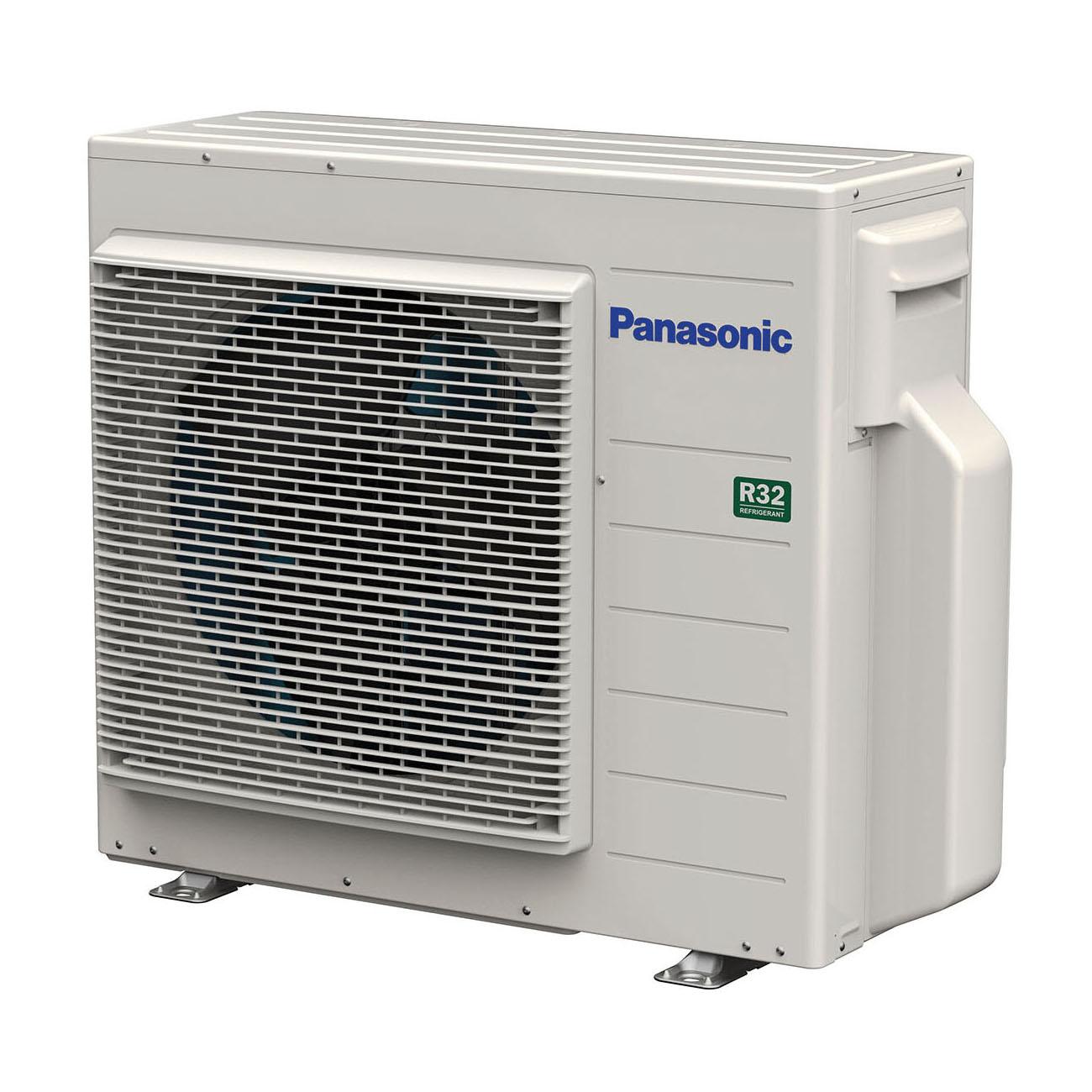

Panasonic CU-2Z18ABUC Multi-Zone Outdoor Condenser, 208/230 V, 15.6 A, 18000 Btu/hr Cooling, 1 ph

Panasonic CU-2Z18ABUC Multi-Zone Outdoor Condenser, 208/230 V, 15.6 A, 18000 Btu/hr Cooling, 1 ph

  • Manufacturer: Panasonic Corporation
  • Brand Name: Panasonic
  • Part#: PSNCU-2Z18ABUC
  • MPN: CU-2Z18ABUC
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

This Panasonic multi-zone outdoor condenser unit provides heating and cooling for 2 indoor units and cold climate heating operation down to -26 degC (-15 degF). Choose the optimum indoor wall units for each room from 5k - 18k Btu.

Panasonic Multi-Zone Outdoor Condenser, 208/230 V, 15.6 A, 1200 W Cooling, 1660 W Heating, 60 Hz, 1 ph, 22000 Btu/hr Heating, 18000 Btu/hr Cooling, 1567 cfm Heating CFM Rating, 1567 cfm Cooling CFM Rating, 22.5 SEER, 10/12.5 HSPF, Flared Connection Type, Inverter Driven DC Brushless Rotary Compressor, R-32 Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 20 A Fuse Rating, 2-Row, 19 FPI Coil, 50 dBA Heating Sound Level, 48 dBA Cooling Sound Level, Powder-Coated, -15 to 75.2 deg F Heating Operating Temperature, 14 to 114.8 deg F Cooling Operating Temperature, 12-5/8 in Overall Length, 34-15/32 in Overall Width, 31-5/16 in Overall Height, For Use With: CS-MXZ5AKUAW, CS-MXZ7AKUAW, CS-XZ Series, CS-Z Series Indoor Units

Amperage Rating      :      15.6 A
Coil Rating      :      2-Row, 19 FPI
Compressor Type      :      Inverter Driven DC Brushless Rotary
Connection Type      :      Flared
Cooling BTU Rating      :      18000 Btu/hr
Cooling CFM Rating      :      1567 cfm
Cooling Operating Temperature      :      14 to 114.8 deg F
Cooling Sound Level      :      48 dBA
Finish      :      Powder-Coated
Frequency Rating      :      60 Hz
Fuse Rating      :      20 A
HSPF Rating      :      10/12.5
Heating BTU Rating      :      22000 Btu/hr
Heating CFM Rating      :      1567 cfm
Heating Operating Temperature      :      -15 to 75.2 deg F
Heating Sound Level      :      50 dBA
Liquid Line Size      :      1/4 in
Overall Height      :      31-5/16 in
Overall Length      :      12-5/8 in
Overall Width      :      34-15/32 in
Phase      :      1 ph
Power Rating      :      1200 W Cooling, 1660 W Heating
Refrigerant Type      :      R-32
SEER Rating      :      22.5
Suction Line Size      :      3/8 in
Suitable For Use With      :      CS-MXZ5AKUAW, CS-MXZ7AKUAW, CS-XZ Series, CS-Z Series Indoor Units
Voltage Rating      :      208/230 V
  • Works with indoor units (CS-MXZ5AKUAW, CS-MXZ7AKUAW, CS-XZ Series & CS-Z Series)
  • -26 degC (-15 degF) Cold climate heating operation
  • R32 Refrigerant for zero impact on the ozone layer
  • Blue Fin condenser (anti-corrosion coating)
  • Base pan heater included
  • ENERGY STAR® Cold Climate Certified
