Panasonic CS-XZ18AKUAW PSNCS-XZ18AKUAW
  1. pin-int

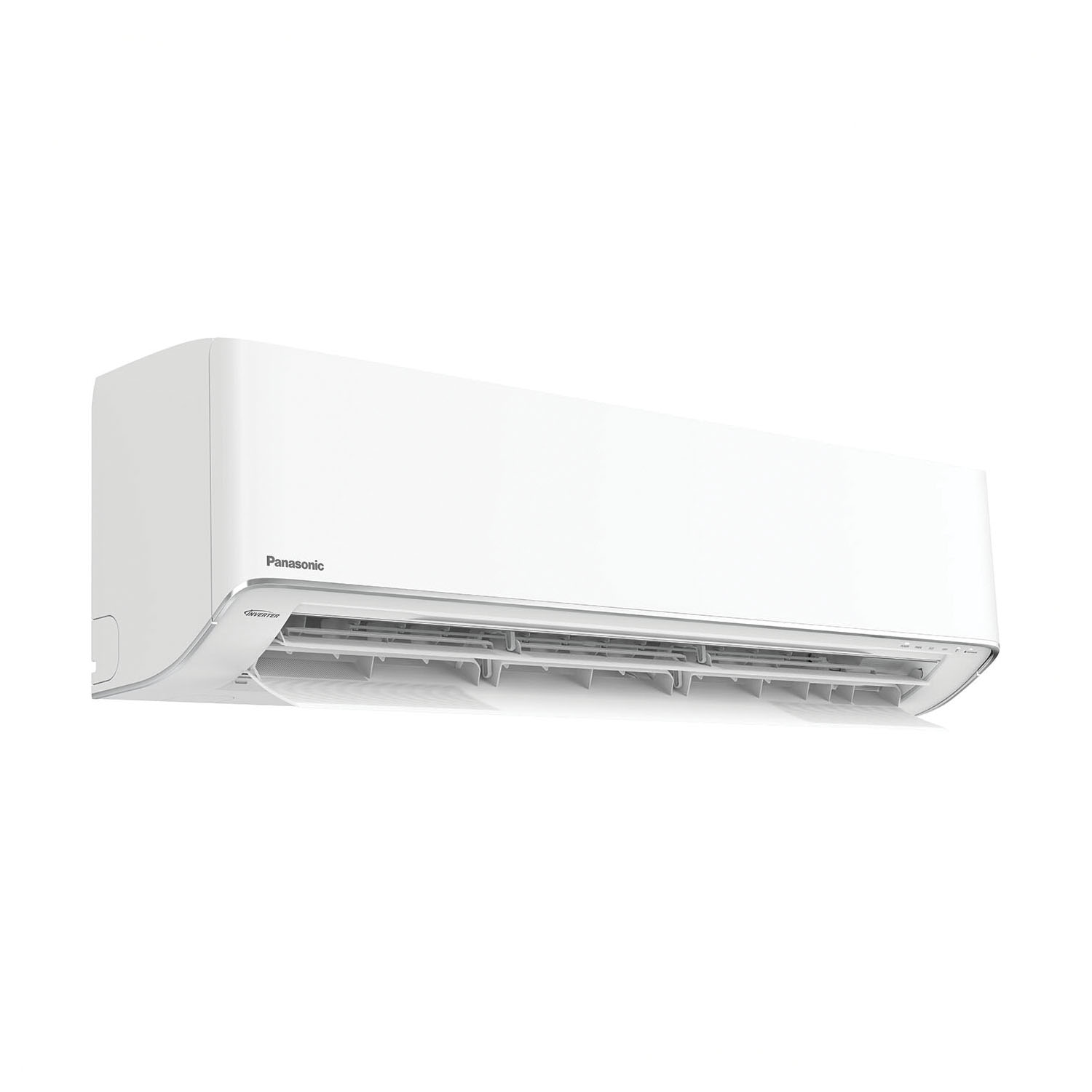

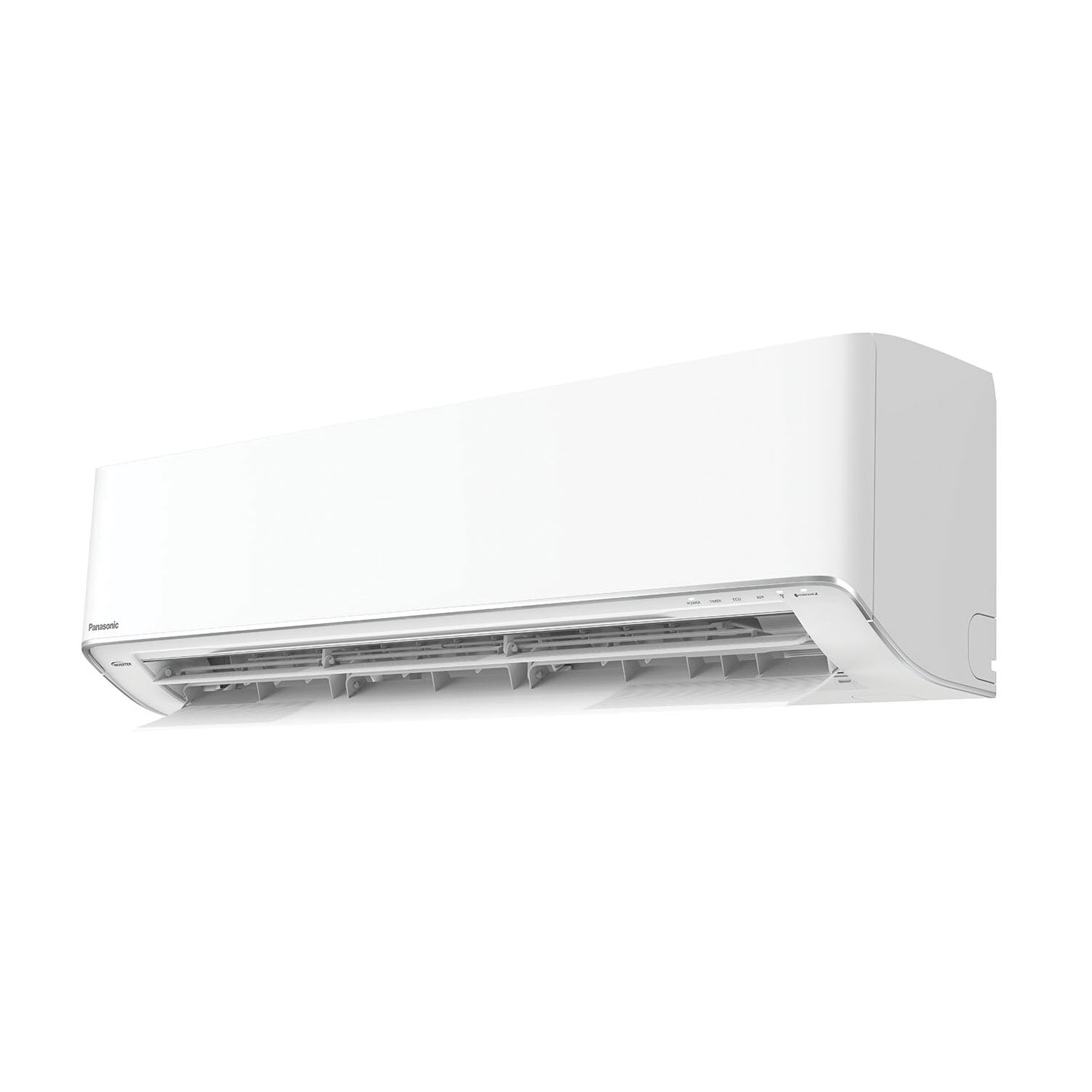

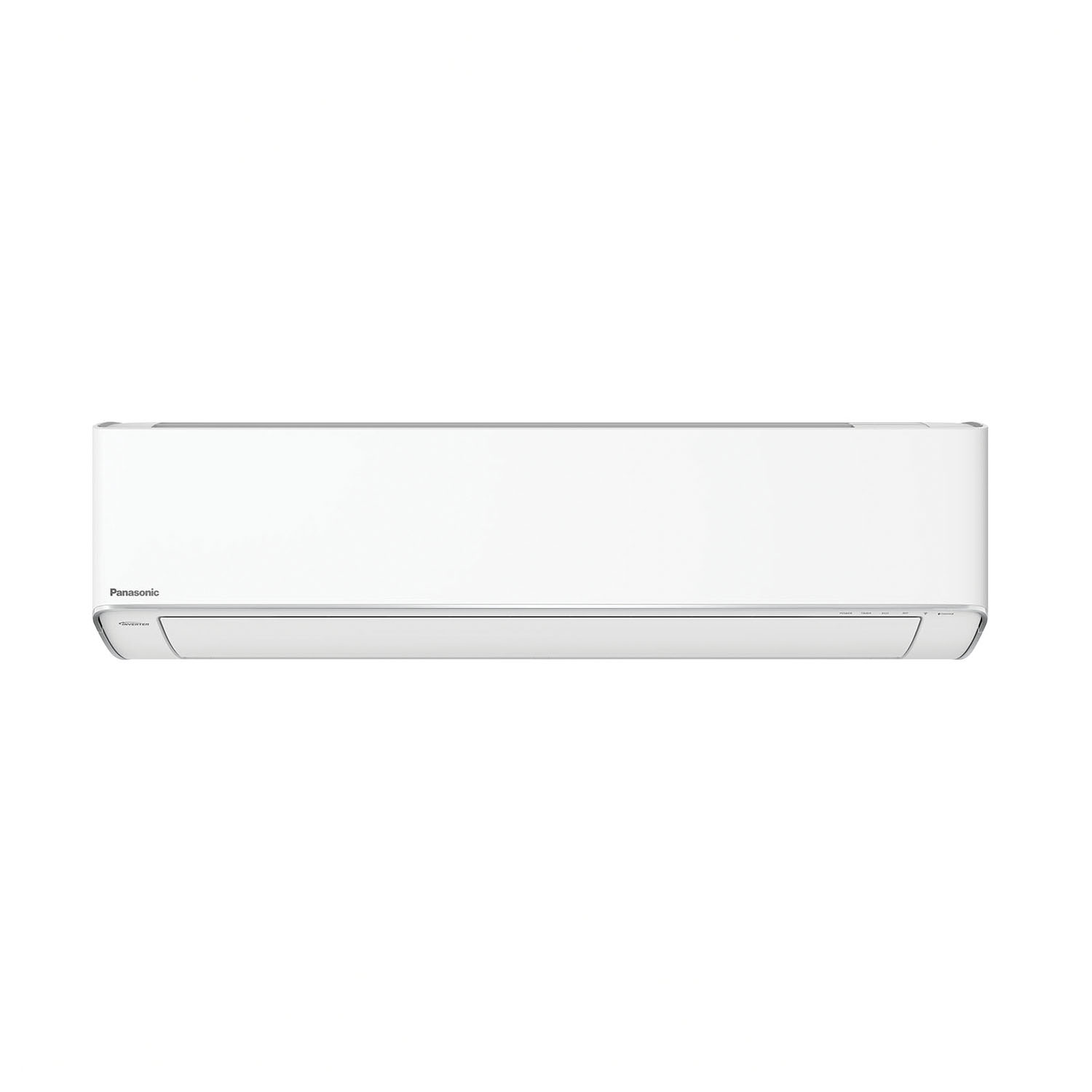

Panasonic ClimaPure™ CS-XZ18AKUAW Multi-Split Indoor Unit, 208/230 V, 11.3 A, 1 ph

Panasonic ClimaPure™ CS-XZ18AKUAW Multi-Split Indoor Unit, 208/230 V, 11.3 A, 1 ph

  • Manufacturer: Panasonic Corporation
  • Brand Name: Panasonic
  • Part#: PSNCS-XZ18AKUAW
  • MPN: CS-XZ18AKUAW
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Ductless heating and air conditioning systems provide optimal comfort along with the reduced energy consumption that comes with zoned temperature control. The new XZ ductless system features an improved nanoe™ X - a built-in air and surface purification technology that provides a comfortable environment for everyone.

Panasonic Multi-Split Indoor Unit, XZ Series, Model: XZ18AKUA, 208/230 V, 11.3 A, 1260 W Cooling, 1540 W Heating, 60 Hz, 1 ph, 17200 Btu/hr Cooling, 20400 Btu/hr Heating, 610 cfm Cool, 630 cfm Heat, 13.65 EER Rating, 22 SEER, 8.8/11.7 HSPF, Flared Connection Type, 20 A Fuse Rating, 2-Row, 21 FPI Coil, 46 dBA Sound Level, Wall Mounting, Powder-Coated, -0.04 to 114.8 deg F Cooling, -14.8 to 75.2 deg F Heating, 9-5/8 in Overall Length, 40-31/32 in Overall Width, 11-5/8 in Overall Height, Additional Information: R-32 Refrigerant Type

Additional Information      :      R-32 Refrigerant Type
Amperage Rating      :      11.3 A
BTU Rating      :      17200 Btu/hr Cooling, 20400 Btu/hr Heating
CFM Rating      :      610 cfm Cool, 630 cfm Heat
Coil Rating      :      2-Row, 21 FPI
Connection Type      :      Flared
EER Rating      :      13.65
Finish      :      Powder-Coated
Frequency Rating      :      60 Hz
Fuse Rating      :      20 A
HSPF Rating      :      8.8/11.7
Model      :      XZ18AKUA
Mounting Type      :      Wall
Overall Height      :      11-5/8 in
Overall Length      :      9-5/8 in
Overall Width      :      40-31/32 in
Phase      :      1 ph
Power Rating      :      1260 W Cooling, 1540 W Heating
SEER Rating      :      22
Series      :      XZ Series
Sound Level      :      46 dBA
Temperature Rating      :      -0.04 to 114.8 deg F Cooling, -14.8 to 75.2 deg F Heating
Voltage Rating      :      208/230 V
  • Indoor unit: CS-XZ18AKUAW / Outdoor unit: CU-XZ18AKUAC
  • The indoor unit CS-XZ18AKUAW can also be used for Multi-Zone Installations
  • -26 degC (-15 degF) Cold climate heating operation
  • R32 Refrigerant for zero impact on the ozone layer
  • Improved nanoe™ X - air and surface purification
  • AI ECO intelligently balances energy savings and comfort
  • Wireless remote control included (New modern design)
  • Improved comfort cloud app
  • Built-in Wi-Fi (easy to connect)
  • Fireplace function
  • Base pan heater included
  • ENERGY STAR® Cold Climate Certified
