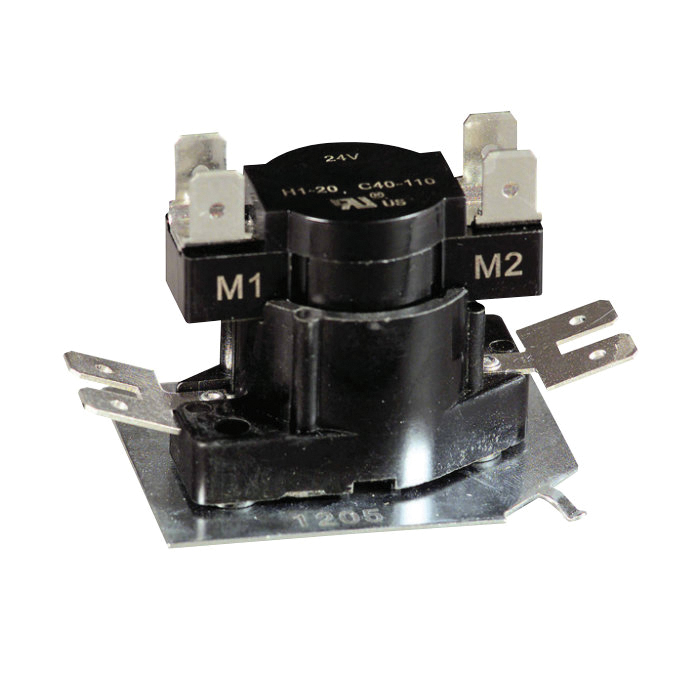

resideo R24 Series R24DB4005/U Heat Sequencer, 4 -Switch, 2 -Timing, 1 to 110 s Switch On, 1 to 110 s Switch Off
- Manufacturer: Resideo Technologies Inc
- Brand Name: resideo
- Part#: HNWR24DB4005/U
- MPN: R24DB4005/U
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
R24 Series Heat Sequencers from Resideo are solid-state positive temperature coefficient (PTC) heaters that mount in any position. Quick-connect terminals speed up installation and the R24 Series Heaters Conveniently replace a wide range of models.
resideo Heat Sequencer, R24 Series, 4 Switches, 2 Timings, 1 to 110 s Switch On, 1 to 110 s Switch Off, 14 A at 120 V Inductive, 25 A at 120 V Resistive, 24 V, Additional Information: 1/4 in Quick-Connect Terminal
| Additional Information | : | 1/4 in Quick-Connect Terminal |
| Inductive Rating | : | 14 A at 120 V |
| Number of Switches | : | 4 |
| Number of Timings | : | 2 |
| Resistive Rating | : | 25 A at 120 V |
| Series | : | R24 Series |
| Switch Off Time | : | 1 to 110 s |
| Switch On Time | : | 1 to 110 s |
| Voltage Rating | : | 24 V |
- Solid-state PTC Heaters
- Quick-connect terminals
- Shock and vibration resistant
- Mounts in any position
- Contact ratings - to 25 A at 120 or 240 V and 12.5 A at 480 V
- Full-load rating auxiliary contacts
- Standard operating ambience temperature between -40 C and 73.8 C (-40 F and 165 F)
