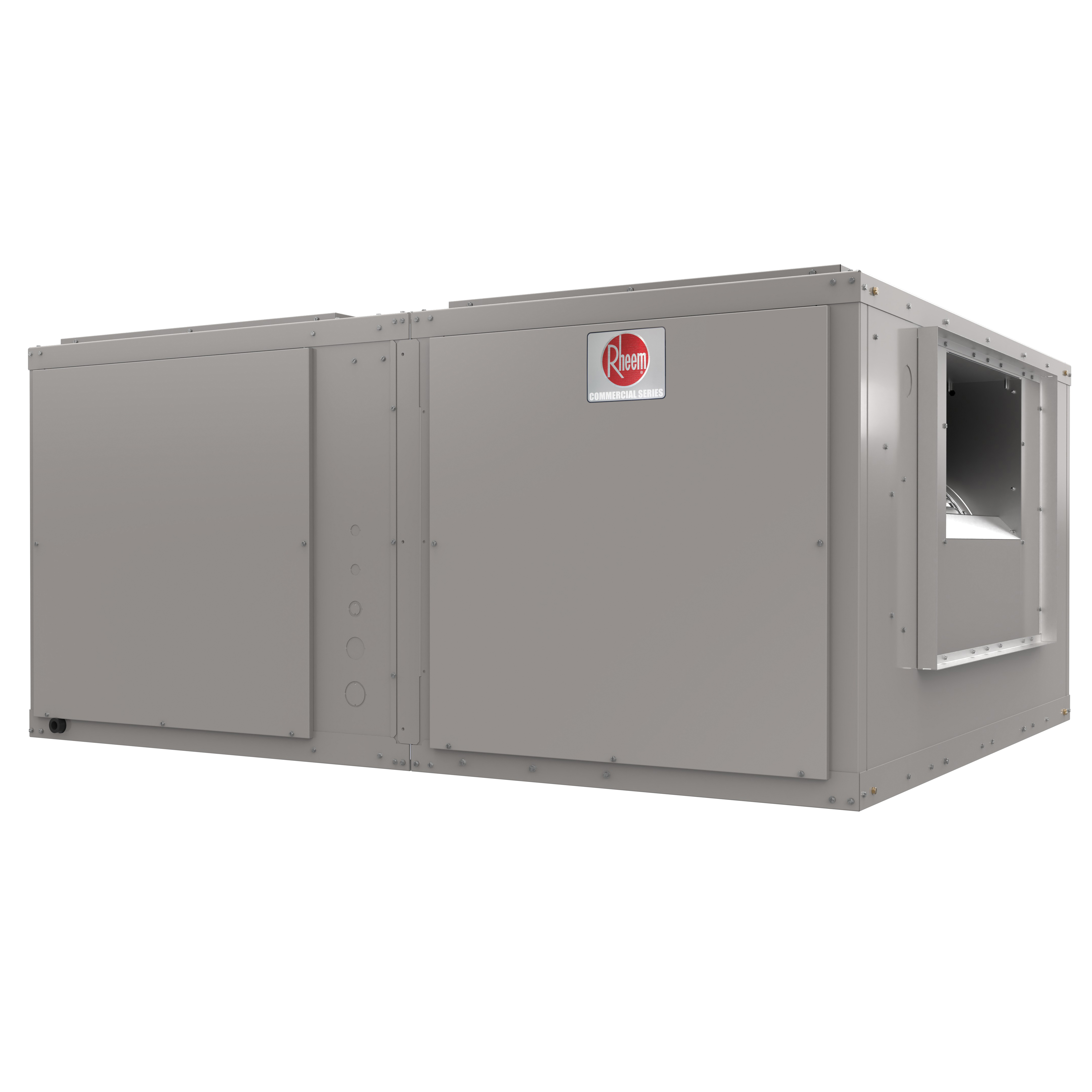

Rheem® Commercial Split Classic® RHCYA Series RHCYA2120DAT Air Handler, 4000 cfm, 460 V, 35 kW, 2 hp, 60 Hz, 3 ph -Phase
- Manufacturer: Rheem Manufacturing
- Brand Name: Rheem®
- Part#: USRRHCYA2120DAT
- MPN: RHCYA2120DAT
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Rheem® Air Handler, RHCYA Series, Model: RHCYA2120, 10 ton Nominal Capacity, 120000 Btu/hr Cooling Capacity, 460 V, 35 kW Wattage, 2 hp, 60 Hz, 3 ph Phase, 1725 rpm Rotational Speed, 4000 cfm, R-454B Refrigerant, 15 FPI, 10.2 sq-ft Area Coil, 1-3/8 in Connection, 5/8 in Liquid Line, 20 x 25 x 1 in Filter, Steel, Galvanized/Pre-Painted Baked Enamel, 125.6 deg F, 52 in L x 52 in W x 27 in H
| CFM Rating | : | 4000 cfm |
| Coil Rating | : | 15 FPI, 10.2 sq-ft Area |
| Connection Size | : | 1-3/8 in |
| Cooling Capacity | : | 120000 Btu/hr |
| Dimensions | : | 52 in L x 52 in W x 27 in H |
| Filter Size | : | 20 x 25 x 1 in |
| Finish | : | Galvanized/Pre-Painted Baked Enamel |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2 hp |
| Liquid Line Size | : | 5/8 in |
| Material | : | Steel |
| Model | : | RHCYA2120 |
| Nominal Capacity | : | 10 ton |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-454B |
| Rotational Speed | : | 1725 rpm |
| Series | : | RHCYA Series |
| Temperature Rating | : | 125.6 deg F |
| Voltage Rating | : | 460 V |
| Wattage | : | 35 kW |
- Designed for R-454B refrigerant
- Wired and run tested
- Convertible airflow - vertical up flow or horizontal sideflow
- Cooling operation up to 125 deg F ambient
- TXV refrigerant metering system
- Field-adjustable TXVs
- Solid-core liquid line filter drier
- Insulation encapsulated throughout entire unit
- Galvanized steel drain pan
- Standard Variable Frequency Drives (VFDs)
- Unit cabinet design shall be separable to facilitate mobilization during installation
- MERV 8 & MERV 13 filters are available as an accessory
