Sure Comfort® RHCYA2090CAS USRRHCYA2090CAS
  1. pin-int

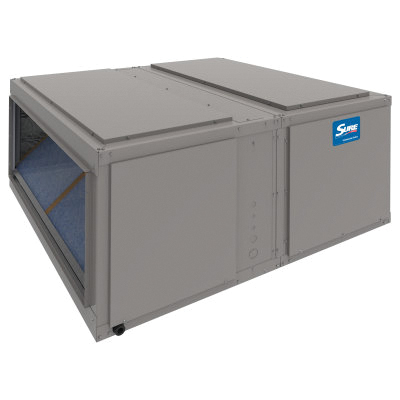

Sure Comfort® RHCYA RHCYA2090CAS Commercial Split Air Handler, 208/230 V, 8 A, 2 hp, 60 Hz, 3 ph

Sure Comfort® RHCYA RHCYA2090CAS Commercial Split Air Handler, 208/230 V, 8 A, 2 hp, 60 Hz, 3 ph

  • Manufacturer: Rheem Manufacturing
  • Brand Name: Sure Comfort®
  • Part#: USRRHCYA2090CAS
  • MPN: RHCYA2090CAS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Sure Comfort® Commercial Split Air Handler, RHCYA2 Series, Model: RHCYA, 7.5 ton Nominal Capacity, 208/230 V, 8 A, 2 hp, 60 Hz, 3 ph Phase, 1725 rpm Rotational Speed, Horizontal Sideflow, Vertical Upflow, R-454B Refrigerant, 15 A Fuse Rating, 10.2 sq-ft Face Area Coil, 1/2 in Liquid Line, 1-1/8 in Suction Line, 2 Stages, 1 Speed, Medium Static Drive Motor, 57.83 in L x 52.89 in W x 27.86 in H, Additional Information: Commercial Cabinet, Air Conditioner Heat

Additional Information      :      Commercial Cabinet, Air Conditioner Heat
Amperage Rating      :      8 A
Coil Rating      :      10.2 sq-ft Face Area
Configuration      :      Horizontal Sideflow, Vertical Upflow
Dimensions      :      57.83 in L x 52.89 in W x 27.86 in H
Frequency Rating      :      60 Hz
Fuse Rating      :      15 A
HP Rating      :      2 hp
Liquid Line Size      :      1/2 in
Model      :      RHCYA
Motor Type      :      Medium Static Drive
Nominal Capacity      :      7.5 ton
Number of Speeds      :      1
Number of Stages      :      2
Phase      :      3 ph
Refrigerant Type      :      R-454B
Rotational Speed      :      1725 rpm
Series      :      RHCYA2 Series
Suction Line Size      :      1-1/8 in
Voltage Rating      :      208/230 V
  • The RHCYA Series air handler features a modular design, allowing for easier transportation and installation, reducing labor costs and downtime during setup. Models are also compatible with MERV8 and MERV13 filters for enhanced building IAQ. Designed for use with matching RACY models only.
  • Available power options: 208-230V / 3 phase / 60 Hz . 460V / 3 phase / 60 Hz . 575V / 3 phase / 60 Hz
  • Limited Warranty (Commercial Applications): Parts - 1 Year. Additional extended warranty packages available through ProtectionPlus®.
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/SureComfort_RHCYA2090CAS_Catalog.pdf
  • pdfWarranty Information https://assets.unilogcorp.com/267/ITEM/DOC/SureComfort_RHCYA2090CAS_Warranty.pdf
