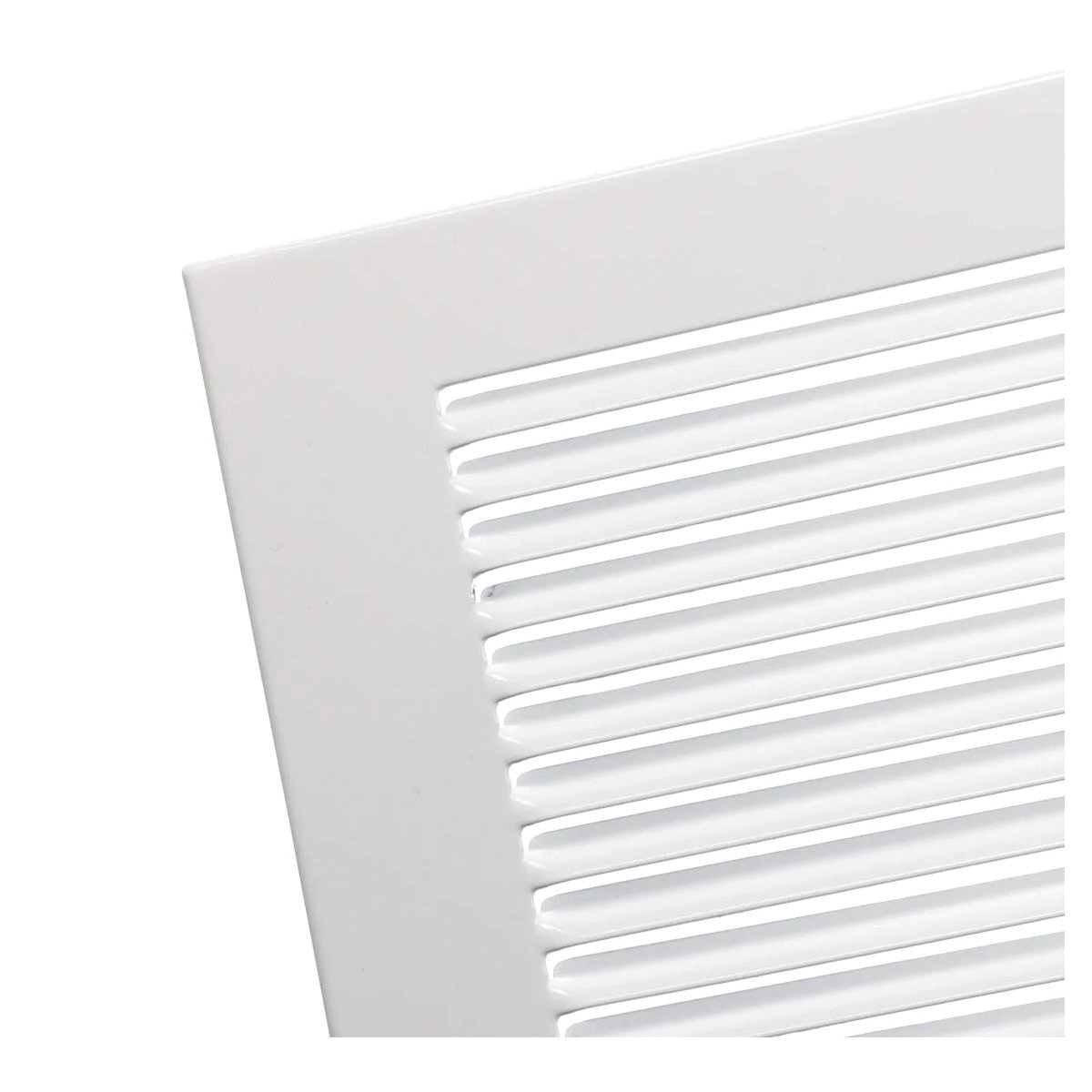

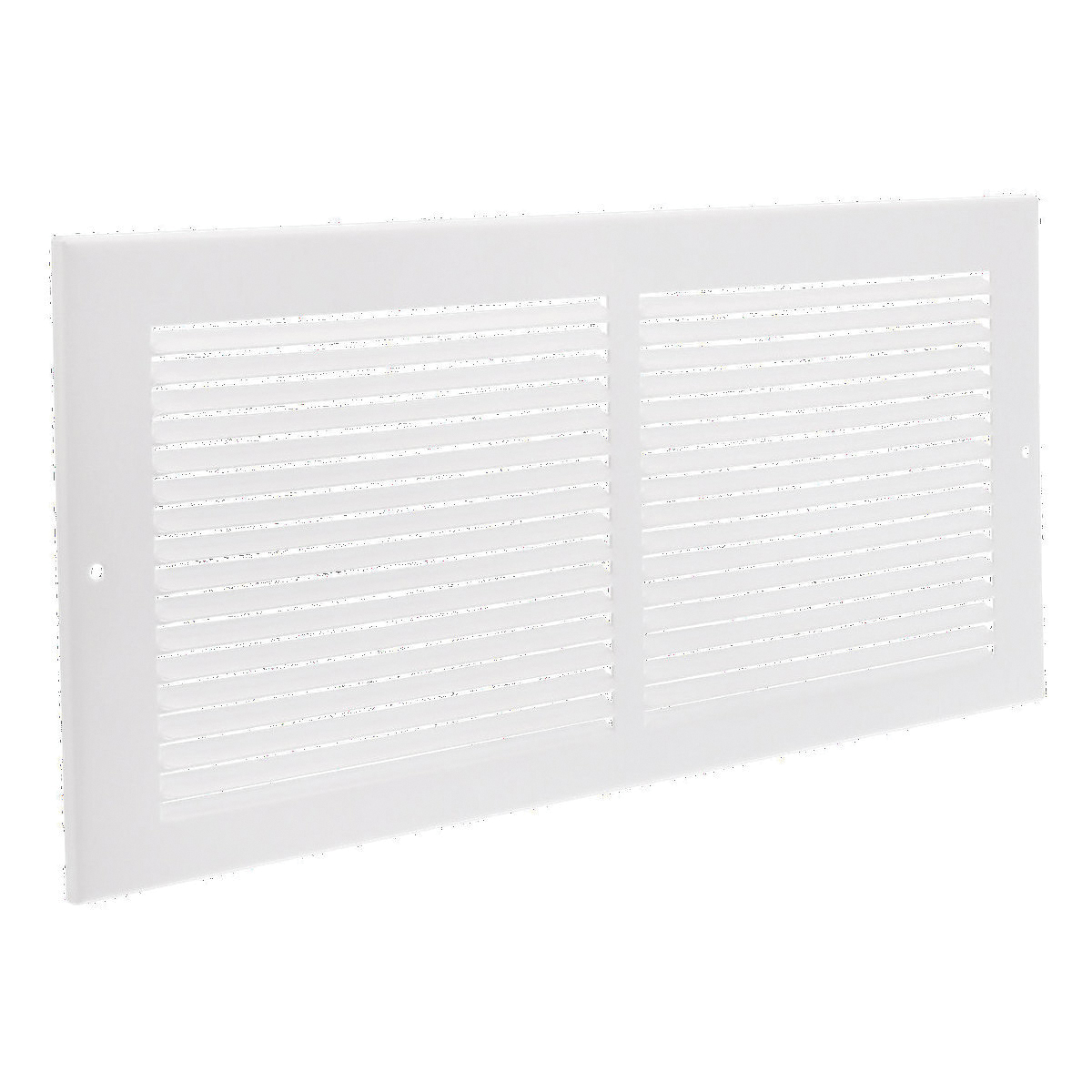

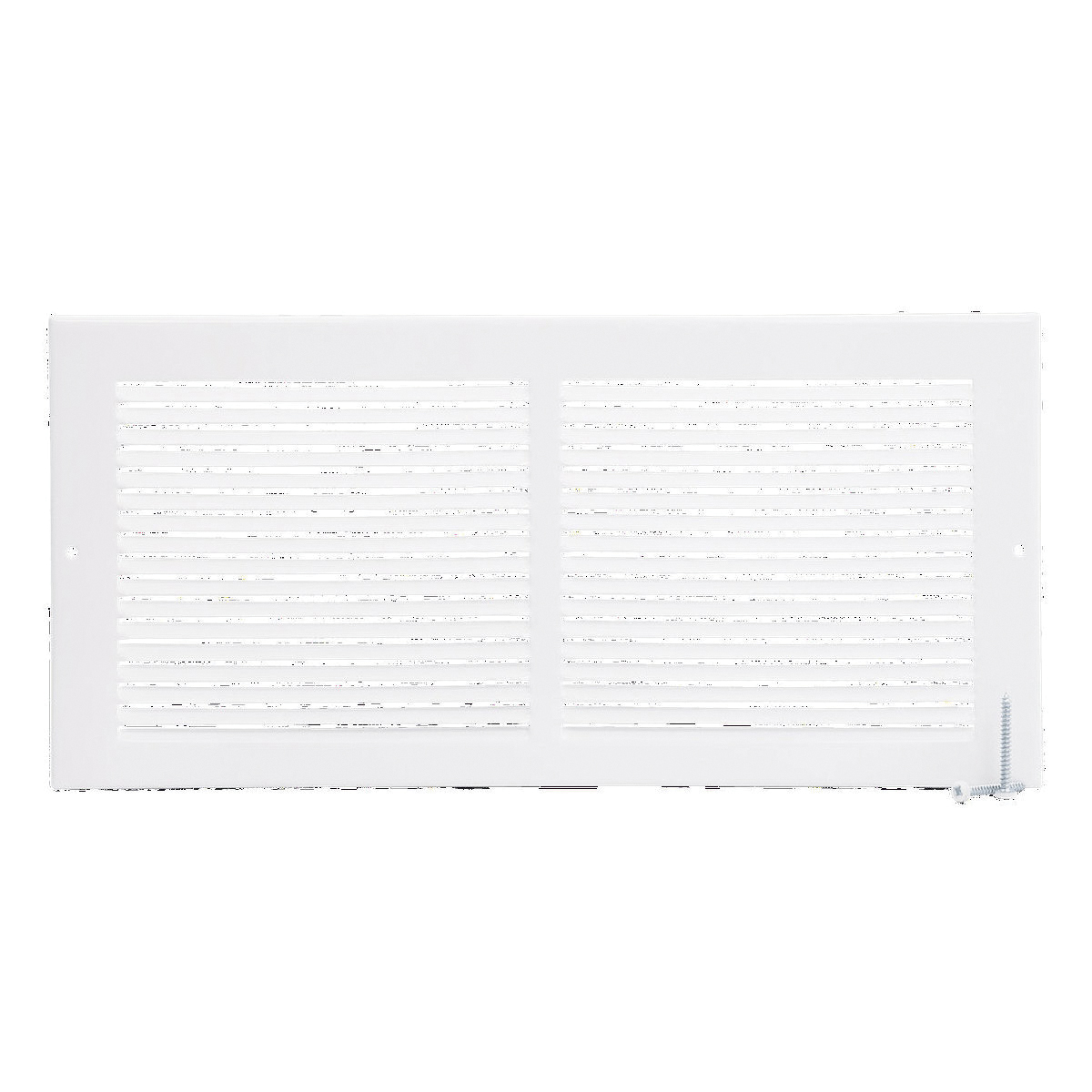

Imperial® RG0418 Return Air Sidewall Grille, 14 x 6 in, Steel, Painted/Powder-Coated, White
- Manufacturer: Imperial Manufacturing Group
- Brand Name: Imperial®
- Part#: IMPRG0418
- MPN: RG0418
- UPC: 063467122128
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Imperial® Return Air Sidewall Grille, 14 x 6 in, 1/3 in Grille Spacing, 15-1/4 in Length, 7-1/4 in Width, 1/4 in Height, Steel, Finish: Painted/Powder-Coated, White
| Additional Information | : | 1/4 in THK Dimensions |
| Area | : | 52.7 sq-in |
| Color | : | White |
| Correct Item Group | : | Grilles |
| Deflection Type | : | 35 deg |
| Duct Size | : | 5-7/8 in H x 13-7/8 in W |
| Finish | : | Painted/Powder-Coated |
| Grille Spacing | : | 1/3 in |
| Height | : | 1/4 in |
| Length | : | 15-1/4 in |
| Material | : | Steel |
| Series | : | RG Series |
| Size | : | 14 x 6 in |
| Width | : | 7-1/4 in |
- One-piece all steel construction
- 1/3 in spaced fins set at 20 deg angle
- 3/16 in margin turnback
- Painted grilles have a durable powder-coat finish
