resideo ZD10X10 HNWZD10X10
  1. pin-int

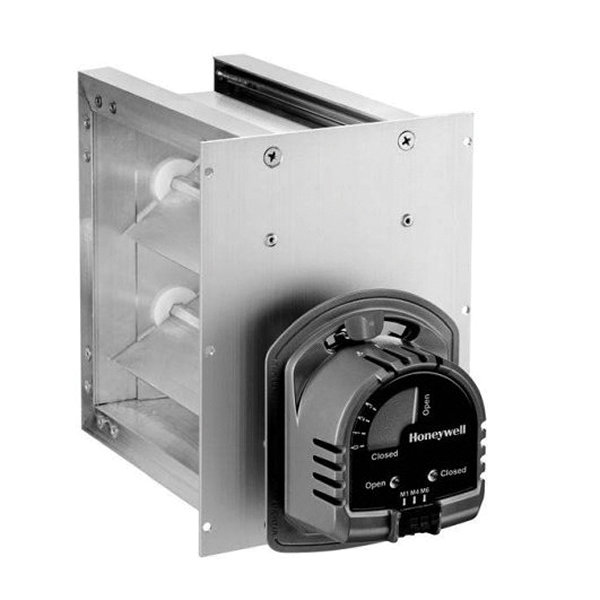

resideo ZD Series ZD10X10 Parallel Blade Damper, Square, 24 V, 0.32 A

resideo ZD Series ZD10X10 Parallel Blade Damper, Square, 24 V, 0.32 A

  • Manufacturer: Resideo Technologies Inc
  • Brand Name: resideo
  • Part#: HNWZD10X10
  • MPN: ZD10X10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The ZD is a power close and spring open damper. It has a 24-volt motor used to control circulating air in HVAC systems and used when a normally-open damper is required. The ZD is typically used with the TrueZONE and other electronic zoning systems.

resideo Parallel Blade Damper, ZD Series, 24 V, 0.32 A, 60 Hz, Parallel Blade, 30 s Power Open, 10 s Spring Return Timing, Aluminum, Motor Specifications: Power Closed, Spring Open, 4-41/64 in H x 3-61/64 in W x 4-31/32 in D Motor, Square Shape, 40 to 140 deg F, 10 in Width, 10 in Height

Additional Information      :      For Use With: Honeywell® Zoning Systems
Amperage Rating      :      0.32 A
Blade Type      :      Parallel
Domestic/Import      :      Import
Electrical Connection      :      Push Terminal
Frequency Rating      :      60 Hz
Height      :      10 in
Length      :      10 in
Material      :      Aluminum
Motor Dimensions      :      4-41/64 in H x 3-61/64 in W x 4-31/32 in D
Motor Specifications      :      Power Closed, Spring Open
Motor Type      :      Power Closed/Spring Open
Mounting Type      :      Side
Pressure Drop      :      0.0329 in-WC
Pressure Rating      :      1 in-WC
Series      :      ZD Series
Shape      :      Square
Temperature Rating      :      40 to 140 deg F
Timing Range      :      30 s, 10 s
Torque Rating      :      71 in-oz
VA Rating      :      8 VA
Voltage Rating      :      24 V
Width      :      10 in
  • Mechanical visual position indicator for damper status
  • Solid construction using extruded aluminum frame and blades
  • Parallel blade design for low leakage performance
  • Simple, easy-to-wire, two-wire installation
  • Reliable, strong, 24-volt spring-return motor
  • Fail-safe, normally open operation
  • Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is an 8 in. x 10 in. damper that has the motor on the 10 in. side
  • Damper can be installed in any orientation (mounting side can be on either the bottom or the side of the duct)
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/resideo_ZD10X10_Owners_User_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/resideo_ZD10X10_Specification_Sheet.pdf
