ELMDOR® FR-22X30 ELDFR 22X30
  1. pin-int

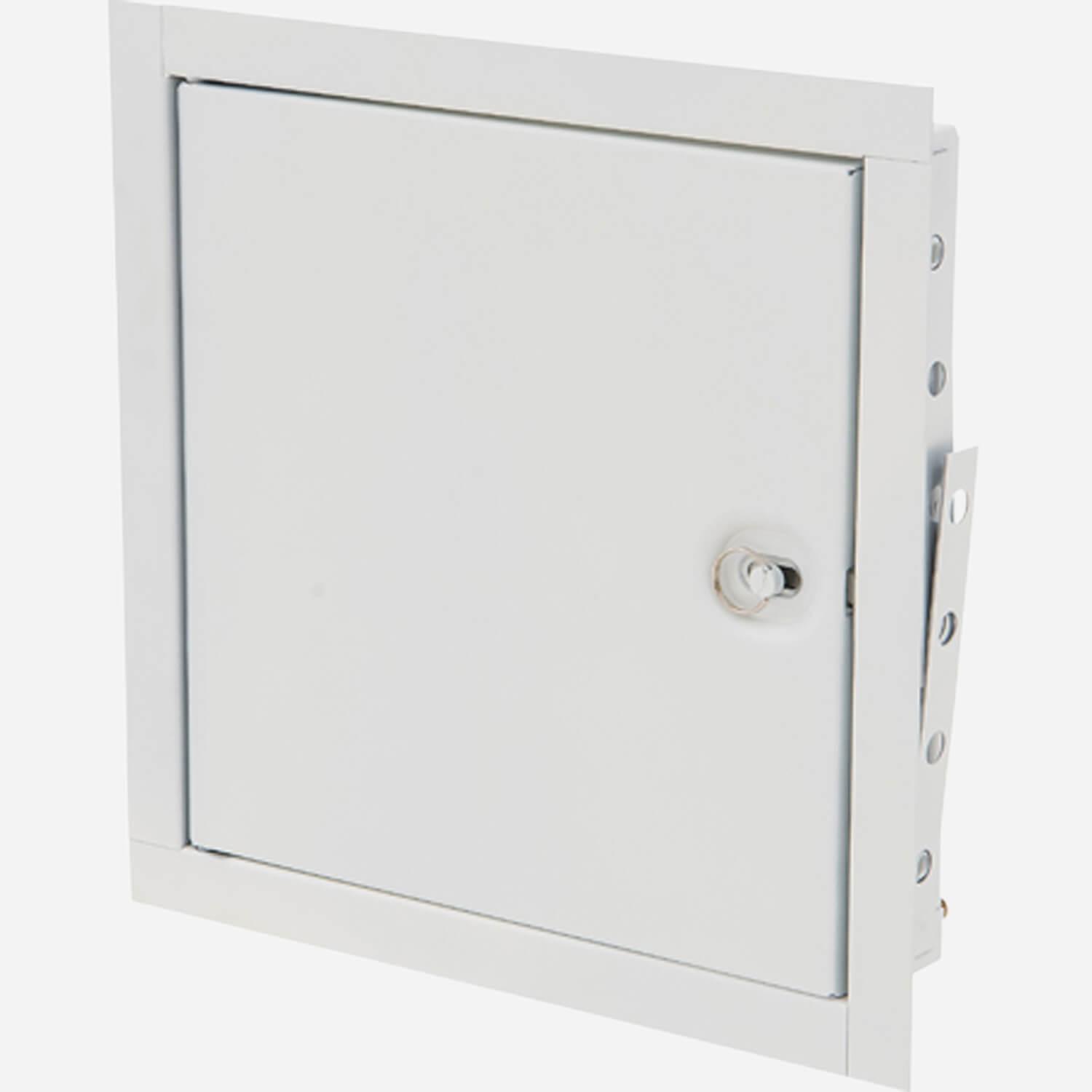

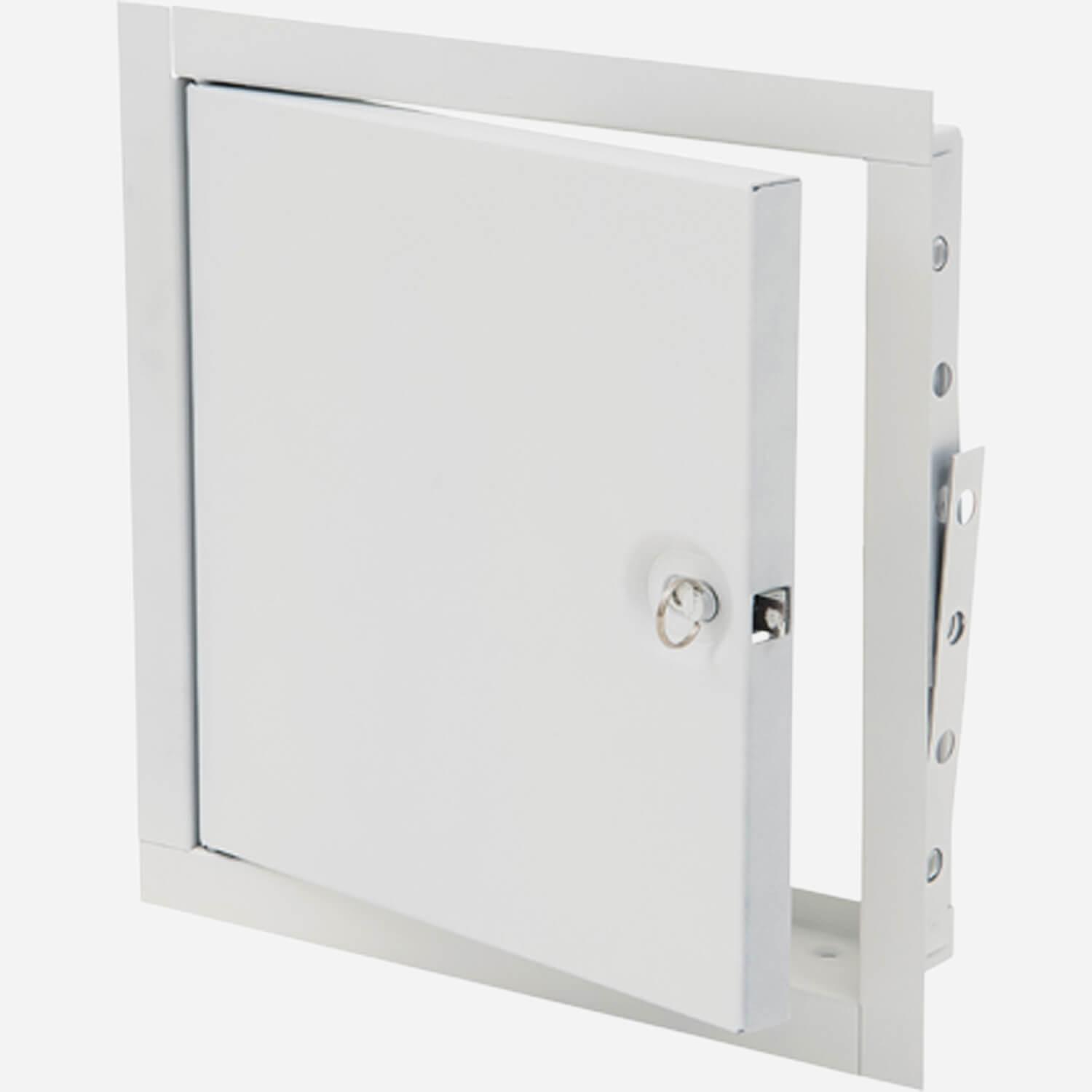

ELMDOR® FR Series FR-22X30 Fire-Rated Wall Access Door, 22 in W Door, 30 in H Door, Steel Door

ELMDOR® FR Series FR-22X30 Fire-Rated Wall Access Door, 22 in W Door, 30 in H Door, Steel Door

  • Manufacturer: Morris Group International
  • Brand Name: ELMDOR®
  • Part#: ELDFR 22X30
  • MPN: FR-22X30
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Access panel and frame shall be fabricated from 16 ga, galvannealed steel with a prime coat finish suitable for painting. Hinge shall be concealed type. Door shall have a heavy-duty spring to provide positive latching when closed and an interior latch release slide enabling the door to be opened from the inside. Exterior latch shall be recessed and operated using a ring attached to the sliding bolt.

ELMDOR® Fire-Rated Wall Access Door, Series: FR Series, 22 in Door Width, 30 in Door Height, 22-3/8 in Opening Width, 30-3/8 in Opening Height, 16 ga, Steel Door, Steel Frame, Concealed Hinge

Door Height      :      30 in
Door Material      :      Steel
Door Width      :      22 in
Frame Material      :      Steel
Gauge      :      16 ga
Hinge Type      :      Concealed
Opening Height      :      30-3/8 in
Opening Width      :      22-3/8 in
Series      :      FR Series
