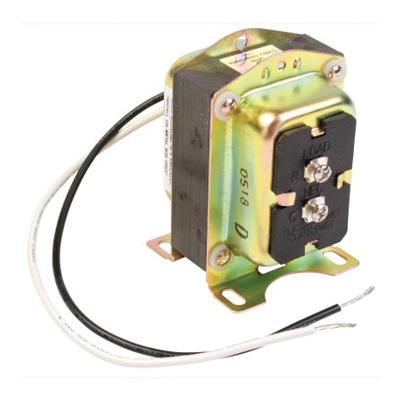

Honeywell Home AT120A1004 Transformer With 9 in Lead Wires, 120/208/240 VAC Primary, 27 VAC Secondary, 60 Hz
- Manufacturer: Resideo Technologies Inc
- Brand Name: Honeywell Home
- Part#: HNWAT120A1004/U
- MPN: AT120A1004
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Resideo 20 VA general-purpose transformers power 24 VAC circuits. Although typically used in heating/cooling control systems, they can be used in any application that doesn't exceed the load ratings.
Transformer, 120/208/240 VAC Primary, Secondary Voltage: 27 VAC, VA Rating: 20 VA, 60 Hz, Foot Mounting, 7/8 in Knockout, -20 to 105 deg F, 2-7/8 in H x 1-7/8 in W x 2-15/16 in D, Additional Information: (2) Screw Terminal, 24 VAC at 20 VA
| Additional Information | : | (2) Screw Terminal, 24 VAC at 20 VA |
| Dimensions | : | 2-7/8 in H x 1-7/8 in W x 2-15/16 in D |
| Frequency Rating | : | 60 Hz |
| Knockout Size | : | 7/8 in |
| Mounting Type | : | Foot |
| Primary Voltage | : | 120/208/240 VAC |
| Secondary Voltage | : | 27 VAC |
| Temperature Rating | : | -20 to 105 deg F |
| VA Rating | : | 20 VA |
- Provides color-coded leadwires for primary connections and screw terminals for secondary connections
- Includes fixed 1/4 in male quick-connects or color-coded leadwires for primary and secondary connections
- Identified class 2 not wet, class 3 wet
