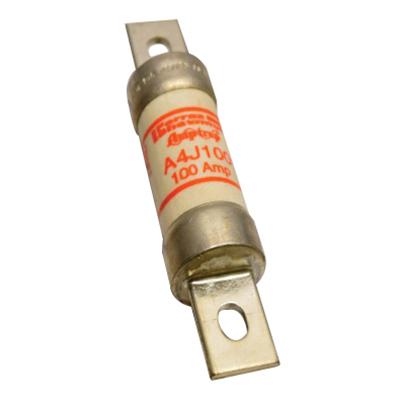

Ferraz Shawmut A4J Series A4J100 Fast Acting Fuse, 100 A, 600 VAC/300 VDC, 200 kA Interrupt, Class: J
- Manufacturer: Mersen
- Brand Name: Ferraz Shawmut
- Part#: FFMA4J100
- MPN: A4J100
- UPC: 782001960322
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
A4J class J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.
Ferraz Shawmut Fast Acting Fuse, Series: A4J Series, 600 VAC/300 VDC, 100 A, Class: J, 200 kA Interrupt, Blade Terminal, GMG Body, 4-1/2 in Length, 1-1/8 in Dia
| Amperage Rating | : | 100 A |
| Body Material | : | GMG |
| Class | : | J |
| Diameter | : | 1-1/8 in |
| Interrupt Rating | : | 200 kA |
| Length | : | 4-1/2 in |
| Series | : | A4J Series |
| Terminal Type | : | Blade |
| Voltage Rating | : | 600 VAC/300 VDC |
- High current limitation for low peak let-through current
- Unique dimensions prevent replacement by other fuse classes
- Fiberglass body provides dimensional stability in harsh industrial environments
- Easy to read imprint label for quick recognition and replacement
- DC ratings
