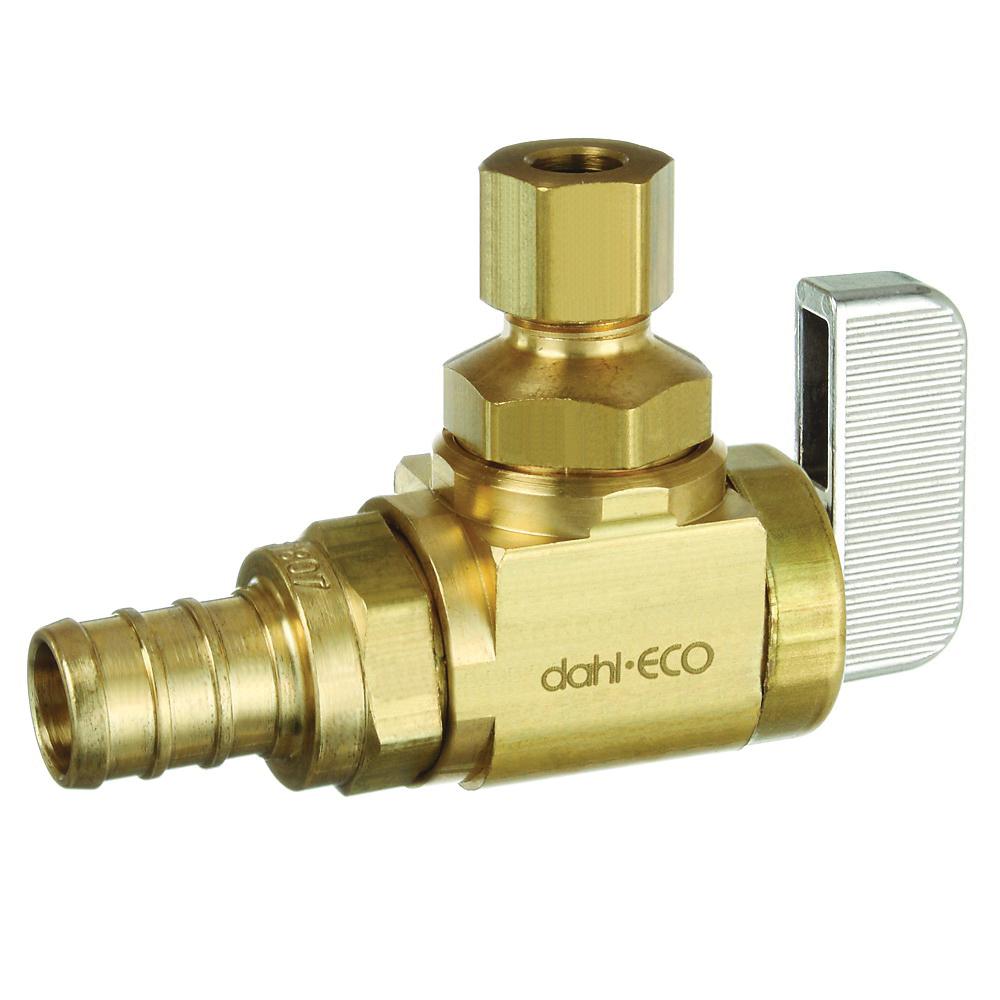

dahl 621-PX3-30 Supply Stop Valve, 1/2 x 1/4 in Nominal, PEX x Compression, Handle Actuator, 250 psi, Brass Body
- Manufacturer: Dahl Valve Limited
- Brand Name: dahl
- Part#: DAL621-PX3-30
- MPN: 621-PX3-30
- UPC: 773341904800
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
dahl valves and fittings are designed and manufactured in Canada and backed by our lifetime transferable warranty. Made with 100% North American materials, specifically with premium quality US lead-free brass, every dahl valve is tested for quality before leaving the plant. More than a valve, dahl offers a lifetime of reliability.
dahl Supply Stop Valve, 1/2 x 1/4 in Nominal, PEX x Compression Connection, 250 psi, Material Standard: ASTM F1807, Brass/PTFE Trim, EPDM/FKM/PTFE Softgoods, Brass Body, Zinc Handle, Handle Actuator, 1.8 Cv Flow Coefficient (Cv), Finish: Chrome-Plated, 250 deg F, 2.5 in L x 1.7 in W x 1.6 in H, Domestic/Import: Domestic, Additional Information: 2-1/2 in L Inlet to Outlet, 1.2 in Top to inlet Center, Angled Configuration, Lead-Free, PTFE Seal
| Actuator Type | : | Handle |
| Additional Information | : | 2-1/2 in L Inlet to Outlet, 1.2 in Top to inlet Center, Angled Configuration, Lead-Free, PTFE Seal |
| Body Material | : | Brass |
| Connection Type | : | PEX x Compression |
| Dimensions | : | 2.5 in L x 1.7 in W x 1.6 in H |
| Domestic/Import | : | Domestic |
| Finish | : | Chrome-Plated |
| Flow Coefficient (Cv) | : | 1.8 Cv |
| Handle Material | : | Zinc |
| Material Standard | : | ASTM F1807 |
| Nominal Size | : | 1/2 x 1/4 in |
| Pressure Rating | : | 250 psi |
| Softgoods Material | : | EPDM/FKM/PTFE |
| Temperature Rating | : | 250 deg F |
| Trim Material | : | Brass/PTFE |
- Every valve is tested before leaving our factory
- They may build them with something else, but they fix them with these
Specification Sheet
