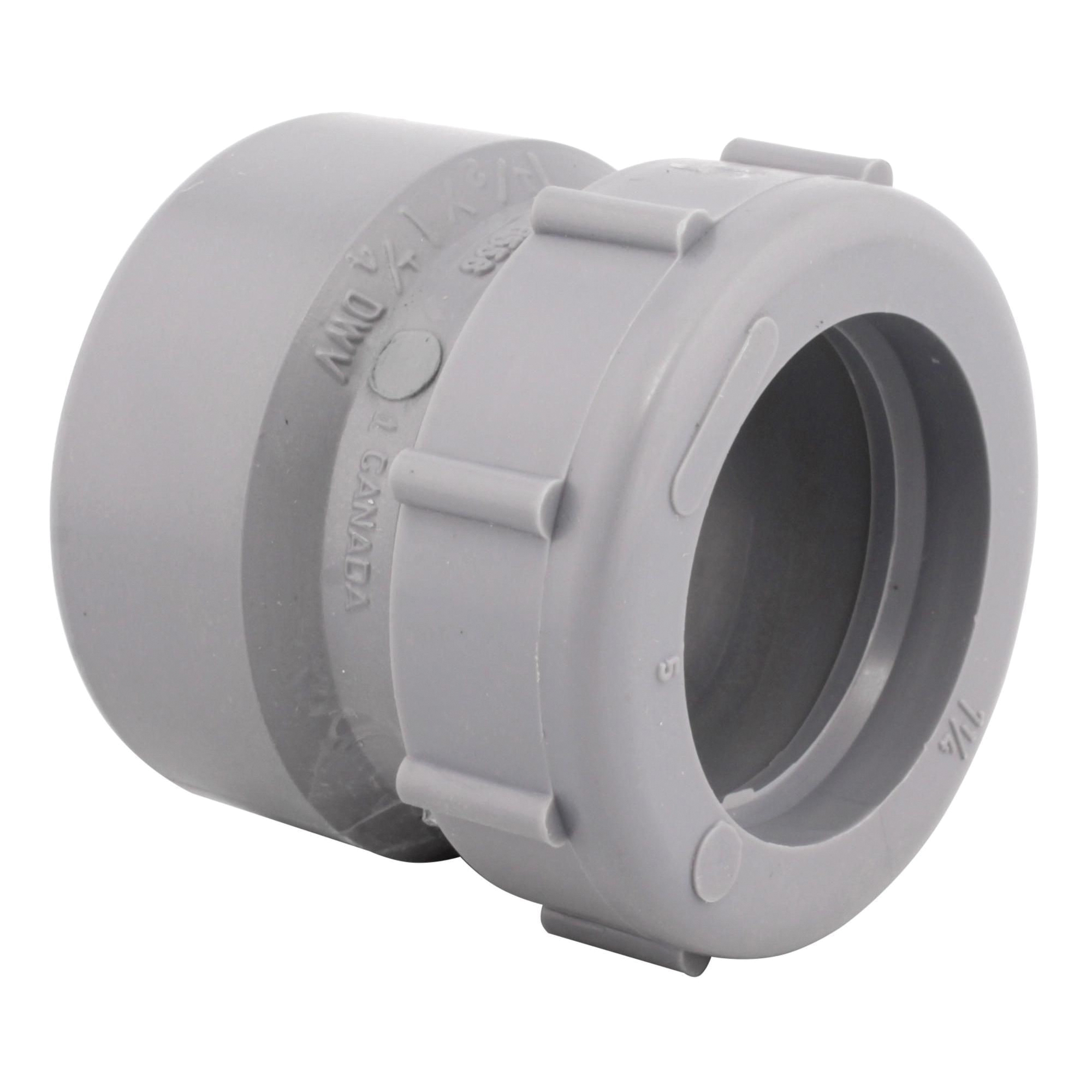

System XFR® 526556 Tail Piece Adapter, 1-1/2 x 1-1/4 in Nominal, Spigot x Slip Joint, PVC, Dark Gray, SCH 40, SCH STD
- Manufacturer: Aliaxis Group SA
- Brand Name: System XFR®
- Part#: XFR101-112-114
- MPN: 526556
- UPC: 622454299962
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The adapter allows for an easy connection between spigot sink outlets and our System XFR piping system.
System XFR® Tail Piece Adapter, 1-1/2 x 1-1/4 in Nominal, Spigot x Slip Joint Connection, SCH 40, SCH STD, PVC, Dark Gray
| Color | : | Dark Gray |
| Connection Type | : | Spigot x Slip Joint |
| Material | : | PVC |
| Nominal Size | : | 1-1/2 x 1-1/4 in |
| Schedule Rating | : | SCH 40, SCH STD |
- When tested to the CAN/ULC S102.2 Standard, System XFR achieved a Flame Spread Rating of not greater than 25 and a Smoke Developed Classification of not greater than 50
- Meets National and Provincial Building Codes for high buildings, air plenums, noncombustible construction and penetrating a rate fire separation
- High impact strength in cold temperatures, exceeding CSA requirements
- Improved flow rates
- Lower thermal conductivity can reduce or eliminate the need for insulation
