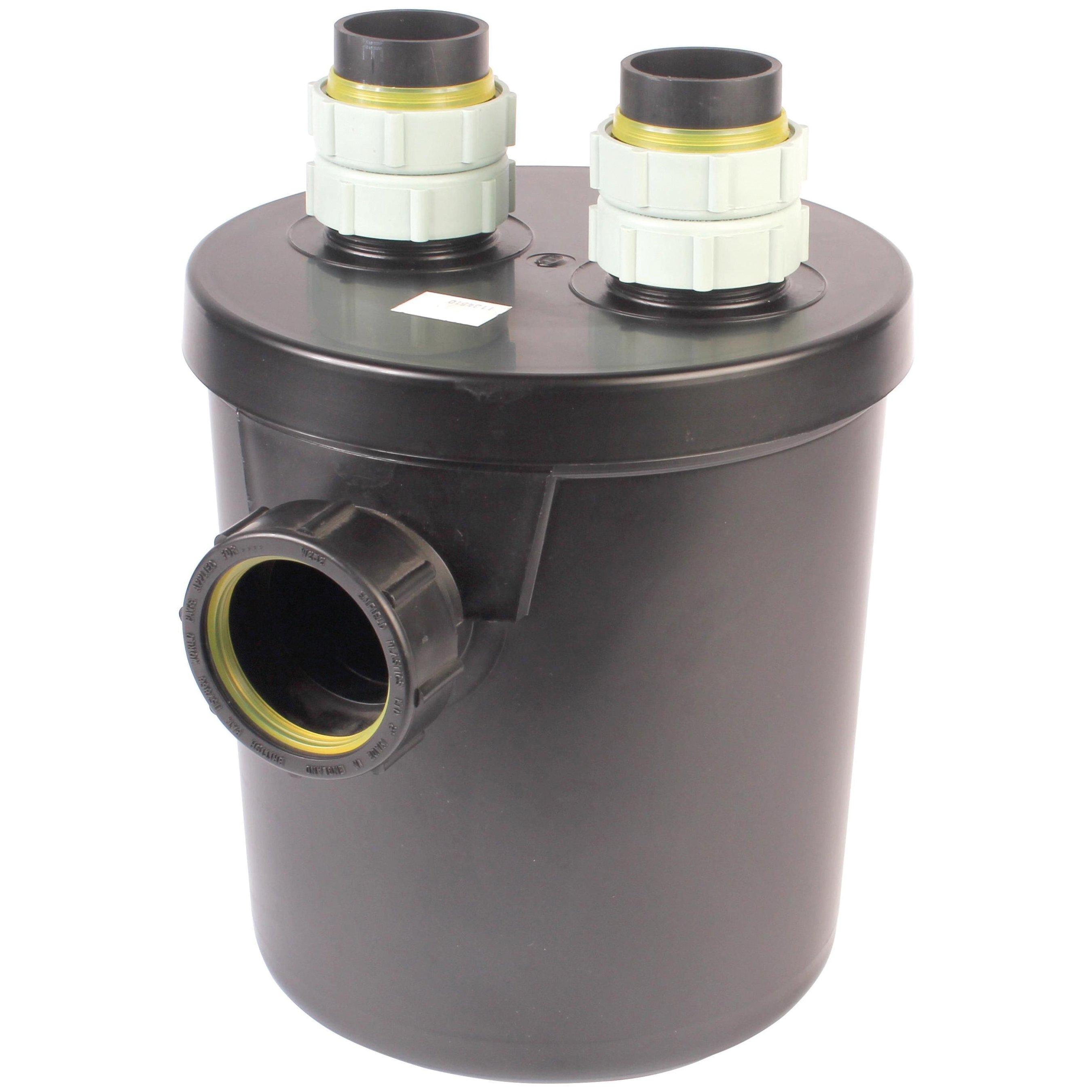

Labline® 156601 Dilution Trap, 1-1/2 in Nominal, Female Threaded x Mechanical Joint, Polypropylene, SCH 40
- Manufacturer: IPEX®
- Brand Name: Labline®
- Part#: ENFW601
- MPN: 156601
- UPC: 622454034440
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Labline acid waste systems feature a state-of-the-art mechanical joining system that uses no-heat Elastolive for high-integrity joints in seconds. Labline has displaced more expensive, difficult-to-install glass and metal systems and the need for fusing, caulking or welding of joints. Components are made from specially formulated polypropylene with an operating temperature range from -10 Degrees F to 212 Degrees F (-23 Degrees C to 100 Degrees C). The high-performance, mechanical-joint system is easy to install and disassemble. Ideal for modular systems and remodeling, it is designed with heavy-duty, all thermoplastic fittings that are reusable. These durable, all-plastic fittings allow for rapid installation and trouble-free service, even in difficult areas. An essential system accessory, the Labline Mechanical Joint Dilution Trap is available in 1-1/2" size with the option of a transparent base.
Labline® Dilution Trap, 1-1/2 in Nominal, Female Threaded x Mechanical Joint Connection, SCH 40, Material Standard: ASTM D4101, ASTM D635, ASTM F1412, Polypropylene, -10 to 212 deg F
| Connection Type | : | Female Threaded x Mechanical Joint |
| Material Standard | : | ASTM D4101, ASTM D635, ASTM F1412 |
| Material | : | Polypropylene |
| Nominal Size | : | 1-1/2 in |
| Schedule Rating | : | SCH 40 |
| Temperature Rating | : | -10 to 212 deg F |
- Dilution trap in 1-1/2" size
- For use with Labline acid waste systems
- Transparent base option
- High-performance mechanical-joint system
- Corrosion-resistant, all-plastic construction
- Easy to install, disassemble and reuse
- Ideal for modular systems and remodeling
- NSF listed
