MIFAB® MI-G-1 MIFMI-G-1
  1. pin-int

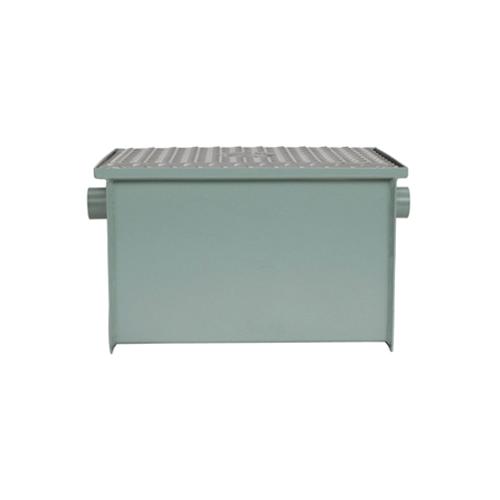

MIFAB® MI-G Series MI-G-1 Hydro Mechanical Grease Interceptor, 14 lb Capacity, 7 gpm, 12 in OAH, 13-3/4 in OAW, Steel

MIFAB® MI-G Series MI-G-1 Hydro Mechanical Grease Interceptor, 14 lb Capacity, 7 gpm, 12 in OAH, 13-3/4 in OAW, Steel

  • Manufacturer: MIFAB, Inc
  • Brand Name: MIFAB®
  • Part#: MIFMI-G-1
  • MPN: MI-G-1
  • UPC: 779897957185
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

MIFAB® MI-G Series sanitary, acid-resistant, powder epoxy-coated inside and outside fabricated 10 ga steel hydro mechanical grease interceptor. Unit shall include - removable baffle assembly and cross bar, deep seal trap covered by lid, sewer gas stopper, securing bolts, external vented flow control fitting, internal air relief by pass, feet underneath interceptor to elevate it 1/2 in off the-ground and steel acid-resistant, powder epoxy-coated, non-skid, rectangular gasketed lids. Interceptor shall be tested and certified to the PDI Standard PDI-G101 and ASME A112.14.3 and be so marked.

MIFAB® Hydro Mechanical Grease Interceptor, MI-G Series, 14 lb Capacity, 7 gpm Flow Rate, 12 in Overall Height, 13-3/4 in Overall Width, 17-3/4 in Overall Depth, Steel, Finish: Powder-Coated

Capacity      :      14 lb
Finish      :      Powder-Coated
Flow Rate      :      7 gpm
Material      :      Steel
Overall Depth      :      17-3/4 in
Overall Height      :      12 in
Overall Width      :      13-3/4 in
Series      :      MI-G Series
  • Single baffle system and internal parts are removable, this allows for easier maintenance because nothing is fixed and all parts can be removed for maximum access to the inside for cleaning
  • MIFAB® smaller interceptors have a single 5/8 in Dia bolt to secure the lid to the body
  • MIFAB® lids are easy to remove with the single bold design, allowing for regular cleaning of the interceptor
  • All MIFAB® interceptors are manufactured with powder-coated, electrostatically applied cathodic epoxy coating as a standard feature for no additional charge, this ensures maximum wearing and resistance to corrosive cleaning agents
  • Has 1/2 in feet on the bottom to elevate the interceptor from the wet ground to prevent corrosion
  • Manufactured with sewer gas stopper that is sealed on the top and both sides and extends into the static water level to eliminate entering the grease trap and kitchen area
  • MIFAB® deep seal trap is covered by the lid, this permits easier roughing-in for the contractor since the interceptor is perfect rectangle instead of a seven sided shape that requires extra work and time to install
