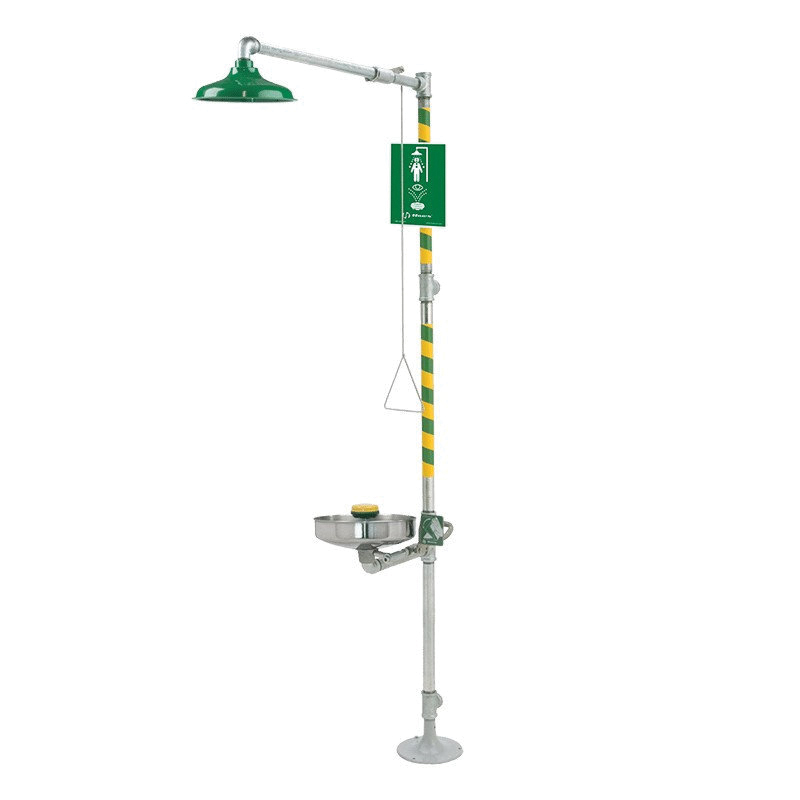

Haws® 8309WC Combination Shower and Eye/Face Wash, 82 to 96 in OAH, 1-1/4 in Pipe Connection, Round Bowl

Model 8309WC barrier-free combination shower and eye/face wash features the medically acclaimed AXION MSR eye/face wash head assembly. This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, natures ocular cavity drain. AXION MSR also offers a new hydrodynamic shower design that minimizes the strong physical pressure that drives the water to the outer rim of normal showerheads, making the distribution equal across the entire footprint of the flow. Better use of the water flowing through the shower makes it more effective while providing a more comfortable environment by breaking the streams of water into smaller individual droplets.

Haws® Combination Shower and Eye/Face Wash, AXION MSR Series, Round Bowl, 11 in Bowl Diameter, Stainless Steel Bowl, 1 Spray Heads, Pull Handle Shower Activation, ABS Shower Head, 3.7 gpm, 20 gpm Flow Rate, Pipe Connection Size: 1-1/4 in, NPT Pipe Connection, 1-1/4 in Pipe Diameter, Steel Pipe, Floor Mounting, 31 in Overall Length, 28-3/4 in Overall Width, 82 to 96 in Overall Height

• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• AXION MSR ABS plastic drench showerhead with flow control delivers dispersed flow for uniform drenching
• Barrier-free design offers a low profile loop assembly allowing for better wheel chair access as well as a longer pull rod for shower activation
• Also features a stainless steel push flag for eyewash activation, a round 11" (27.9 cm) stainless steel bowl, stainless steel pull rod for shower activation, and ball valves with stainless steel ball and stem for durability
• Pipe and fitting: 1-1/4" Schedule 40 hot-dipped galvanized steel. Supply and Waste: 1-1/4" NPT
• ANSI/ISEA Z358.1 tempering compliance

• Full Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Haws_8309WC_Full_Engineering_Drawing.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Haws_8309WC_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Haws_8309WC_Specification_Sheet.pdf
• Warranty Information https://assets.unilogcorp.com/267/ITEM/DOC/Haws_8309WC_Warranty.pdf
