ICM™ ICM102B ALP24-ICM102
  1. pin-int

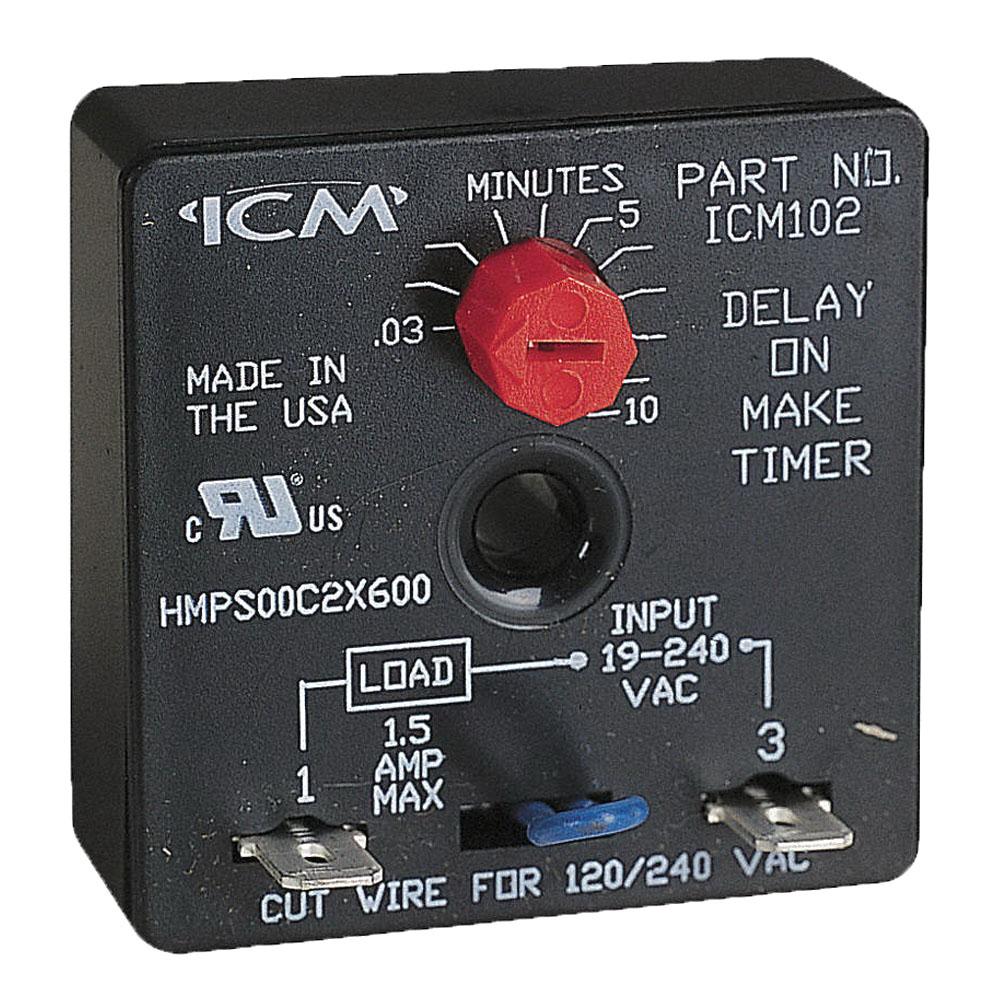

ICM™ ICM102B Time Delay Relay, 18 to 240 VAC, 1.5/15 A

ICM™ ICM102B Time Delay Relay, 18 to 240 VAC, 1.5/15 A

  • Manufacturer: ICM Controls
  • Brand Name: ICM™
  • Part#: ALP24-ICM102
  • MPN: ICM102B
  • UPC: 800442000343
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

ICM™ Time Delay Relay, 18 to 240 VAC, 1.5/15 A, 50/60 Hz, 2-Wire Hook-Up Connection, 1.8 to 600 s Timing, -40 to 167 deg F, 1-1/4 in H x 2 in W x 2 in D

Amperage Rating      :      1.5/15 A
Connection Type      :      2-Wire Hook-Up
Dimensions      :      1-1/4 in H x 2 in W x 2 in D
Frequency Rating      :      50/60 Hz
Temperature Rating      :      -40 to 167 deg F
Timing Range      :      1.8 to 600 s
Voltage Rating      :      18 to 240 VAC
  • Works with anticipator type thermostats
  • Knob adjustable from 0.03 - 10 min
  • One model replaces many in field
  • 2.5 V at 1 A output voltage drop
  • Higher 1.5 A power rating
  • Universal voltage operation
