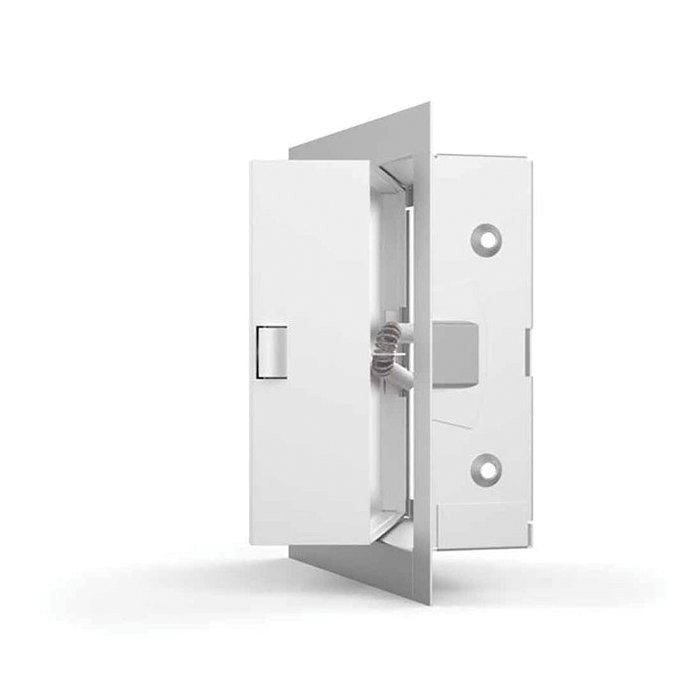

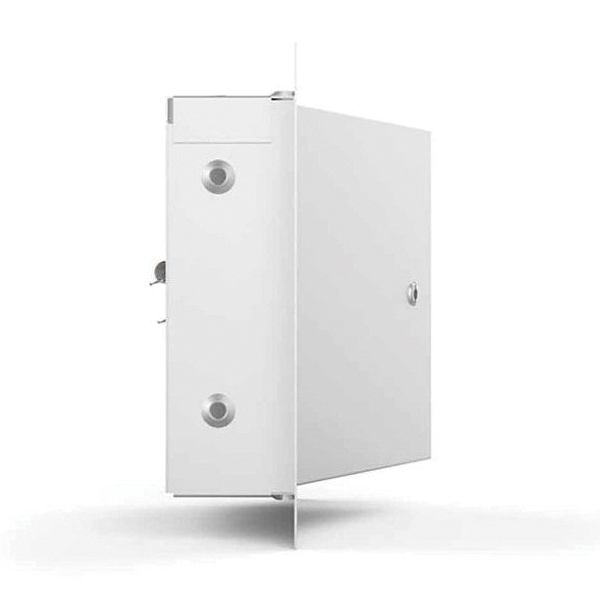

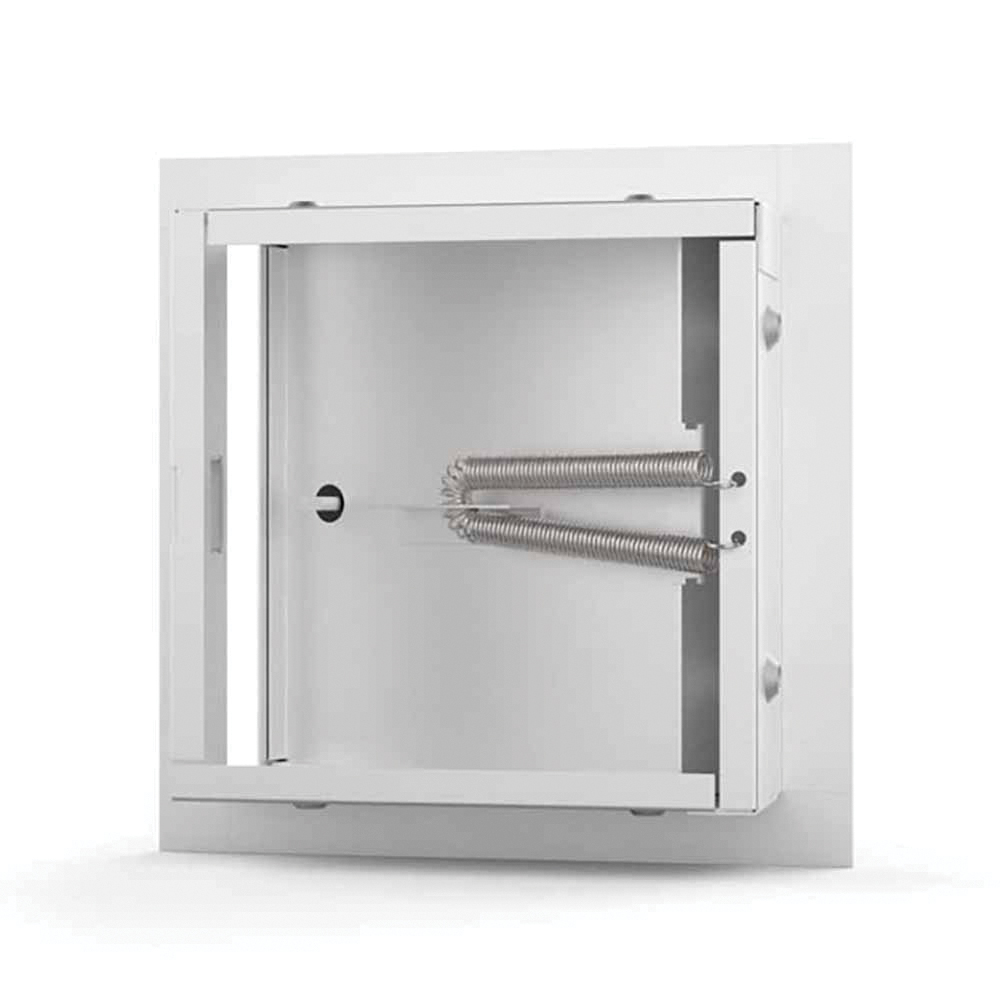

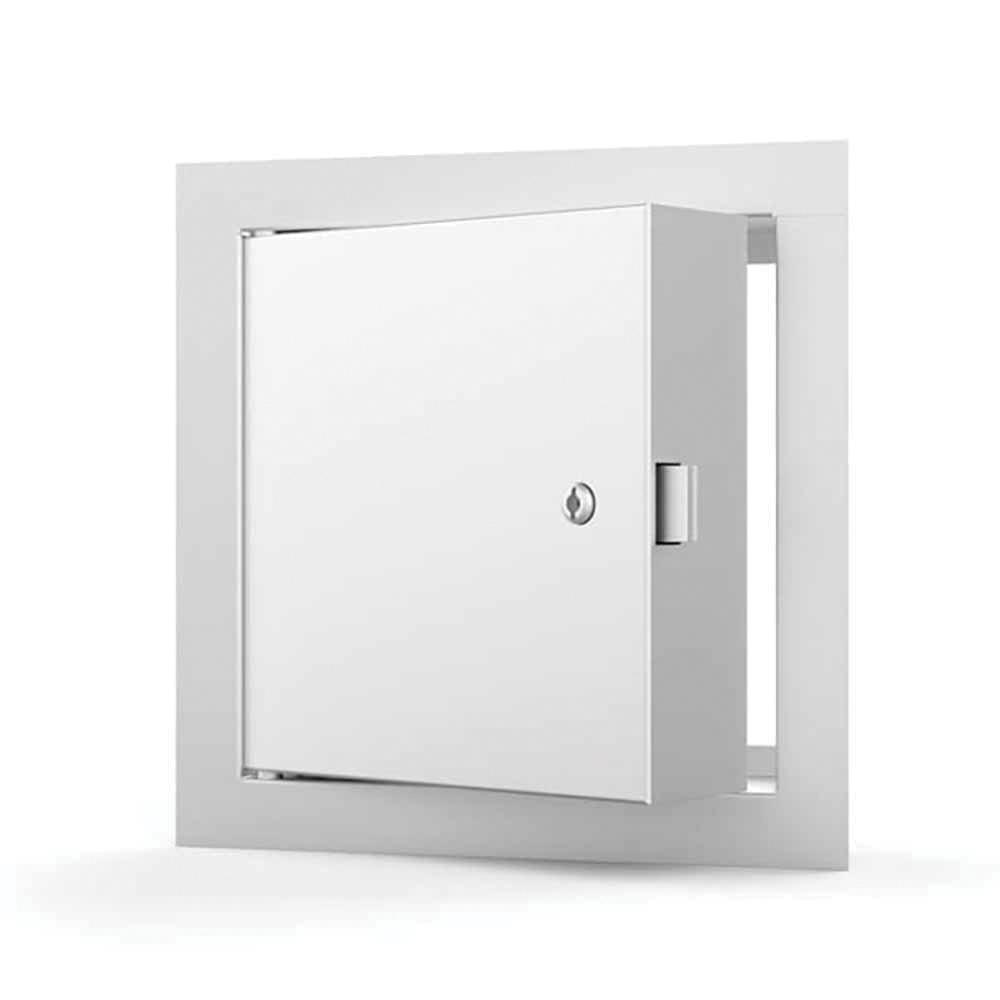

ACUDOR FW-5050 24X24 Fire-Rated Insulated Access Door, 2.56 in L, 24 in W, 24 in H, Steel, Alkyd Baked-On Enamel
- Manufacturer: Nelson Industrial Inc
- Brand Name: ACUDOR
- Part#: ADRFW-5050 24X24
- MPN: FW-5050 24X24
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The FW-5050 is an insulated, fire rated access door approved for use in walls and ceilings. For walls, this door has an Underwriters Laboratories (UL and ULC), 1-1/2 hour "B" label, with a maximum temperature rise of 250 degrees after 30 minutes. This door should be used in walls when temperature rise or heat transmission is a factor. For fire rated ceilings, this door has been approved by Warnock Hersey International for 3 hours (max. size to 24" x 36").
ACUDOR Fire-Rated Insulated Access Door, 2.56 in Length, 24 in Width, 24 in Height, Steel, Alkyd Baked-On Enamel, White, 3/8 in Wall Opening
| Color | : | White |
| Correct Item Group | : | Fasteners & Hardware |
| Finish | : | Alkyd Baked-On Enamel |
| Height | : | 24 in |
| Length | : | 2.56 in |
| Material | : | Steel |
| Wall Opening | : | 3/8 in |
| Width | : | 24 in |
- Insulated door panel
- Concealed hinge
- Self-closing
- Self-Latching
- Inside latch release
