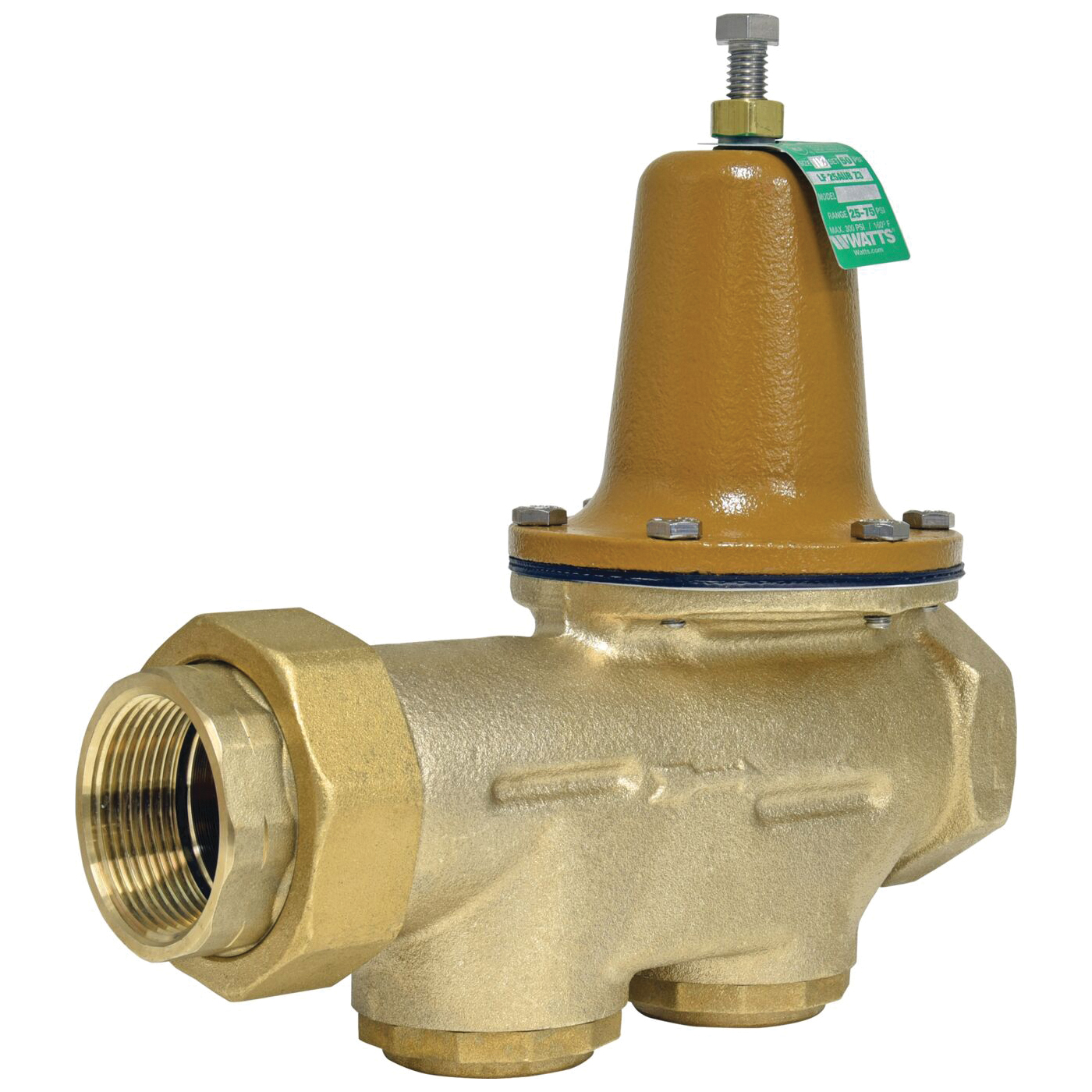

WATTS® LF25AUB-Z3 Series 0009431 Water Pressure Reducing Valve, 1-1/2 in Nominal, FNPT Connection, 300 psi Pressure

This 1-1/2 in lead-free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by FNPT outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 deg F (0.5 to 82 deg C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).

WATTS® Water Pressure Reducing Valve, LF25AUB-Z3 Series, 1-1/2 in Nominal, FNPT Connection, 300 psi, Water Media, 9 in Inlet to Outlet Length, Copper Silicone Alloy Body, Stainless Steel Seat, EPDM Disc, Stainless Steel Trim, EPDM/PTFE Softgoods, Lead-Free, 33 to 180 deg F, 9-1/2 in H

• Sealed spring cage with stainless steel cage screws
• Integral stainless steel strainer removable for cleaning
• Serviceable in line
• Bypass feature controls thermal expansion pressure
• High-temperature resistant reinforced diaphragm for hot water
• Replaceable seat module
• Reinforced EPDM with PTFE wetted surface diaphragm

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/WATTS_0009431_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/WATTS_0009431_Specification_Sheet.pdf
