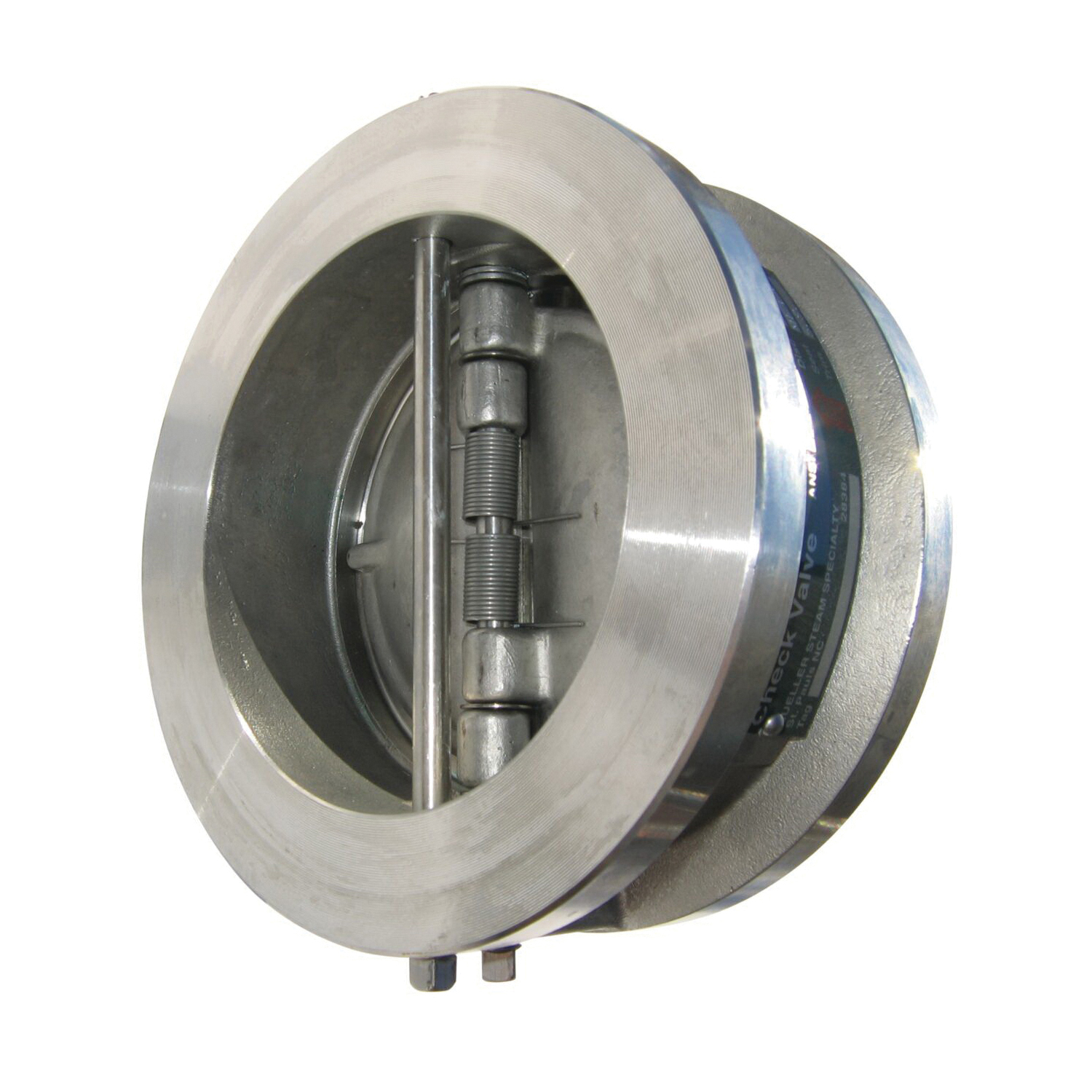

Mueller Steam Specialty™ SURE CHECK™ 72 Series 72-12 Wafer Double Disc Check Valve, 12 in, Flanged, Carbon Steel

Series 72 class 150 bronze, ductile iron, carbon steel or stainless steel sure check valves are designed for liquids and gases where flow reversal can cause surge and water hammer. Elastomer seats provide bubble tight shut-off.

Mueller Steam Specialty™ SURE CHECK™ Wafer Double Disc Check Valve, 72 Series, 12 in Nominal, Flanged Connection, 285 psi, Pressure Class: 150 lb, -20 to 100 deg F, Gas, Liquid Media, Carbon Steel Body, Buna-N Elastomer Seat, Carbon Steel Disc, 316 Stainless Steel Trim, 7-1/8 in H

• Dual shaft design allows interchangeability of shafts
• Compact design with short face-to-face dimensions minimizes space requirements
• Torsion springs close valve prior to flow reversal and provide long sealing capability
• Torsion springs exert a lifting motion on the discs, enabling the center heel to open first, this prevents excessive wear of the seat in this area and provides a consistent wear pattern and long sealing capability
• Downstream stop shaft stabilizes the discs at high-flow rates and prevents them from striking each other, which can cause premature wear, stress on the shaft and chattering
• Robust cast body is wafer-style, featuring compact face-to-face dimensions
• Designed to fit within ANSI bolt circles
