tpi 275 TPI275
  1. pin-int

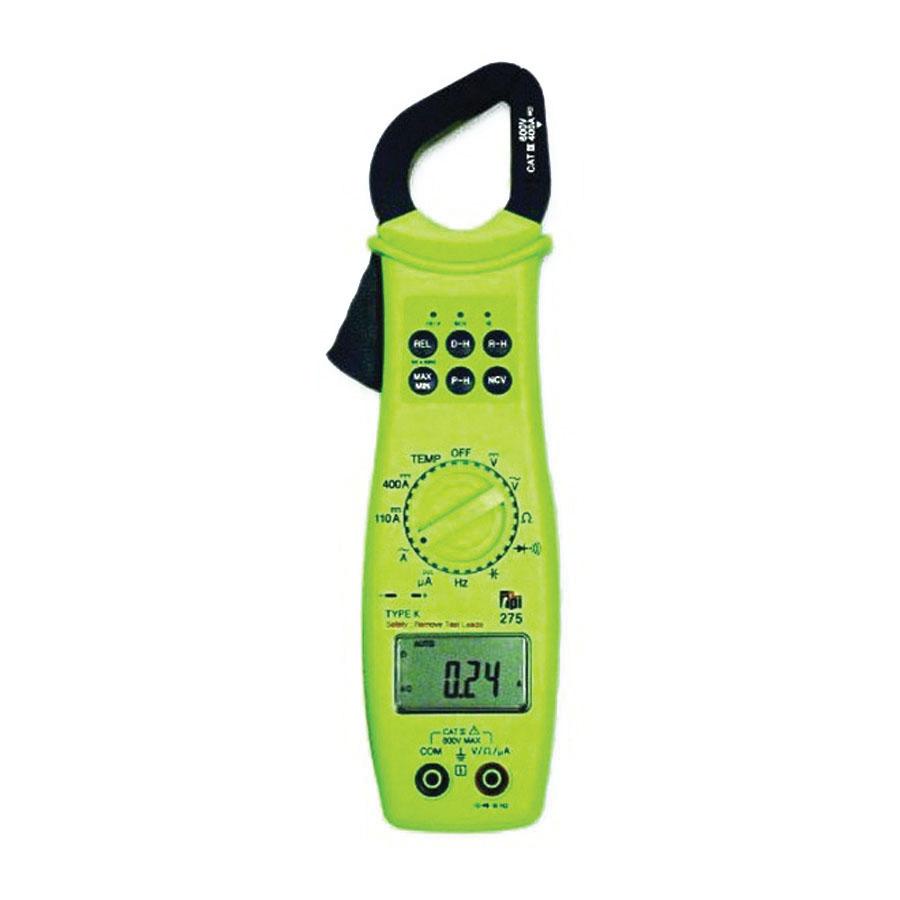

tpi 275 Clamp Tester With Digital Multimeter, 600 V, 400 A, 40 MOhm, 400 MHz

tpi 275 Clamp Tester With Digital Multimeter, 600 V, 400 A, 40 MOhm, 400 MHz

  • Manufacturer: TPI Corporation
  • Brand Name: tpi
  • Part#: TPI275
  • MPN: 275
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

tpi Clamp Tester, 600 V, 400 A, 40 MOhm Resistance, 4000, 400 MHz, 50 min AC Response, 0.03% AC Current Accuracy, 0.5%, 1.2% Voltage Accuracy, CAT III 600 V, 9 V, 32 to 104 deg F Operating, 40 uF, +/-1% Resistance Accuracy, 0.1 A, 0.1 mV, 0.1 Ohm, 0.001 nF Resolution, +/-2 deg F, 1%, 2% Temperature Accuracy, +/-1% Frequency Accuracy, 1000 deg F, 255 x 32.5 x 65 mm, Additional Information: Battery Power Source

AC Current Accuracy      :      0.03 %
AC Response      :      50 min
Additional Information      :      Battery Power Source
Amperage Rating      :      400 A
Capacitance      :      40 uF
Counts      :      4000
Dimensions      :      255 x 32.5 x 65 mm
Frequency Accuracy      :      +/-1 %
Frequency Rating      :      400 MHz
Operating Temperature      :      32 to 104 deg F
Power Supply      :      9 V
Resistance Accuracy      :      +/-1 %
Resistance      :      40 MOhm
Resolution      :      0.1 A, 0.1 mV, 0.1 Ohm, 0.001 nF
Safety Rating      :      CAT III 600 V
Temperature Accuracy      :      +/-2 deg F, 1%, 2%
Temperature Rating      :      1000 deg F
Voltage Accuracy      :      0.5%, 1.2%
Voltage Rating      :      600 V
  • Measure motor in-rush current and run current
  • Measure temperature differential with relative mode
  • Non-contact voltage feature can be used to immediately see if power is being supplied to the 24 VAC control circuit of thermostats
  • Frequency, min/max/record, data hold and peak hold
  • Up to 40000 uF to test run and start capacitors
  • 4000 count display with 41 segment analog bar graph
  • Auto and manual ranging
  • Low battery indicator
  • Over range indication ("OL")
  • Hi voltage indicator(>30V AC/DC)
  • Auto power off after 30 min
  • Separate battery/fuse compartment
  • Low ohm range (400 V)
