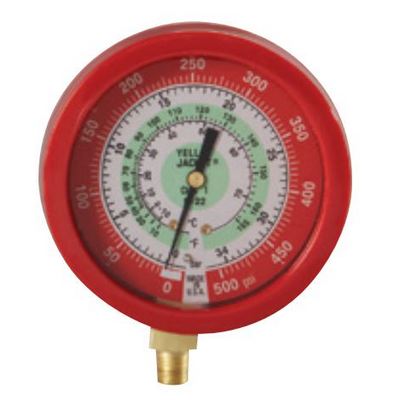

Yellow Jacket® 49193 Liquid-Filled Manifold Pressure Gauge, MNPT, 1/8 in Fitting, Red
- Manufacturer: Ritchie Engineering Company, Inc
- Brand Name: Yellow Jacket®
- Part#: YJT49193
- MPN: 49193
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Gauges are completely filled with glycerin for maximum protection from pulsation. Large 3-1/2" (90 mm) diameter gauge with refrigerants color-coded on the dials in bold numbers. Offset stem fits all major manifold brands.
Yellow Jacket® Liquid-Filled Manifold Pressure Gauge, Connection Type: MNPT, 1/8 in Fitting, 1 % Accuracy, R-744 Refrigerant, 0 to 3000 psi, 0 to 210 bar Measuring, Red, 3-1/2 in Dia, 0 to 122 deg F, Additional Information: bar, psi, deg C, deg F Units of Measure
| Accuracy | : | 1 % |
| Additional Information | : | bar, psi, deg C, deg F Units of Measure |
| Color | : | Red |
| Connection Type | : | MNPT |
| Dimensions | : | 3-1/2 in Dia |
| Fitting Size | : | 1/8 in |
| Measuring Range | : | 0 to 3000 psi, 0 to 210 bar |
| Refrigerant Type | : | R-744 |
| Temperature Rating | : | 0 to 122 deg F |
- Now with zero adjustment
- 1/8" NPT Male connection
- Temperature rating of 0deg to 122deg F (-18deg to 50deg C)
- Calibrated to 1% accuracy (Class 1)
