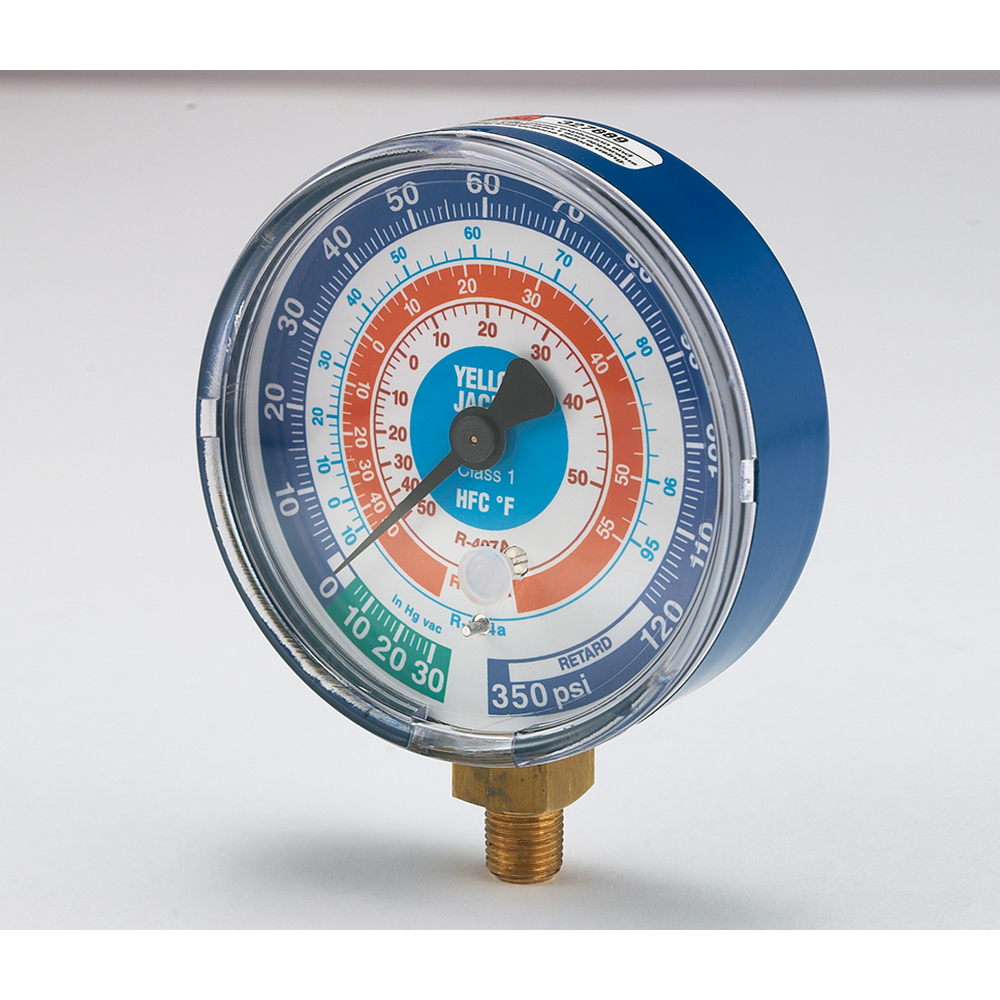

Yellow Jacket® 49110 Dry Manifold Compound Gauge, MNPT, 1/8 in Fitting, Steel, Blue/Black
- Manufacturer: Ritchie Engineering Company, Inc
- Brand Name: Yellow Jacket®
- Part#: YJT49110
- MPN: 49110
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
With 1% accuracy (Class 1) calibration. Large 3-1/8″ gauges are housed in a red or blue steel case with front recalibrator screw. High visibility colored temperature scales are easy to read through the full view polycarbonate crystal.
Yellow Jacket® Dry Manifold Compound Gauge, Connection Type: MNPT, 1/8 in Fitting, 1 % Accuracy, R-32, R-410A Refrigerant, Steel, Blue/Black, 3-1/8 in Dia, Additional Information: kPa, psi, deg C, deg F Units of Measure
| Accuracy | : | 1 % |
| Additional Information | : | kPa, psi, deg C, deg F Units of Measure |
| Color | : | Blue/Black |
| Connection Type | : | MNPT |
| Dimensions | : | 3-1/8 in Dia |
| Fitting Size | : | 1/8 in |
| Material | : | Steel |
| Refrigerant Type | : | R-32, R-410A |
- Flutterless™ technology with brass surge protector to minimize needle pulsation
- Brass gauge movement
- Copper alloy Bourdon tube
- 1/8″ NPT Male connection
- Calibrated to 1% accuracy
- Color-coded red for pressure and blue for compound
- Color-coded refrigerant types
