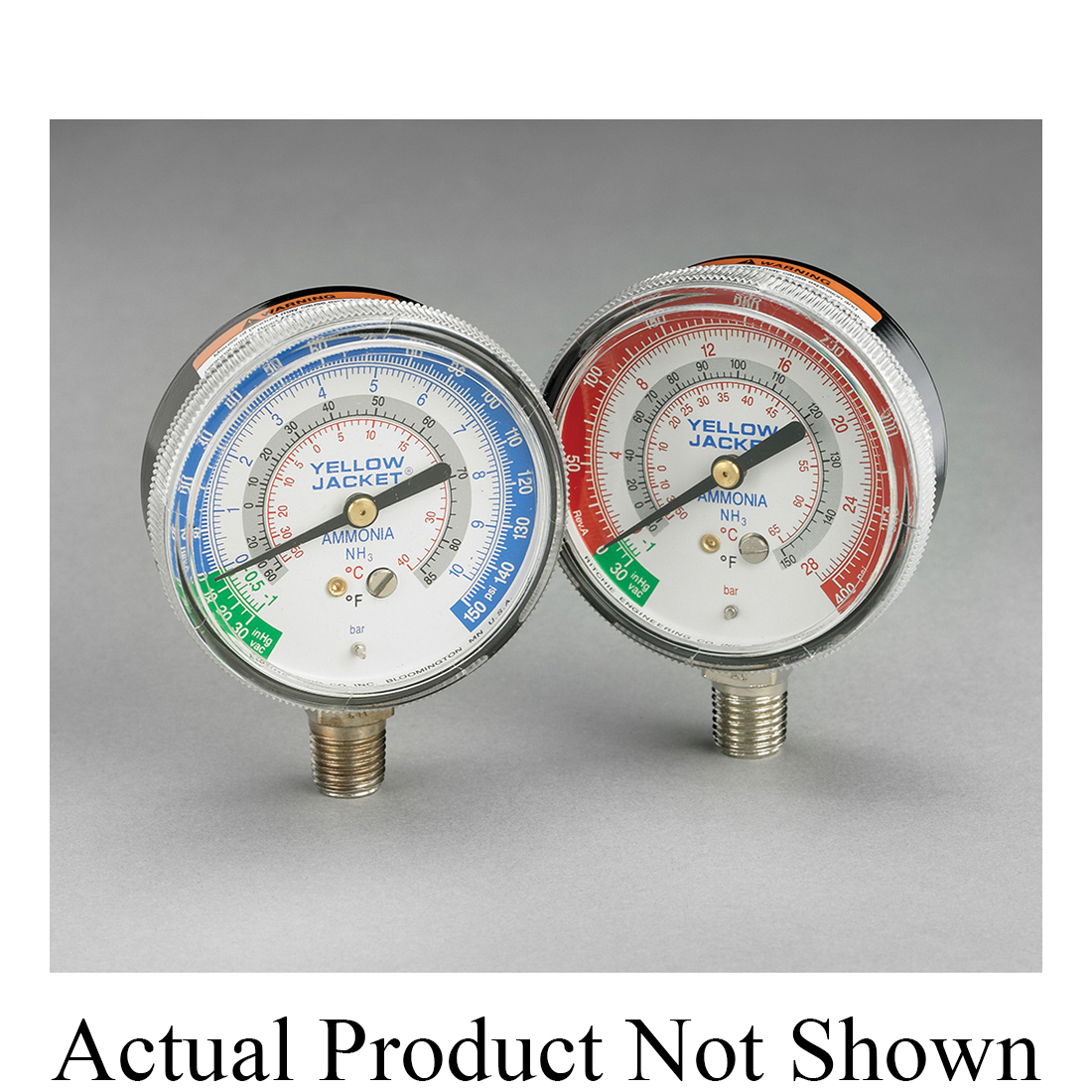

Yellow Jacket® 40201 High-Side Ammonia Gauge With Twist-On Polycarbonate Crystal, MNPT, 1/4 in Fitting, Steel, Black
- Manufacturer: Ritchie Engineering Company, Inc
- Brand Name: Yellow Jacket®
- Part#: YJT40201
- MPN: 40201
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Bourdon tube is made of 316 stainless. The dials show dual temperature and pressure scales. All gauges are equipped with restrictors to protect the gauges against pulsating pressure.
Yellow Jacket® High-Side Ammonia Gauge, Connection Type: MNPT, 1/4 in Fitting, 3-2-3 % Accuracy, 30 inHg, 0 to 400 psi, -0.1 to 28 bar Measuring, Steel, Black, 2-1/2 in Dia, Additional Information: inHg, bar, psi, deg C, deg F Units of Measure, Dual Scale
| Accuracy | : | 3-2-3 % |
| Additional Information | : | inHg, bar, psi, deg C, deg F Units of Measure, Dual Scale |
| Color | : | Black |
| Connection Type | : | MNPT |
| Dimensions | : | 2-1/2 in Dia |
| Fitting Size | : | 1/4 in |
| Material | : | Steel |
| Measuring Range | : | 30 inHg, 0 to 400 psi, -0.1 to 28 bar |
- 1/4 in NPT Male connection
- Steel sockets
- Black steel gauges
- Calibrated to 3-2-3% accuracy
