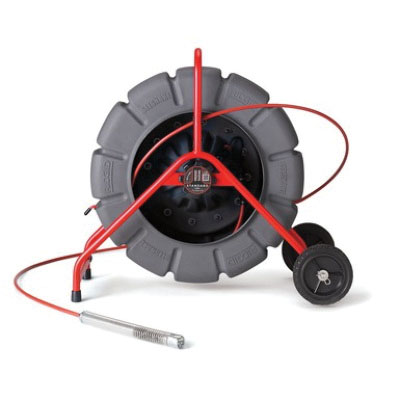

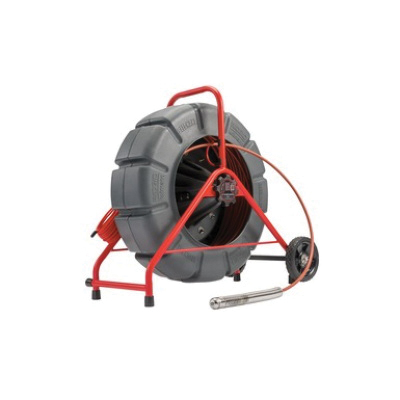

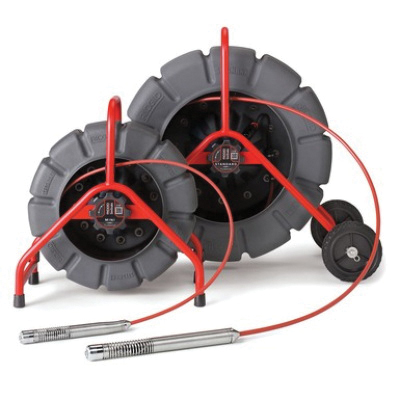

RIDGID® 63583 Standard Camera With TruSense®, 1.365 in Dia x 1.68 in L Camera Size

RIDGID® 63583 Standard Camera With TruSense®, 1.365 in Dia x 1.68 in L Camera Size

  • Manufacturer: Emerson Electric Co
  • Brand Name: RIDGID®
  • Part#: RIG63583
  • MPN: 63583
  • UPC: 095691635839
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Down pipe visibility vastly improved with High Dynamic Range (HDR) giving more clearly defined detail of pipe characteristics. Rugged, high-intensity LEDs for exceptional viewing and long life. Self-leveling camera head keeps the image upright (certain models) Powerful FleXmitter® sonde has long range and preserves the camera's ability to make turns. High Dynamic Range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions TiltSense displays the camera's pitch in a pipe on a connected SeeSnake CSx series monitor.

RIDGID® Standard Camera, 325 ft Cable Reach, 1.365 in Dia x 1.68 in L Camera, 656 x 492 pixel Video Output, 656 x 492 pixel Resolution, 512 Hz, -4 to 104 deg F Operating Temperature, Dark Gray, 30 in L x 32 in W x 32 in H

Cable Reach      :      325 ft
Camera Size      :      1.365 in Dia x 1.68 in L
Color      :      Dark Gray
Dimensions      :      30 in L x 32 in W x 32 in H
Frequency Rating      :      512 Hz
Operating Temperature      :      -4 to 104 deg F
Resolution      :      656 x 492 pixel
Video Output      :      656 x 492 pixel
  • With TruSense, advanced sensors on the self-leveling camera head convey valuable information about the in-pipe environment
  • TiltSense, the on-camera inclinometer provides the camera's degree of tilt and displays it on a SeeSnake CSx series Wi-Fi enabled monitor
  • High Dynamic Range (HDR) image sensor expands the camera's dynamic range, reducing blown-out areas and sections of the pipe that are too dark to see, offering superior clarity and detail
  • Powerful FleXmitter® sonde has a long range and preserves the camera's ability to make turns
  • Line Capacity: 2 in - 12 in (5-30cm)
  • Maximum Run: 325' (99m)
  • Sonde: 512 Hz
  • Weight (without monitor): 53 lbs, (19.5 kg)
  • Reel Frame Diameter: 32 in (81 cm)
  • Camera Diameter: 1.365 in (35 mm)
  • Camera Length: 1.68 in (42 mm)
  • Push Cable Diameter: .44 in (11 mm)
  • Operating Temperature: -4 deg to 104 deg F (-20 deg to 40 deg C)
  • Waterproof Depth: 330' (100 m)
  • Video Resolution: 656(H) x 492(V)
