RIDGID® 72963 RIG72963
  1. pin-int

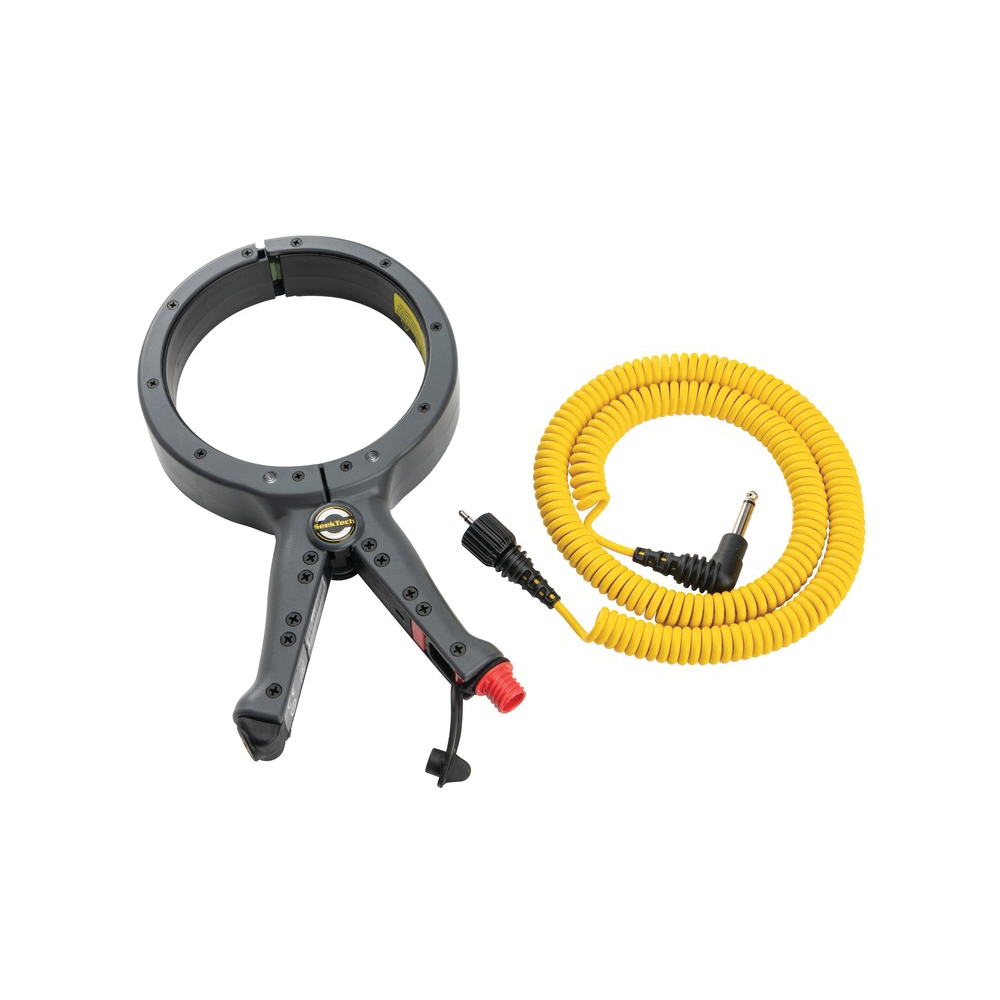

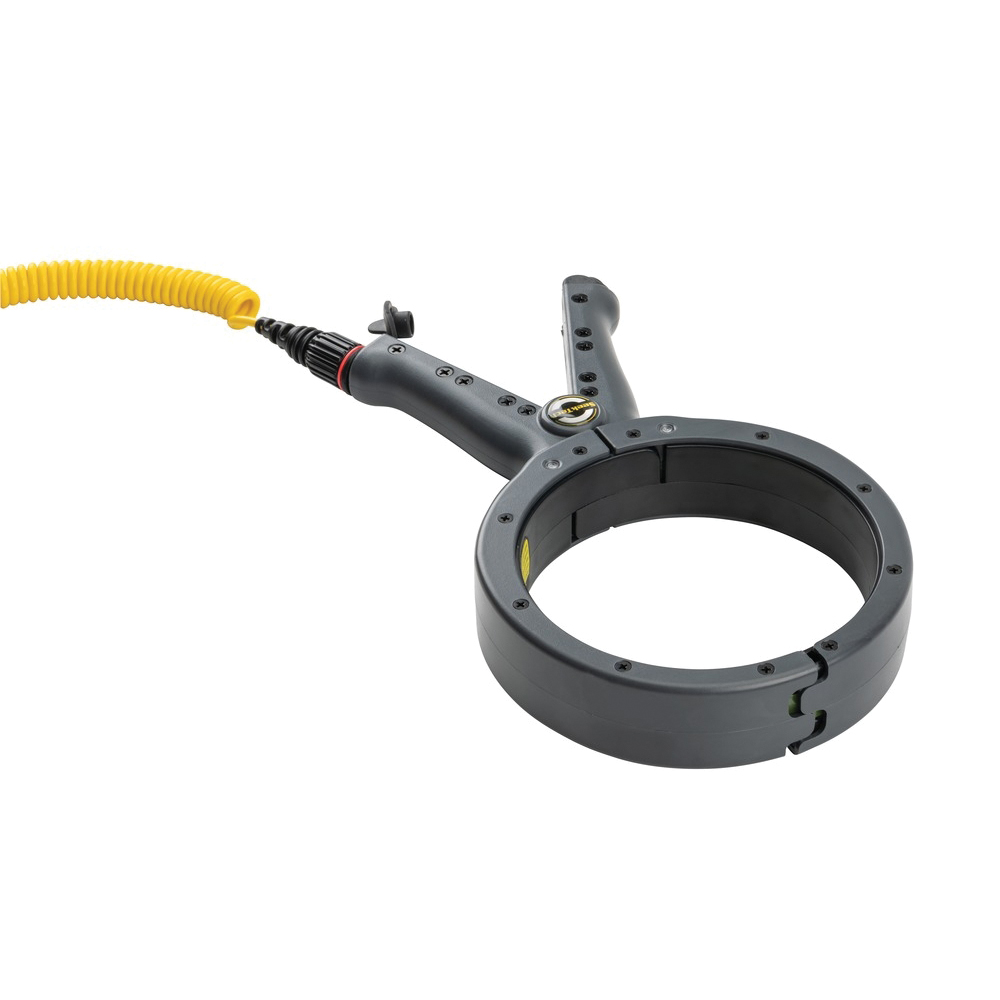

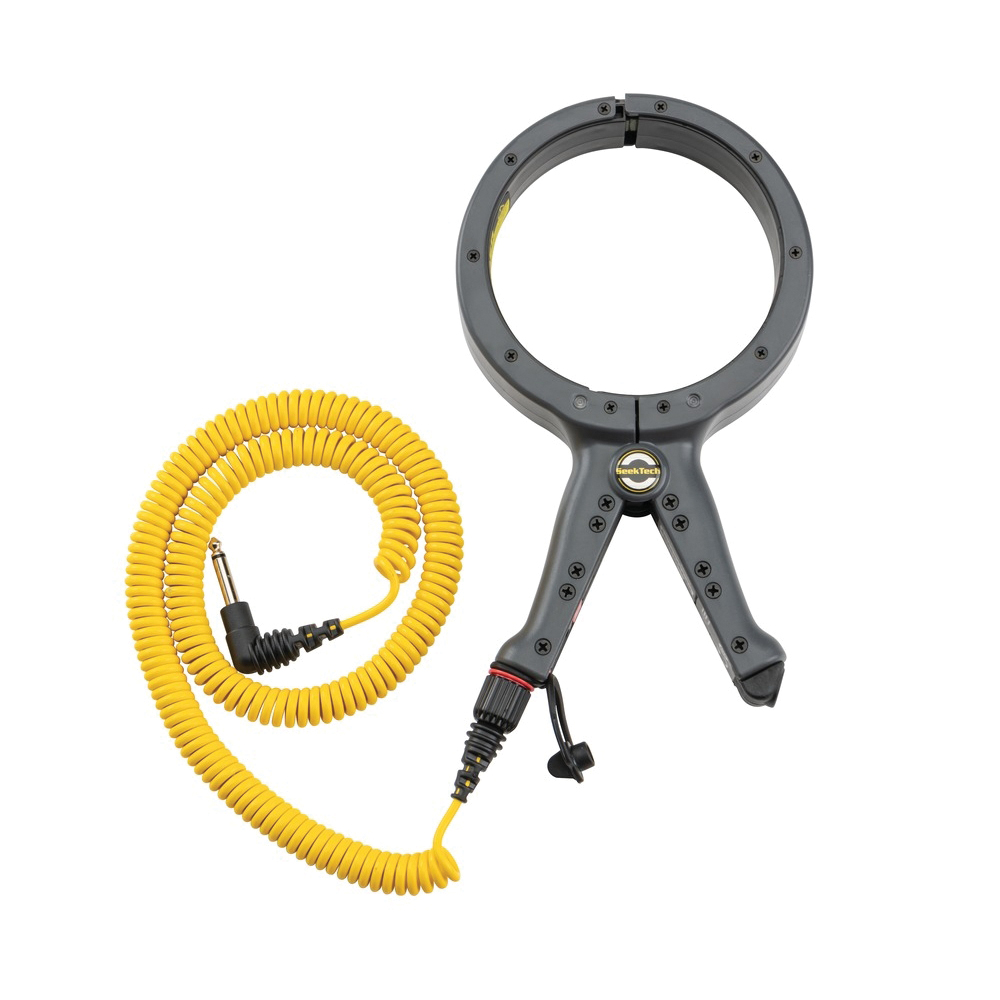

RIDGID® SeekTech® 72963 Inductive Signal Clamp, Plastic, Gray

RIDGID® SeekTech® 72963 Inductive Signal Clamp, Plastic, Gray

  • Manufacturer: Emerson Electric Co
  • Brand Name: RIDGID®
  • Part#: RIG72963
  • MPN: 72963
  • UPC: 095691729637
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

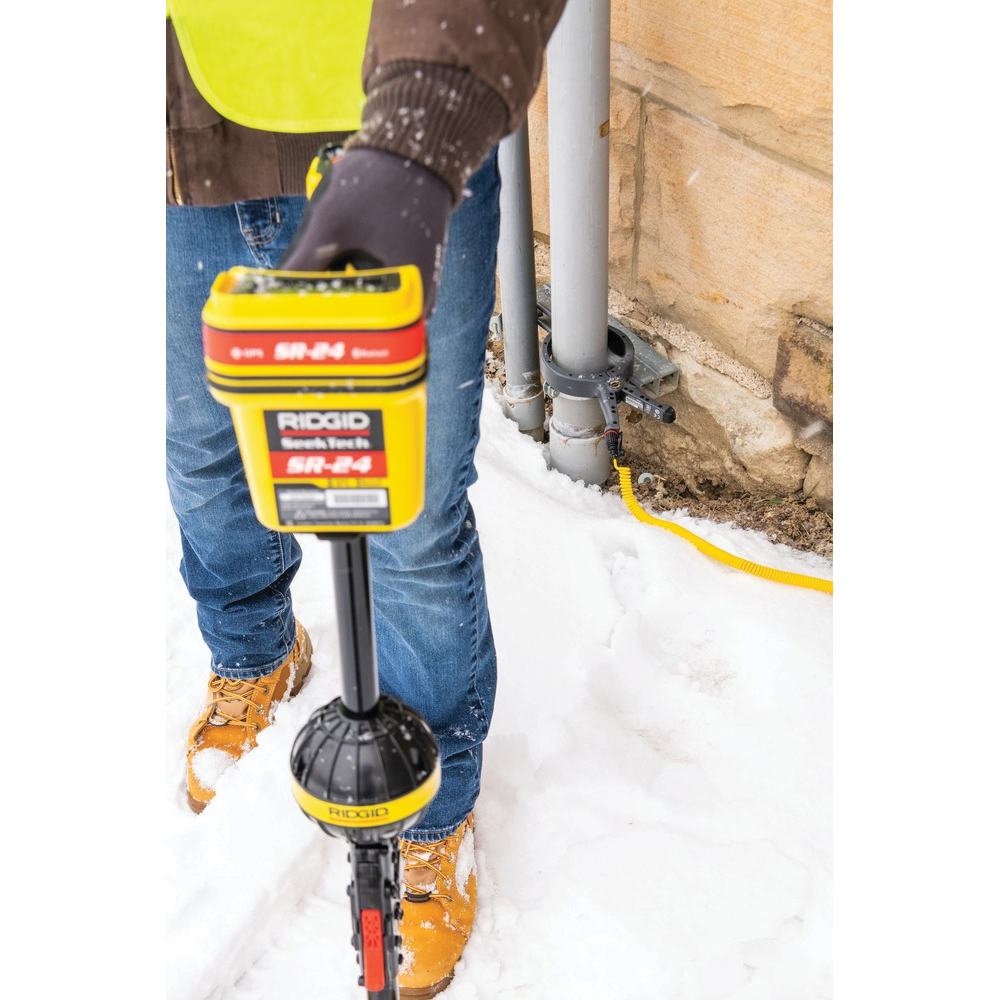

The RIDGID SeekTech Inductive Clamp allows users to apply a signal to a cable or pipe when direct connection is not possible. Compatible with all RIDGID® transmitters.

RIDGID® Inductive Signal Clamp, 8 to 262 kHz, Plastic, Gray, -40 to 131 deg F Operating Temperature, 4.7 in ID Diameter, 10.4 in Length, 5.8 in Width, 1-1/2 in Thickness, Specifications: 2-1/2 ft Cord, For Use With: SeekTech® ST-305, ST-305R, ST-33Q+ and ST-510 Line Transmitters

Battery Included      :      No
Capacity Max      :      4.7 IN / 119.38 MM
Capacity Min      :      1 IN / 25.4 MM
Color      :      Gray
Cord Length      :      2.5 FT / 0.762 MT
Diameter      :      4.7 in ID
Frequency Rating      :      8 to 262 kHz
Handle Type      :      Lever
Height      :      10.4 IN / 264.16 MM
Horsepower      :      10
Length      :      10.4 in
Material      :      Plastic
Maximum Operating Temperature      :      131 F / 55 C
Minimum Operating Temperature      :      -40 F / -40 C
Number of Handles      :      2
Operating Temperature      :      -40 to 131 deg F
Power      :      None
Shape      :      Round
Specifications      :      2-1/2 ft Cord
Suitable For Use With      :      SeekTech® ST-305, ST-305R, ST-33Q+ and ST-510 Line Transmitters
Thickness      :      1-1/2 in
Type      :      None
Width      :      5.8 in
  • Induces a signal onto a cable or pipe less than 119 mm (4.7 in) in diameter
  • Compatible with all RIDGID SeekTech line transmitters, including the ST-305, ST-305R, ST-33Q+, and ST-510
  • Additionally compatible with any comparable line transmitter which has a 10 watt or less maximum output power if frequency is under 45 kHz, and a 1 watt maximum if above 45 kHz
  • Can be used with frequencies from 8 kHz to 262 kHz
  • Removable and easy to store coiled cord
  • Ergonomic handle for easy opening and closing
  • Convenient pull tab for opening and closing in tight spaces
