tpi 287 Digital Clamp With Bluetooth Output, 750/1000 V, 1000 A AC/1100 A DC, 60M Ohm, 6 MHz

The slim design 287 is a hand-held, auto ranging clamp-on DMM with Bluetooth output for use with the TPI View app. Backlit dual display, True RMS response, Frequency with Duty Cycle, Min/Max/Avg, Temperature, Inrush Current measurement, Capacitance, DC microamps, and Non-Contact Voltage detection are just a few of the features of the 287. The 287 can also calculate wattage, show phase rotation, and display voltage and amperage unbalance. The TPI View app can be used in conjunction with the 287 to store measurements to jobs, create and email test reports, view live readings from a safe distance, or print measurements to the optional A711BT printer.

tpi Digital Clamp, 750/1000 V, 1000 A AC/1100 A DC, 60M Ohm Resistance, 6000, 6 MHz, LCD with Backlight Display, 32 to 113 deg F Operating Temperature, 80% Non-Condensing Humidity Rating, -4 to 140 deg F, 9.9 x 2.5 x 1.4 in, Additional Information: 9 V Alkaline Battery, 90 hr Battery Life

• True RMS for accurate voltage and amperage measurements
• In-Rush Current measurement to capture motor start up current
• Non-Contact Voltage detection through the jaw
• Measure Active Power, Reactive Power, Apparent Power, and DC Power
• AC Voltage and AC Amperage Unbalance Test
• Phase Rotation
• Bluetooth LE communication

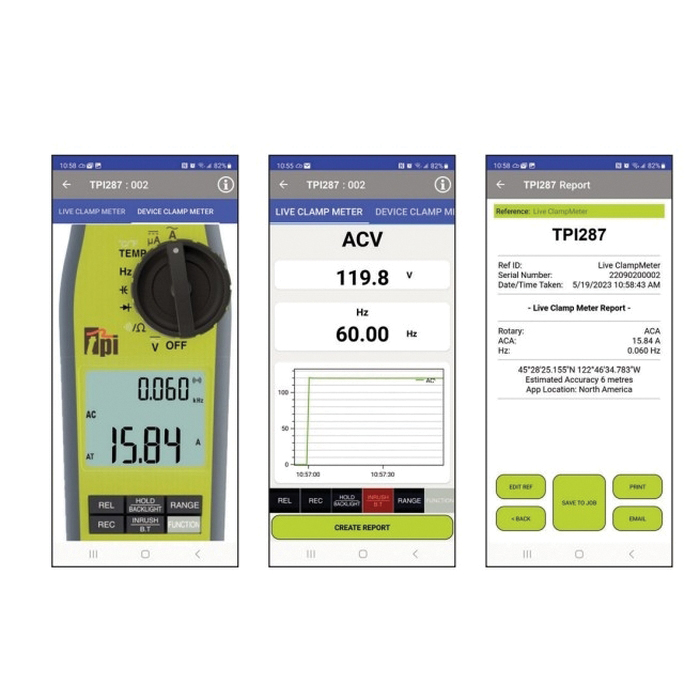

• Use with TPI View app to display live readings, save measurements, create and email reports with GPS tagged date and time
• CATIV 600V rated for safety
