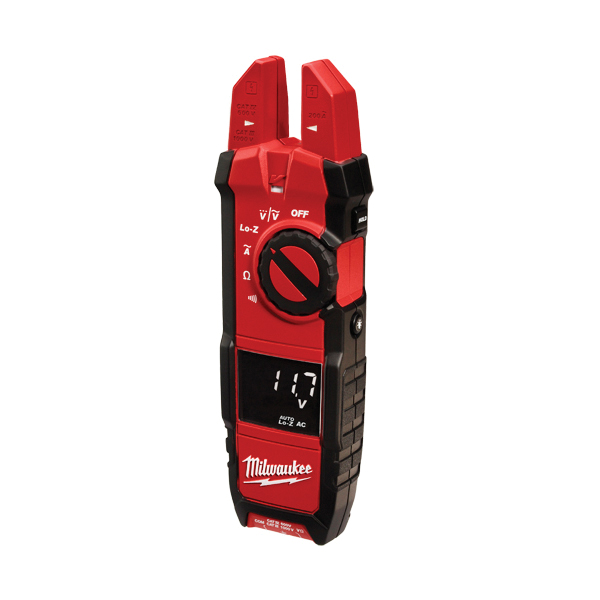

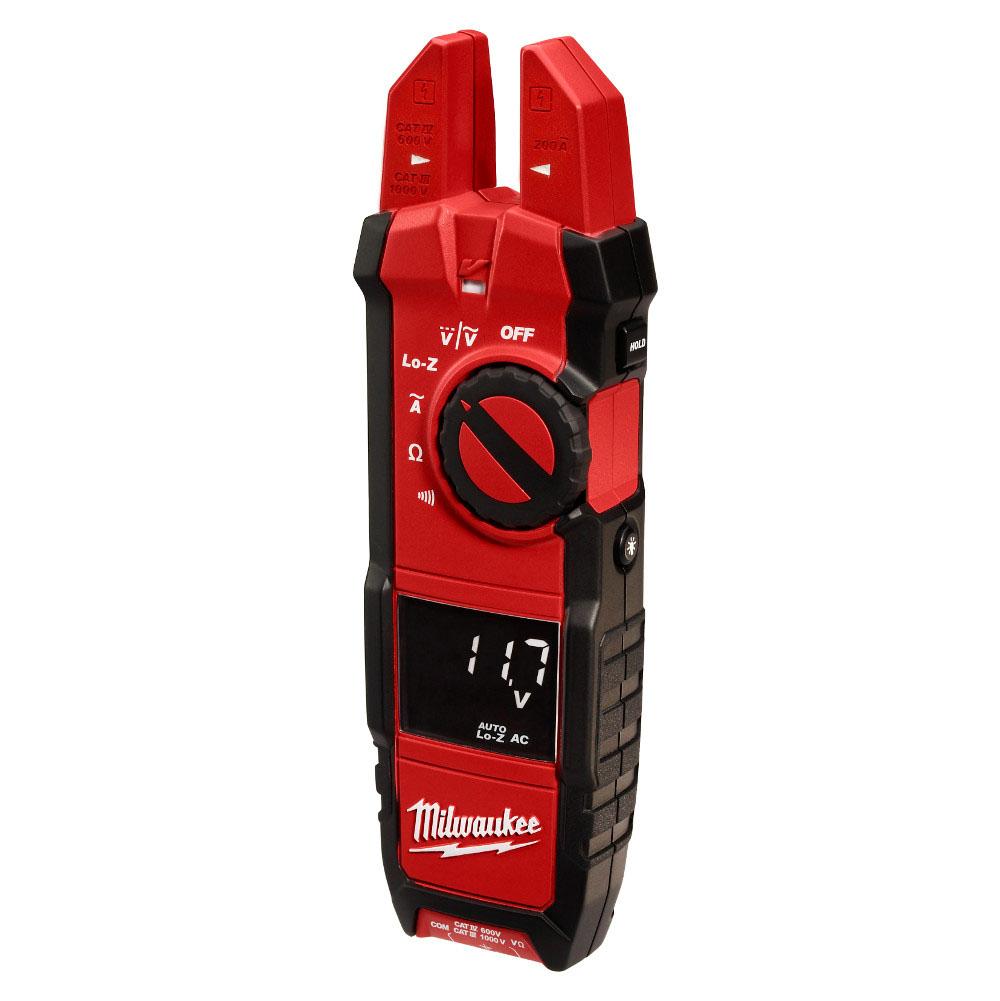

Milwaukee® 2205-20 Fork Meter, 1000 V, 200 A, 40 MOhm, 0.63 in Jaw, White on Black LCD Display

Milwaukee® 2205-20 Fork Meter, 1000 V, 200 A, 40 MOhm, 0.63 in Jaw, White on Black LCD Display

  • Manufacturer: Milwaukee Tool
  • Brand Name: Milwaukee®
  • Part#: MWK2205-20
  • MPN: 2205-20
  • UPC: 045242173730
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The Milwaukee® fork meter is a heavy-duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2205-20 is four tools in one providing current measurement, voltage measurement, voltage detection and task lighting. Additionally, the new tool provides a wide 0.63 in fork opening, high 200 A current range and a high contrast white-on-black display.

Milwaukee® Fork Meter, 1000 V, 200 A, 40 MOhm Resistance, Jaw Capacity: 0.63 in, White on Black LCD Display, Cat IV 600 V/Cat III 1000 V Safety Rating, 8 in L

Amperage Rating      :      200 A
Dimensions      :      8 in L
Display Type      :      White on Black LCD
Jaw Capacity      :      0.63 in
Resistance      :      40 MOhm
Safety Rating      :      Cat IV 600 V/Cat III 1000 V
Voltage Rating      :      1000 V
  • Measures up to 200 A, wide 0.63 in jaw opening
  • Wide voltage range to 1000 VAC/VDC
  • True-RMS for accurate measurement in all applications
  • Lo-z measurement to eliminate ghost voltage
  • Built-in voltage detector and LED work light
  • High contrast, white on black display with backlight for easy reading
  • Rugged over-molding increases durability and user grip
  • CAT IV 600 V/CAT III 1000 V for greater safety
