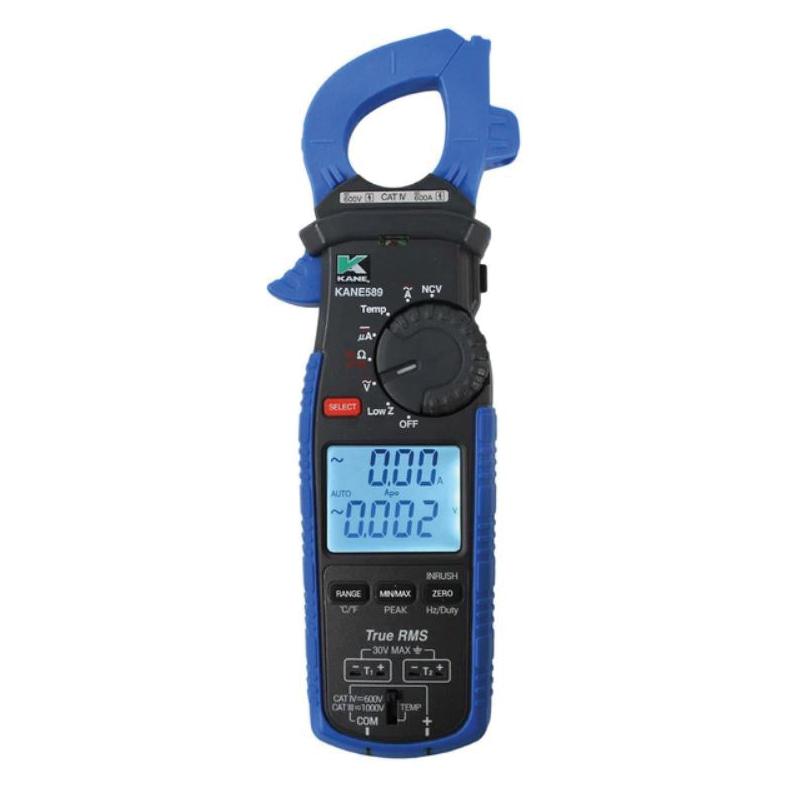

KANE KANE589 True-RMS Clamp Meter, 750 VAC, 1000 VDC, 600 A AC, 600 A DC, 60 uOhm
- Manufacturer: Kane Manufacturing Company, Inc
- Brand Name: KANE
- Part#: KNEKANE589
- MPN: KANE589
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
KANE True-RMS Clamp Meter, 750 VAC, 600 mVAC, 1000 VDC, 600 mVDC, 600 AAC, 2000 uAAC, 2000 uADC, 60 Mohm, Counts: 6000, 6000 uF, -328 to 2462 deg F
| Amperage Rating | : | 600 AAC, 2000 uAAC, 2000 uADC |
| Capacitance | : | 6000 uF |
| Counts | : | 6000 |
| Resistance | : | 60 Mohm |
| Temperature Rating | : | -328 to 2462 deg F |
| Voltage Rating | : | 750 VAC, 600 mVAC, 1000 VDC, 600 mVDC |
- Circuits in molex plugs and diode malfunctions
- Measures capacitance, voltage, microamps, circuit continuity, resistance and temperature via K-type thermocouples
- Flame sensing
- Check system boards and live wires
- Backlit dual-display and worklight
- Min/Max/Avg/Hold
- Peak hold, auto volts and amp selection
- Visible high voltage alert, auto and manual ranging
- Auto-calibration
- Over molded grip
- Test lead storage
- Easy access battery cover latches
- Input jack lock, low battery indicator
- Auto-power off
- 2000 uA AC micro current
- 2000 uA DC micro current
- Audible continuity, diode test, non-contact voltage detection, LRA inrush, low Z (impedance)
