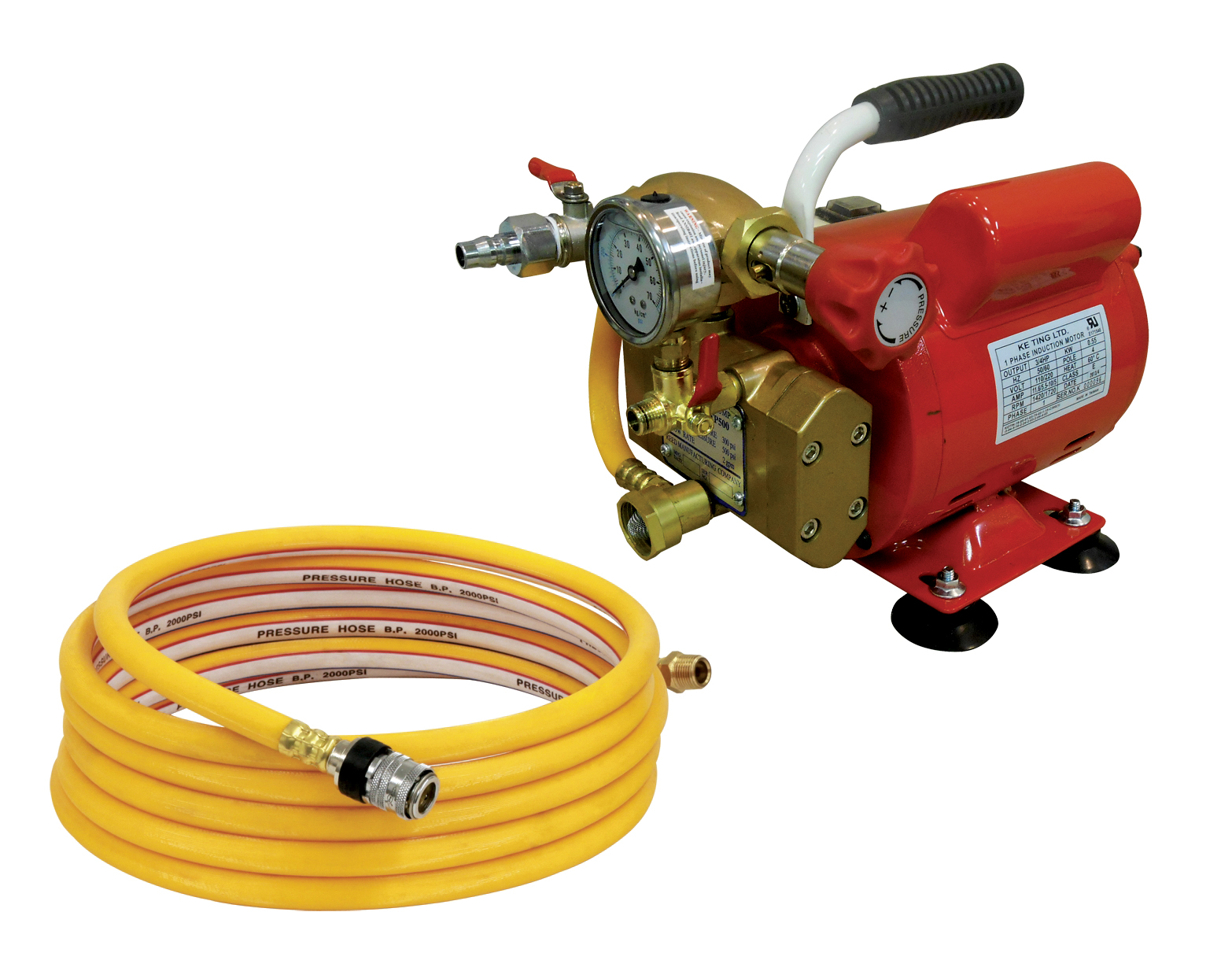

REED EHTP500 Hydrostatic Test Pump, 2 gpm, 3/4 in Inlet, GHT Inlet, 1/2 in Outlet, NPSM Outlet, 500 psi Max Pressure
- Manufacturer: Reed Manufacturing Company
- Brand Name: Reed
- Part#: REDEHTP500
- MPN: EHTP500
- UPC: 757033081703
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Electric hydrostatic test pumps are designed for pressure testing water systems such as water meters, plumbing lines, pressure vessels, solar systems and sprinkler systems, in both residential and commercial buildings. The output pressure is easily adjusted by turning a knob and watching the attached gauge. A built-in bypass allows for automatic water recirculation once the set pressure is reached. The hose-to-pump connection features a quick disconnect with built-in check valve, which allows for convenient setup and portability. Durable pump has stainless steel piston and brass cylinder for long pump life.
REED Hydrostatic Test Pump, 2 gpm Flow Rate, 3/4 in Inlet, GHT Inlet, 1/2 in Outlet, NPSM Outlet, 110 V, 3/4 hp, 50/60 Hz, 1 ph Phase, 500 psi Maximum Pressure, 14 in Overall Length, 8-1/2 in Overall Width, 9-1/2 in Overall Height, Additional Information: 37.5 lb Weight
| Additional Information | : | 37.5 lb Weight |
| Flow Rate | : | 2 gpm |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 3/4 hp |
| Inlet Size | : | 3/4 in |
| Inlet Type | : | GHT |
| Maximum Pressure | : | 500 psi |
| Outlet Size | : | 1/2 in |
| Outlet Type | : | NPSM |
| Overall Height | : | 9-1/2 in |
| Overall Length | : | 14 in |
| Overall Width | : | 8-1/2 in |
| Phase | : | 1 ph |
| Voltage Rating | : | 110 V |
- Smooth running, quiet 3/4 hp motor
- Electric pump includes a 15' (46m) high pressure hose for filling the system
- Pumps are self-priming and work with pressurized or non-pressurized water supply
- Test water meters, plumbing lines, pressure vessels, solar systems and sprinkler systems
- Output pressure adjusts easily
