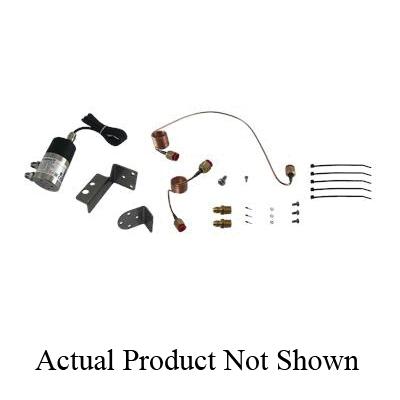

Grundfos DPI Series 96611524 Differential Pressure Sensor Kit, Outputs: 4 to 20 mA, UNF, 2.5 % Accuracy
- Manufacturer: Grundfos
- Brand Name: Grundfos
- Part#: GRU96611524
- MPN: 96611524
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Grundfos Differential Pressure Sensor Kit, DPI Series, 4 to 20 mA Outputs, UNF Connection, 7/16 in Connection, 2.5 % Accuracy, 12-30 V, 0 to 23.21 psi, IP55 Enclosure, -40 to 158 deg F Operating Temperature, 2.95 ft Cable Length, <0.5 s Response, Stainless Steel Housing, Additional Information: FKM Seal
| Accuracy | : | 2.5 % |
| Additional Information | : | FKM Seal |
| Cable Length | : | 2.95 ft |
| Connection Size | : | 7/16 in |
| Connection Type | : | UNF |
| Enclosure Type | : | IP55 |
| Housing Material | : | Stainless Steel |
| Operating Temperature | : | -40 to 158 deg F |
| Outputs | : | 4 to 20 mA |
| Pressure Rating | : | 0 to 23.21 psi |
| Response Time | : | <0.5 s |
| Series | : | DPI Series |
| Voltage Rating | : | 12-30 V |
