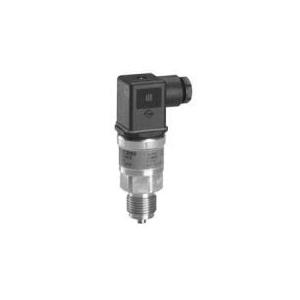

Grundfos 91136169 Pressure Sensor, Outputs: 4 to 20 mA, NPT, 0.5 % Accuracy
- Manufacturer: Grundfos
- Brand Name: Grundfos
- Part#: GRU91136169
- MPN: 91136169
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Grundfos Pressure Sensor, 4 to 20 mA Outputs, NPT Connection, 1/4-18 Connection, 0.5 % Accuracy, 9-32 V, 0 to 87 psi, IP65 Enclosure, -40 to 185 deg F Operating Temperature, 6 ft Cable Length, 4 ms Response, 316L Stainless Steel Housing, 2 in Overall Width
| Accuracy | : | 0.5 % |
| Cable Length | : | 6 ft |
| Connection Size | : | 1/4-18 |
| Connection Type | : | NPT |
| Enclosure Type | : | IP65 |
| Housing Material | : | 316L Stainless Steel |
| Operating Temperature | : | -40 to 185 deg F |
| Outputs | : | 4 to 20 mA |
| Overall Width | : | 2 in |
| Pressure Rating | : | 0 to 87 psi |
| Response Time | : | 4 ms |
| Voltage Rating | : | 9-32 V |
