RIDGID® 55088 RIG55088
  1. pin-int

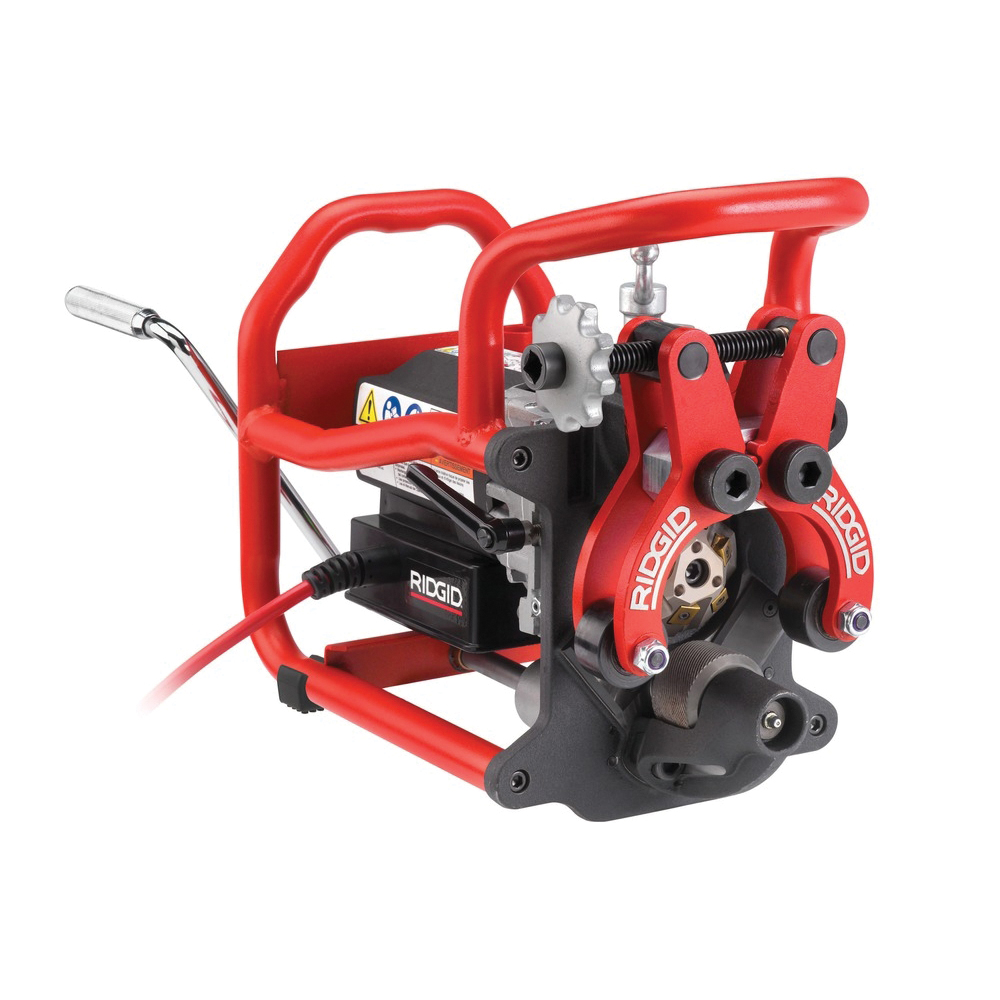

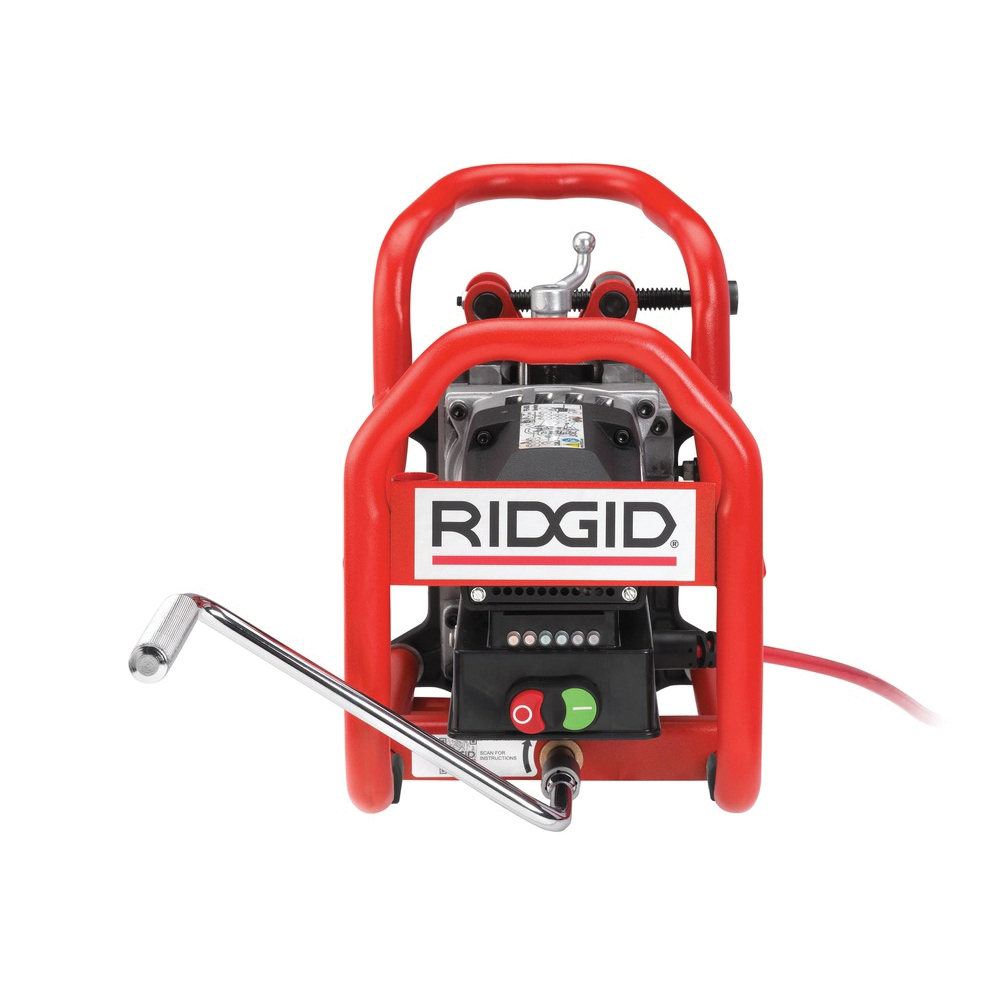

RIDGID® 55088 Transportable Pipe Beveller With 30 deg Cutter Head, 4 in and Larger Pipe, 115/120 V, 1-1/5 hp

RIDGID® 55088 Transportable Pipe Beveller With 30 deg Cutter Head, 4 in and Larger Pipe, 115/120 V, 1-1/5 hp

  • Manufacturer: Emerson Electric Co
  • Brand Name: RIDGID®
  • Part#: RIG55088
  • MPN: 55088
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

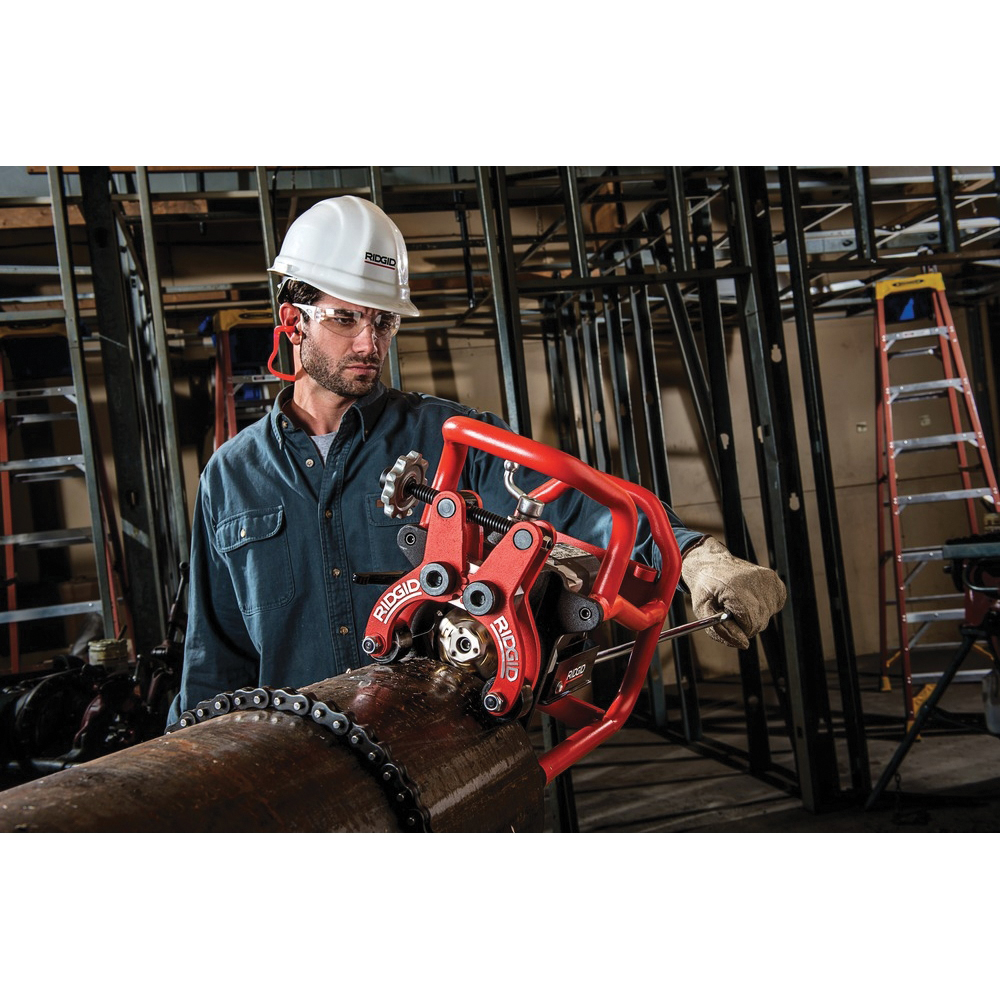

The B-500 Transportable Pipe Beveller produces high quality bevels in 45 seconds* without flames or sparks. The compact design quickly mounts to pipe 4" and up with a maximum wall thickness of 1/2", and creates consistent bevels in a single pass.Get reliable results every time with RIDGID's portable B-500 Pipe Beveller. Accurately bevel pipes in as little as 45 seconds without flames or sparks. Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.

RIDGID® Transportable Pipe Beveller, 4 in and Larger Pipe Capacity, Wall/Plate Thickness: 0.188 to 0.5 in, 115/120 V, 13 A, 50/60 Hz, 1-1/5 hp, 1 ph Phase, 950 rpm, Steel Housing, 15.8 in Overall Length, 11-1/2 in Overall Width, 13.3 in Overall Depth, Additional Information: Model B-500

Additional Information      :      Model B-500
Amperage Rating      :      13 A
Depth      :      17
Frequency Rating      :      50/60 Hz
HP Rating      :      1-1/5 hp
Height      :      16
Housing Material      :      Steel
Overall Depth      :      13.3 in
Overall Length      :      15.8 in
Overall Width      :      11-1/2 in
Phase      :      1 ph
Pipe Capacity      :      4 in and Larger
Speed Rating      :      950 rpm
Voltage Rating      :      115/120 V
Wall/Plate Thickness      :      0.188 to 0.5 in
Weight      :      58
Width      :      11
  • Speed- Set-up and bevel 10" diameter schedule 40 pipe in 45 seconds! Pipe is cool to touch immediately following bevelling.

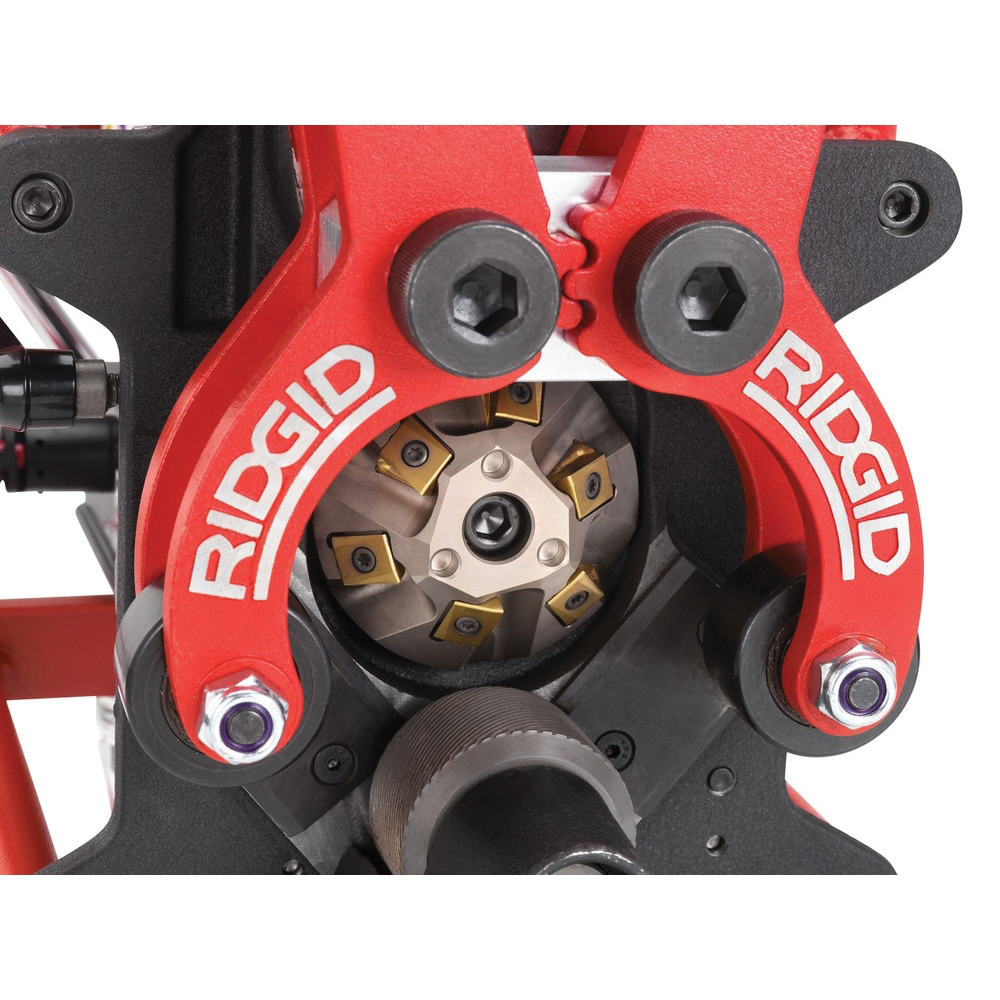

  • Consistency - Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes. Adjustable land width from 0" to 3/16" to fit welders' requirements. Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.
  • Simplicity - Fast to set-up and operate. Patent-pending clamp system firmly secures tool to the pipe. Speed monitoring with led indicators for optimal cutter performance. Grinding spark free operation. Adjustable at 1/32" increments
