RIDGID® 49298 RIG49298
  1. pin-int

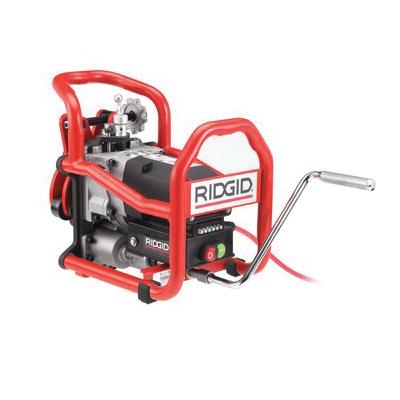

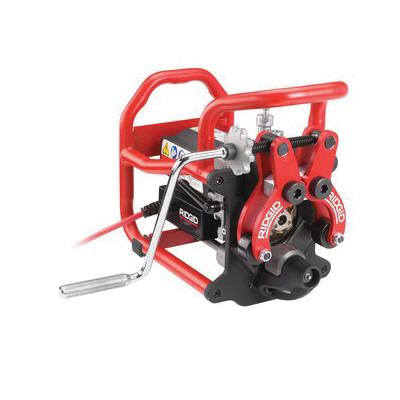

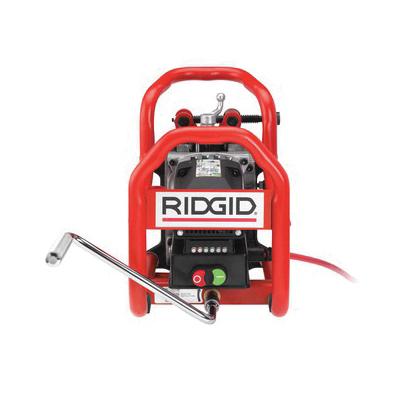

RIDGID® 49298 Transportable Pipe Beveller, 4 in and Larger Pipe, 115/120 V, 1.2 hp, 950 rpm Speed, 15.8 in OAL

RIDGID® 49298 Transportable Pipe Beveller, 4 in and Larger Pipe, 115/120 V, 1.2 hp, 950 rpm Speed, 15.8 in OAL

  • Manufacturer: Emerson Electric Co
  • Brand Name: RIDGID®
  • Part#: RIG49298
  • MPN: 49298
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The B-500 Transportable Pipe Beveller produces high quality bevels in 45 seconds* without flames or sparks. The compact design quickly mounts to pipe 4 in and up with a maximum wall thickness of 1/2 in, and creates consistent bevels in a single pass.

RIDGID® Transportable Pipe Beveller, 4 in and Larger Pipe Capacity, 0.188 to 0.5 in Wall/Plate Thickness, 115/120 V, 13 A, 50/60 Hz, 1.2 hp, 1 Phase, 950 rpm, Steel Housing, 15.8 in Overall Length, 11-1/2 in Overall Width

Amperage Rating      :      13 A
Frequency Rating      :      50/60 Hz
HP Rating      :      1.2 hp
Housing Material      :      Steel
Overall Length      :      15.8 in
Overall Width      :      11-1/2 in
Phase      :      1
Pipe Capacity      :      4 in and Larger
Speed Rating      :      950 rpm
Voltage Rating      :      115/120 V
Wall/Plate Thickness      :      0.188 to 0.5 in
  • Six built-in cutter inserts work simultaneously to create an accurate and machined finish
  • Spark-free operation also leaves pipe cool-to-the-touch immediately following a bevel
  • Patent-pending clamp system firmly secures the tool to the pipe

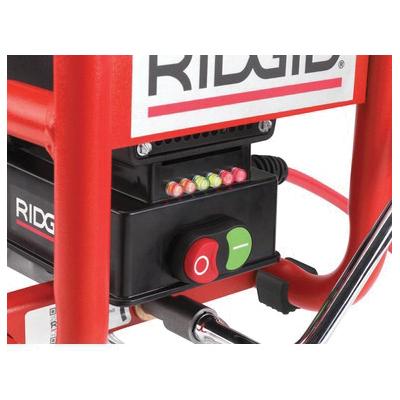

  • Speed monitoring with LED indicators enhance cutter performance
  • Adjustable land width up to 3/16-inches to fit a welder's requirements
  • Fast to set-up and operate
  • Patent-pending clamp system firmly secures tool to the pipe
  • Capacity: 4'' pipe and larger, flat plate
  • Pipe Wall/ Plate Thickness: Min 0.188 in (4.8 mm)/Max 0.50 in (12.7 mm)
  • Models Equipped with -: 37.5deg;30deg or 45deg (with Optional Cutter Heads)
  • Cutter Head: Rated for most steel & stainless steel*
  • Size: 15.8 in, (401 mm) L x 11.5 in, (292 mm)W x 13.3 in, (338 mm) H
  • Land Width: 0 in - 3/16 in (4.8 mm) in approximately 1/32 in(0.8 mm) increments
  • Motor Type: Universal single-phase
  • Motor RPM: 950 (no load)
  • Body: Steel frame
  • * Beveller cutting head and inserts are optimized for standard A53 mild steel pipe.Reduced insert life can be expected on other materials
