RIDGID® 300 Series 66947 Compact Threading Machine, 1/8 to 2 in Nominal, 1/4 to 2 in Bolt, 1/2 hp, 115 V, 15 A, 50/60 Hz
- Manufacturer: Emerson Electric Co
- Brand Name: RIDGID®
- Part#: RIG66947
- MPN: 66947
- UPC: 956916694768
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
RIDGID® Compact Threading Machine, Series: 300 Series, 1/8 to 2 in Nominal, 1/4 to 2 in Bolt Size, 1/2 hp, 115 V, 15 A, 50/60 Hz, 36 rpm, Foot Switch
| Amperage Rating | : | 15 A |
| Bolt Size | : | 1/4 to 2 in |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1/2 hp |
| Nominal Size | : | 1/8 to 2 in |
| Series | : | 300 Series |
| Speed Rating | : | 36 rpm |
| Switch Type | : | Foot |
| Voltage Rating | : | 115 V |

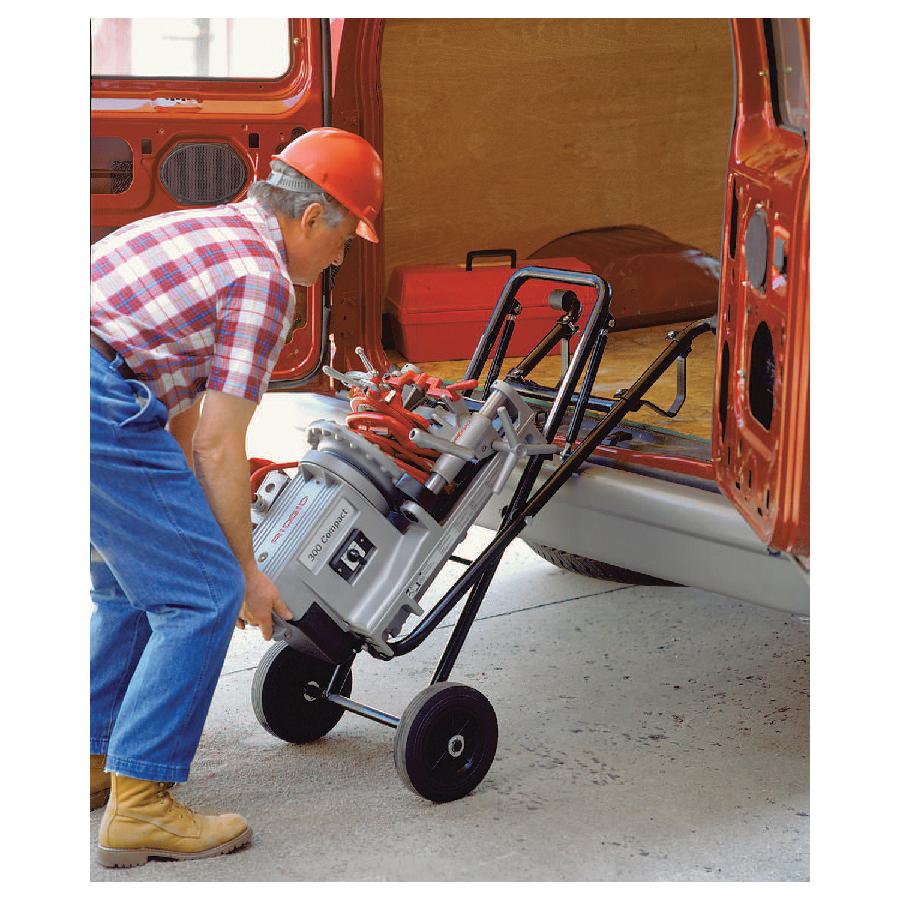

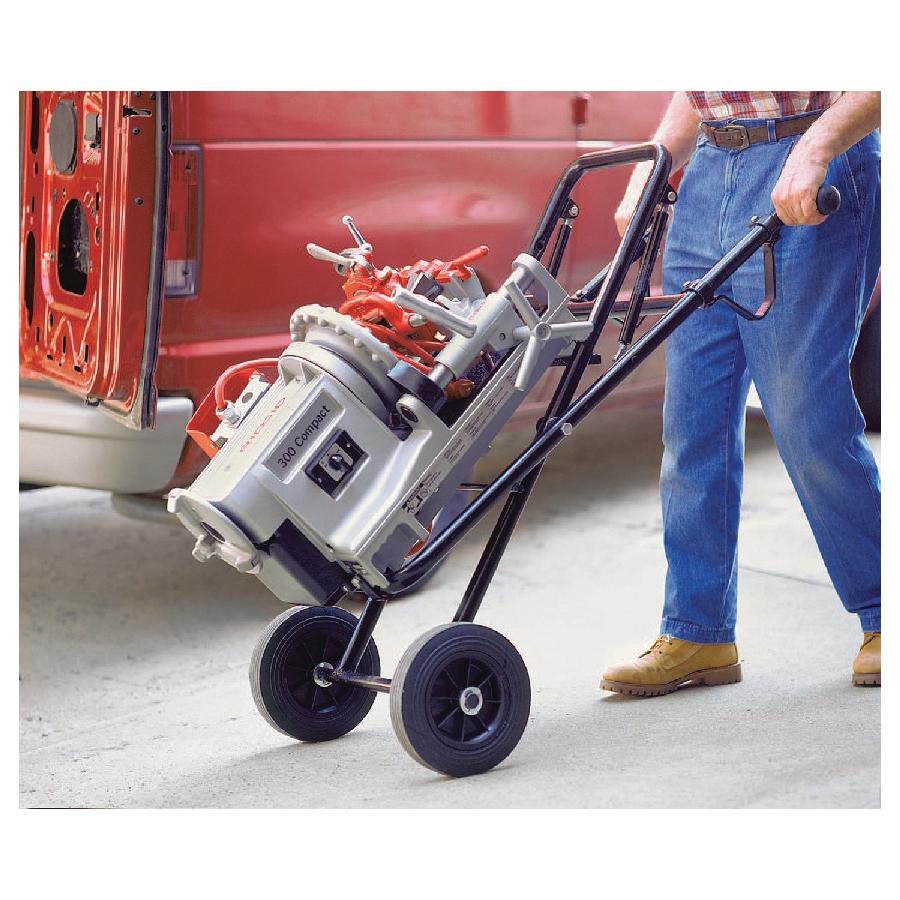

- Lightweight portable designed for fast transport and set up
- Built-in oiling system with adjustable flow control for ideal threading performance
- Transmission and covers are designed to reduce noise
- Versitle for threading or roll grooving

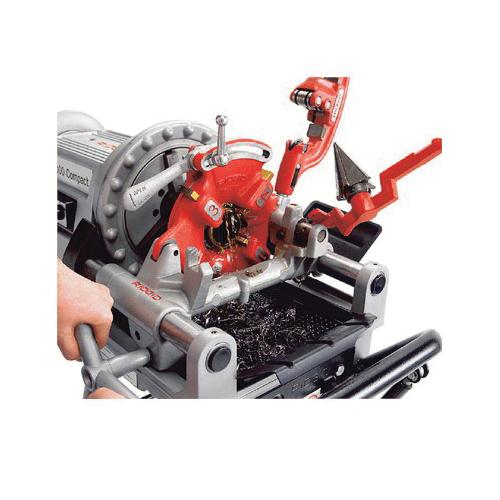

- Hammer type chuck to quickly secure the workpiece
- Quiet operation
- Pipe Capacity: 1/8 in - 2 in (3mm-50mm)
- Bolt Capacity: 1/4 in - 2 in (6mm-50mm)
- Motor Control: Heavy-duty rotary forward/off/reverse and integral foot switch
- Chuck: Hammer-type with replaceable, rocker-action jaw inserts
- Oiling System: Through-the-head, with integral oil reservoir with self-priming, constant-flow, gerotor pump
