RIDGID® 72023 RIG72023
  1. pin-int

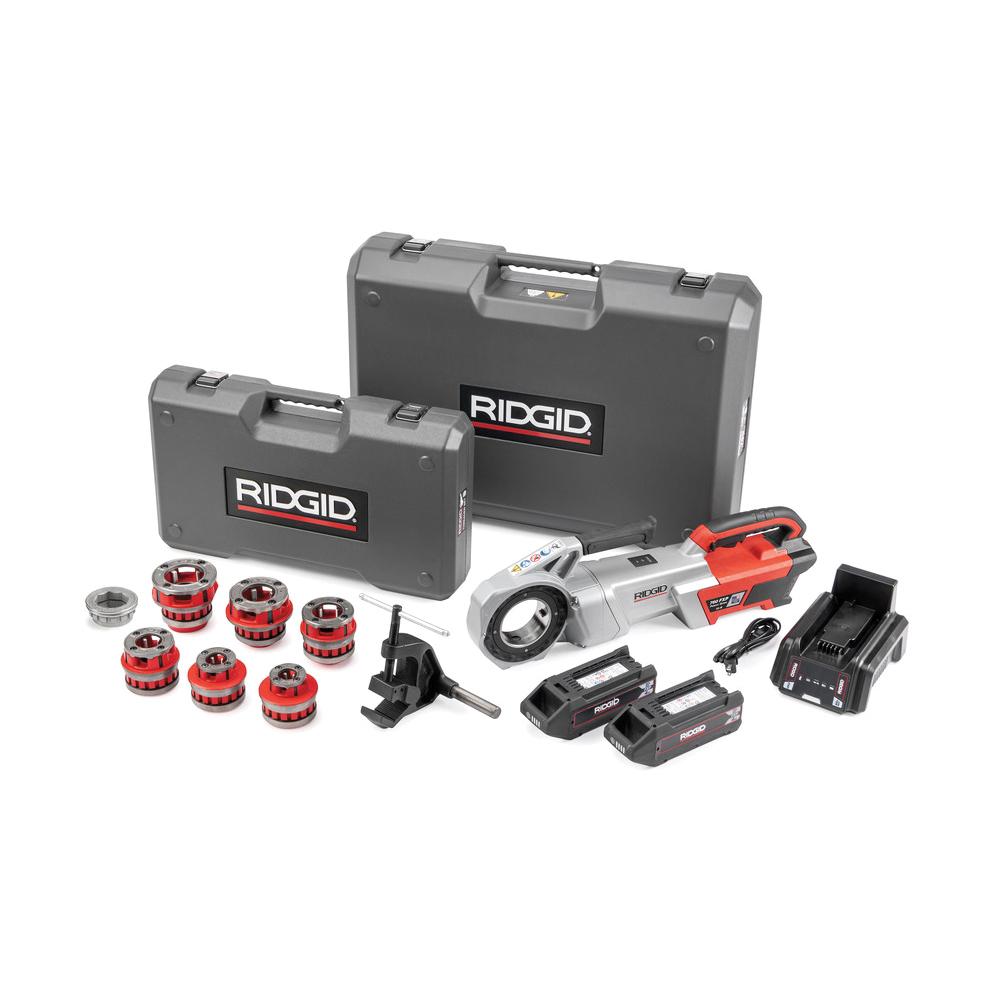

RIDGID® 760 FXP™ 12-R 72023 Power Drive, Bare Tool/Kit: Kit, 60 V, 1080 W, 42 rpm Speed, 76 in L Cord

RIDGID® 760 FXP™ 12-R 72023 Power Drive, Bare Tool/Kit: Kit, 60 V, 1080 W, 42 rpm Speed, 76 in L Cord

  • Manufacturer: Emerson Electric Co
  • Brand Name: RIDGID®
  • Part#: RIG72023
  • MPN: 72023
  • UPC: 095691720238
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

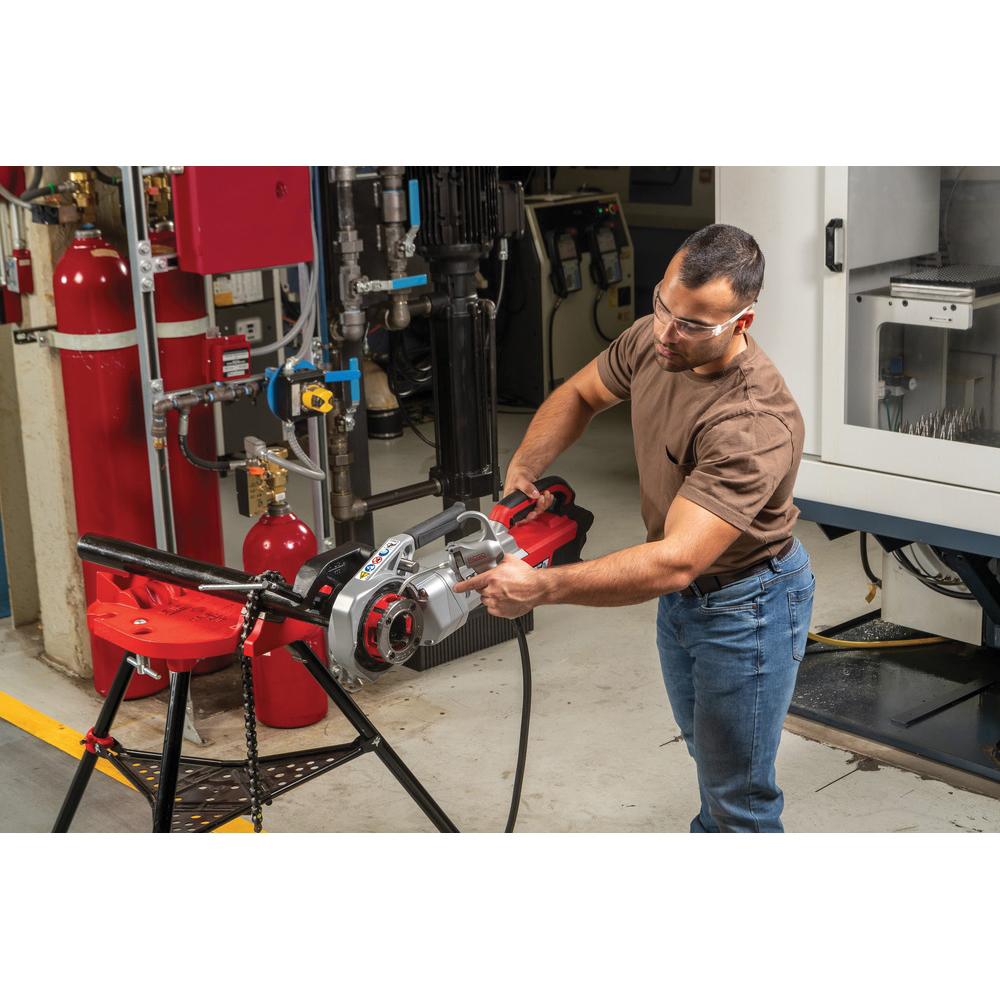

Thread pipe quickly and precisely with the battery-powered RIDGID 760 FXP™ Power Drive. The FXP™ Technology Platform offers portability and provides the power to achieve up to 30 2" threads per charge*. When kickback is detected during threading the tool will automatically shut off. The Power Drive also delivers industry-leading speed with added features like workspace lights and LED alerts when the thread is nearing completion. This tool provides everything you need to get the job done.

RIDGID® Power Drive, Model: 760 FXP™ 12-R, Kit, 60 V, 20 A, 1080 W, 1/8 to 2 in Pipe Outside Diameter, 42 rpm, Forward/Reverse Slide, On/Off Momentary Contact Switch, 76 in Cord Length, Aluminum/Glass Filled Plastic Housing, Gray, 27.8 in L x 5.2 in W x 9.17 in H, Additional Information: Brushless DC Motor, 1/4 to 1 in Bolt Threading Capacity

Additional Information      :      Brushless DC Motor, 1/4 to 1 in Bolt Threading Capacity
Amperage Rating      :      20 A
Amperage      :      20
Bare Tool/Kit      :      Kit
Battery Advertised Voltage      :      60
Battery Composition      :      Lithium Ion
Blue Tooth      :      Yes
Capacity Max      :      2 IN / 50.8 MM
Capacity Min      :      0.125 IN / 3.175 MM
Color      :      Gray
Cord Length      :      76 in
Dimensions      :      27.8 in L x 5.2 in W x 9.17 in H
Height      :      9.1 IN / 231.14 MM
Horsepower      :      0.8
Housing Material      :      Aluminum/Glass Filled Plastic
Length      :      27.8 IN / 706.12 MM
Light      :      LED
Material      :      Aluminum
Maximum Operating Temperature      :      140 F / 60 C
Minimum Operating Temperature      :      -4 F / -20 C
Model      :      760 FXP™ 12-R
Number of Handles      :      2
Pipe Outside Diameter      :      1/8 to 2 in
Power Rating      :      1080 W
Power      :      DC
RPM      :      42
Shape      :      Irregular
Speed Rating      :      42 rpm
Switch Type      :      Forward/Reverse Slide, On/Off Momentary Contact
Torque      :      180 NTM
Type      :      DC Brushless
Voltage Rating      :      60 V
Voltage      :      54 VLT
Wattage      :      1080
WiFi      :      No
Width      :      5.2 IN / 132.08 MM
  • Cordless Freedom - Complete up to 30 2" threads on a single charge with the FXP Battery Platform
  • Torque Reaction Shutoff - Tool automatically shuts off if kickback is detected
  • Workspace LEDs - LED near die head illuminates the work area
  • End of Thread Indicator - LEDs indicates when the thread is nearing completion
  • Palm Pad - Eliminate the need to contact the diehead directly when starting the thread with a conveniently placed palm pad
  • Connected - Customize, monitor and manage your tool with the RIDGID Link app
  • Compatibility - Compatible with existing RIDGID die heads and the 258 & 258XL Pipe Cutters (12-R Tool Only)
  • FXP Battery charging times - 4Ah: 40min, 8Ah: 80min
