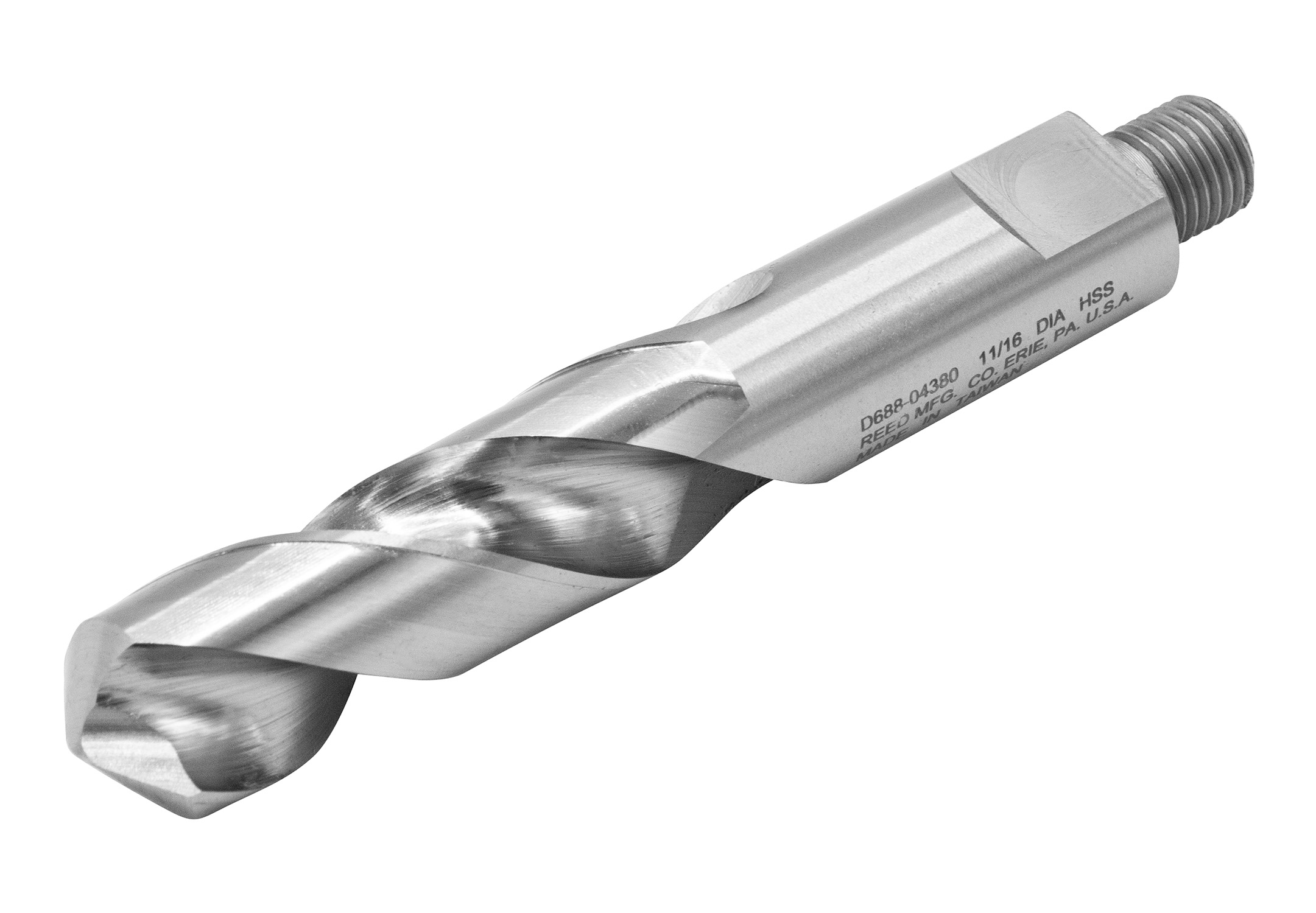

REED D Series D688 Drill Bit, 11/16 in Dia, 4-1/2 in OAL
- Manufacturer: Reed Manufacturing Company
- Brand Name: Reed
- Part#: REDD688
- MPN: D688
- UPC: 757033043800
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
D Series Drill Bits are designed for use with REED drilling machines and Mueller® E5/D5 only; both of which use saddles. These spiral drill bits are made from strong, high-speed steel, and are heat-treated for longer life. Easier cutting than other drills as the spiral motion clears chips away from the cut. D series drill bits are recommended for cast iron and ductile iron, including cement-lined ductile iron.
REED Drill Bit, D Series, 11/16 in Diameter, 4-1/2 in Overall Length, Additional Information: 5/8 in H x 5/8 in W Dimensions, 0.3 lb Weight, 3/4 in NPT and AWWA Connection
| Additional Information | : | 5/8 in H x 5/8 in W Dimensions, 0.3 lb Weight, 3/4 in NPT and AWWA Connection |
| Diameter | : | 11/16 in |
| Overall Length | : | 4-1/2 in |
| Series | : | D Series |
- Recommended for cast iron and cement lined ductile iron
- Spiral motion clears chips away from the cut
- Heat-treated for longer life
- Oiled for corrosion protection
- Made from strong, high-speed steel
