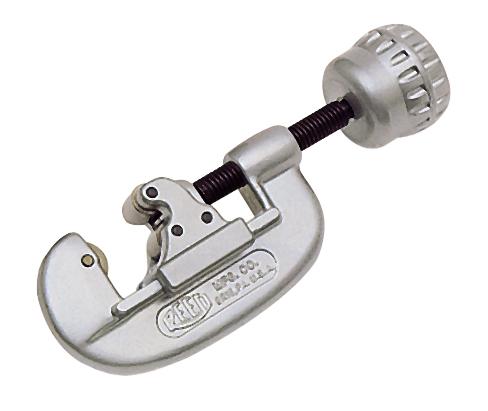

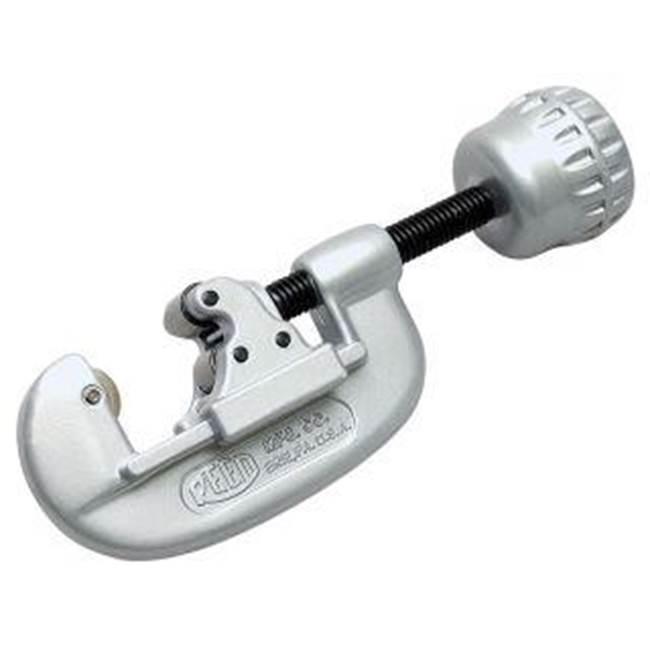

REED T15 Tubing Cutter, 1-1/4 in Max Pipe/Tube Dia, 3/16 in Mini Pipe/Tube Dia
- Manufacturer: Reed Manufacturing Company
- Brand Name: Reed
- Part#: REDT15
- MPN: T15
- UPC: 757033034853
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Tubing cutters are a simple, durable design. Each tubing cutter has a screw feed with a large grip knob to make it easier to tighten the cutter. T10 and T15 cutters are zinc alloy construction with a built-in reamer for convenient cutting and deburring. T20 cutter is larger but light due to its aluminum construction. T20 cutter features a fold-out reamer. Wide rollers on all three cutter models yield a square cut while thin cutter wheel profile ensures a quick, clean cut.
REED Tubing Cutter, Maximum Pipe/Tube Diameter: 1-1/4 in, Minimum Pipe/Tube Diameter: 3/16 in, 6-1/2 in Overall Length, 2-3/4 in Overall Width, 1-5/8 in Overall Depth, Additional Information: 1.3 lb Weight
| Additional Information | : | 1.3 lb Weight |
| Handle Type | : | Knob |
| Maximum Pipe/Tube Diameter | : | 1-1/4 in |
| Minimum Pipe/Tube Diameter | : | 3/16 in |
| Overall Depth | : | 1-5/8 in |
| Overall Length | : | 6-1/2 in |
| Overall Width | : | 2-3/4 in |
| Pipe/Tube Material | : | Aluminum/Brass/Copper/Steel |
| Suitable For Use With | : | Aluminum, Brass, Copper and Steel Tubes |
- Simple feed screw design aids in cutter durability in tough environments
- Internal reamer built inside knob for operator convenience
- Large grip knob permits easy adjustment of feed screw
- Wide rollers work to minimize burrs by smoothing the cut area
