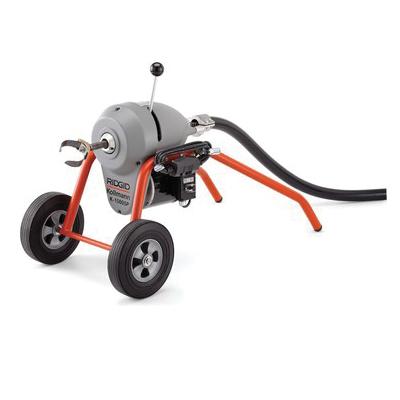

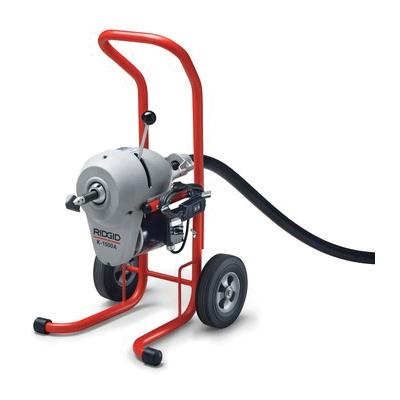

RIDGID® K-1500 Series 23692 Sectional Machine, 2 to 8 in Drain Line, 200 ft Max Run, 115 V, 3/4 hp
- Manufacturer: Emerson Electric Co
- Brand Name: RIDGID®
- Part#: RIG23692
- MPN: 23692
- UPC: 956912369202
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The K-1500 Sectional Machine - For 2 in to 8 in Drain and Sewer Lines The finest all-around sewer and drain cleaning machine. One man can easily clean the heaviest blockages - indoors or out. High-speed cleaning gets the job done faster and better.
RIDGID® Sectional Machine, Series: K-1500, Tool, 2 to 8 in Drain Line Capacity, 7/8 in, 1-1/4 in Cable Diameter, 200 ft Maximum Run, 115 V, 10.4 A, 50/60 Hz, 3/4 hp, 710 rpm
| Amperage Rating | : | 10.4 A |
| Cable Diameter | : | 7/8 in, 1-1/4 in |
| Drain Line Capacity | : | 2 to 8 in |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 3/4 hp |
| Maximum Run | : | 200 ft |
| Series | : | K-1500 |
| Speed Rating | : | 710 rpm |
| Tool/Kit | : | Tool |
| Voltage Rating | : | 115 V |

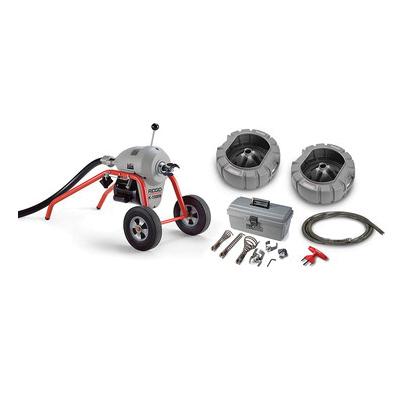

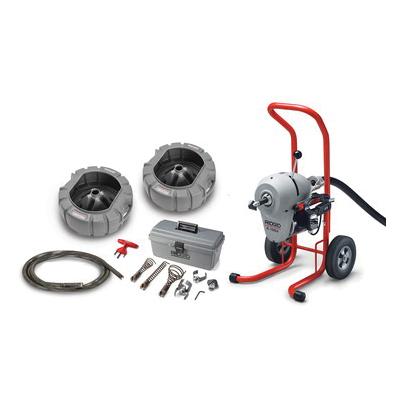

- Complete unit includes: A-frame machine, 12-foot rear guide hose & mitt
- Cable clutch maximizes operator control to instantly stop and start the machine
- 1-1/4-inch cable cleans 3 to 10 inch diameter lines to 200 feet; 7/8-inch cable cleans 2 to 4-inch lines 175-feet)
- The 3/4 HP motor spins the cable at 710RPMs
- Approved by CSA and UL Standards
- Equipped with 3/4 HP motor, CSA approved, Approved to UL standards (NRTLC)
