Yellow Jacket® 78912 YJT78912
  1. pin-int

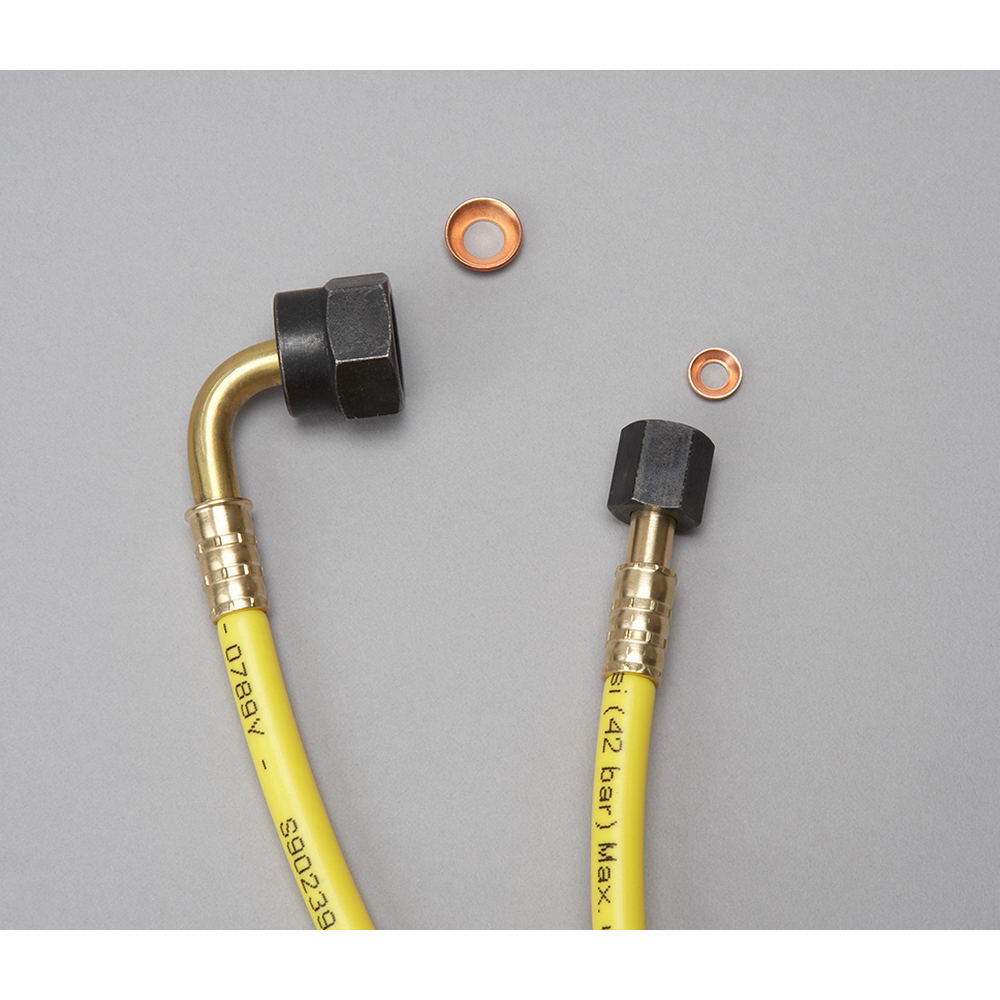

Yellow Jacket® 78912 High-Temperature Pressure Control Hose, SAE Flared Straight, 0.156 in ID, 0.325 in OD, 12 in L

Yellow Jacket® 78912 High-Temperature Pressure Control Hose, SAE Flared Straight, 0.156 in ID, 0.325 in OD, 12 in L

  • Manufacturer: Ritchie Engineering Company, Inc
  • Brand Name: Yellow Jacket®
  • Part#: YJT78912
  • MPN: 78912
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Pressure control hose is constructed of a thermoplastic polymer inner tube and cover to eliminate the vibration failures of copper capillary tube installations.

Yellow Jacket® High-Temperature Pressure Control Hose, 0.156 in Inside Diameter, 0.325 in Outside Diameter, 800 psi, -49 to 266 deg F, 4 in Bend Radius, Connection Size: 3/8 in, Connection Type: SAE Flared Straight, Brass Fitting, 12 in Length, 1 Hoses, R-134A, R-404A, R-407A, R-407B, R-407C, R-410A, R-507, R-22 Refrigerant, Thermoplastic Polymer, Additional Information: 4000 psi Burst Pressure Rating

Additional Information      :      4000 psi Burst Pressure Rating
Bend Radius      :      4 in
Connection Size      :      3/8 in
Connection Type      :      SAE Flared Straight
Fitting Material      :      Brass
Inside Diameter      :      0.156 in
Length      :      12 in
Material      :      Thermoplastic Polymer
Number of Hoses      :      1
Outside Diameter      :      0.325 in
Pressure Rating      :      800 psi
Refrigerant Type      :      R-134A, R-404A, R-407A, R-407B, R-407C, R-410A, R-507, R-22
Temperature Rating      :      -49 to 266 deg F
  • The higher temperature ratings up to 266deg F eliminate the failures caused by maximum loads on rubber hoses
  • Polyester braid reinforcement with high tensile strength and high modulus withstand higher pressures
  • Hex nuts are steel and finished with black zinc. Copper gaskets provide the best possible seal
  • Yellow color makes hose easily visible inside system
  • 4000 psi (276 bar) minimum burst, 800 psi (55 bar) maximum working pressure
  • Hex style fittings with 1/4" SAE thread. Straight or 90deg with copper gaskets
  • Operating temperature -49deg to 266deg F (-44deg to 130deg C)
  • Minimum bend radius: 4" (102mm)
