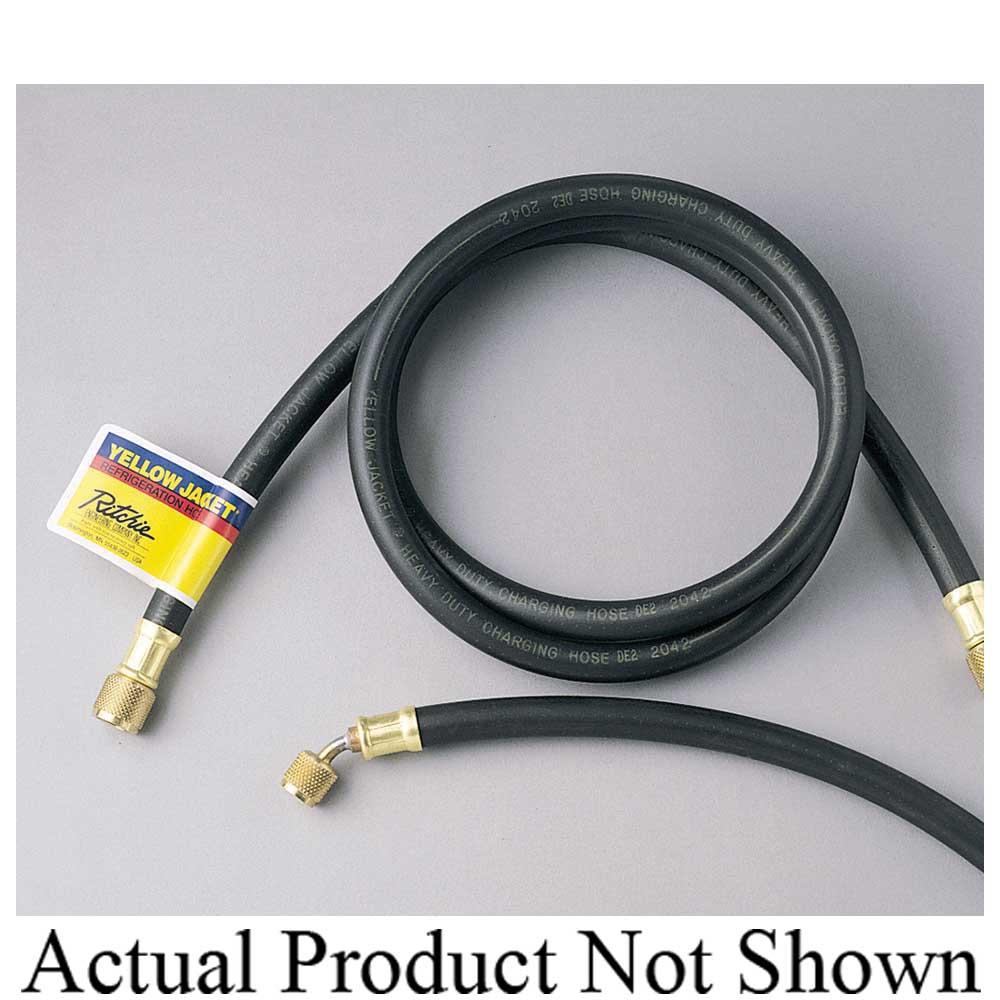

Yellow Jacket® PLUS II™ 16036 Combination Charging/Vacuum Hose, Flared, 36 in L, Black
- Manufacturer: Ritchie Engineering Company, Inc
- Brand Name: Yellow Jacket®
- Part#: YJT16036
- MPN: 16036
- UPC: 686800160368
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Heavy-duty construction with PLUS II™ barrier technology reduces permeation and vacuum loss. Large I.D. reduces vacuum time substantially over 1/4" or 3/8" hose.
Yellow Jacket® Combination Charging/Vacuum Hose, 600 psi, -22 to 176 deg F, 10 in Bend Radius, 5/8 in Connection, Flared Connection Type, 36 in Length, Black, Domestic, Additional Information: Heavy-Duty
| Additional Information | : | Heavy-Duty |
| Bend Radius | : | 10 in |
| Color | : | Black |
| Connection Size | : | 5/8 in |
| Connection Type | : | Flared |
| Domestic/Import | : | Domestic |
| Length | : | 36 in |
| Pressure Rating | : | 600 psi |
| Temperature Rating | : | -22 to 176 deg F |
- Pull a more complete vacuum
- Faster refrigerant transfer
- Faster charging on large systems
- 3000 psi (207 bar) minimum burst, 600 psi (41 bar) maximum working pressure
- Operating temperature -22 deg to 176 deg F (-30 deg to 80 deg C)
- Minimum bend radius: 10″ (254 mm)
- Other fittings available on request
- Made in the USA
