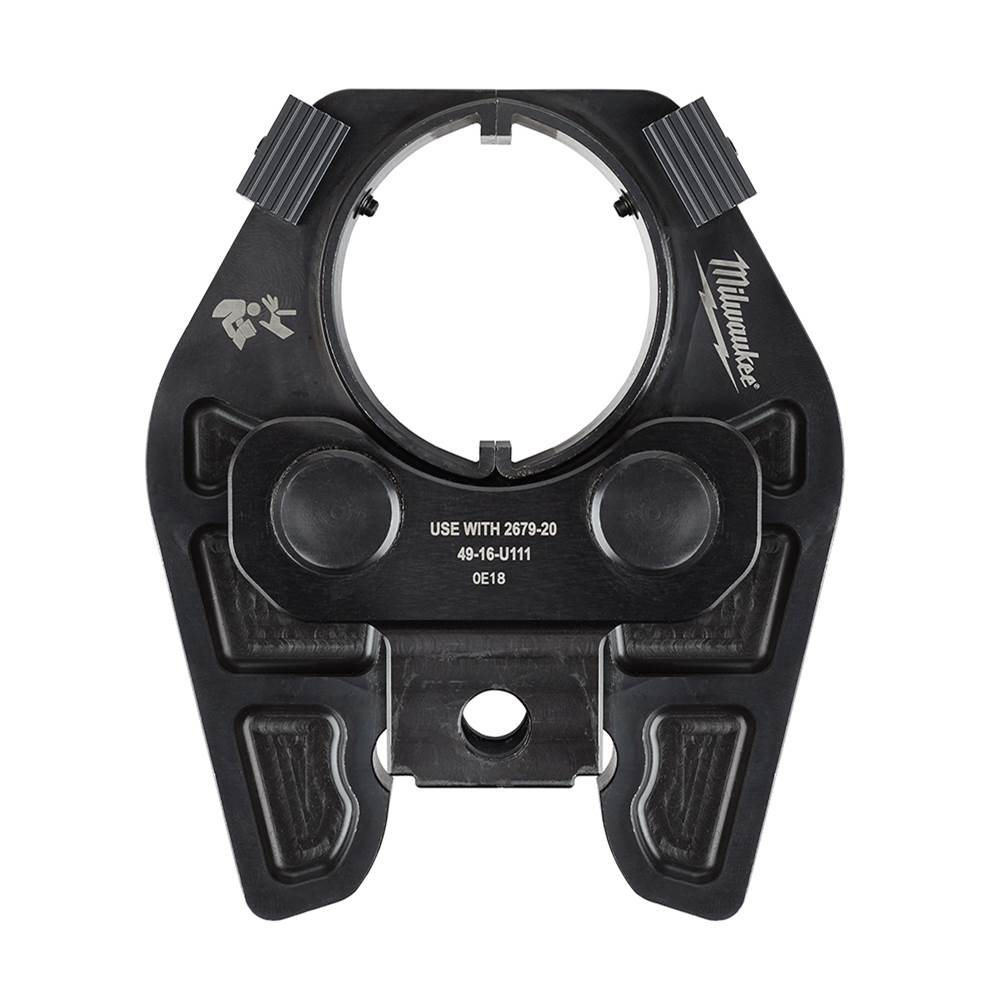

Milwaukee® 49-16-U111 Crimp Jaw, 6 ton Operating Force, Steel
- Manufacturer: Milwaukee Tool
- Brand Name: Milwaukee®
- Part#: MWK49-16-U111
- MPN: 49-16-U111
- UPC: 045242505524
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

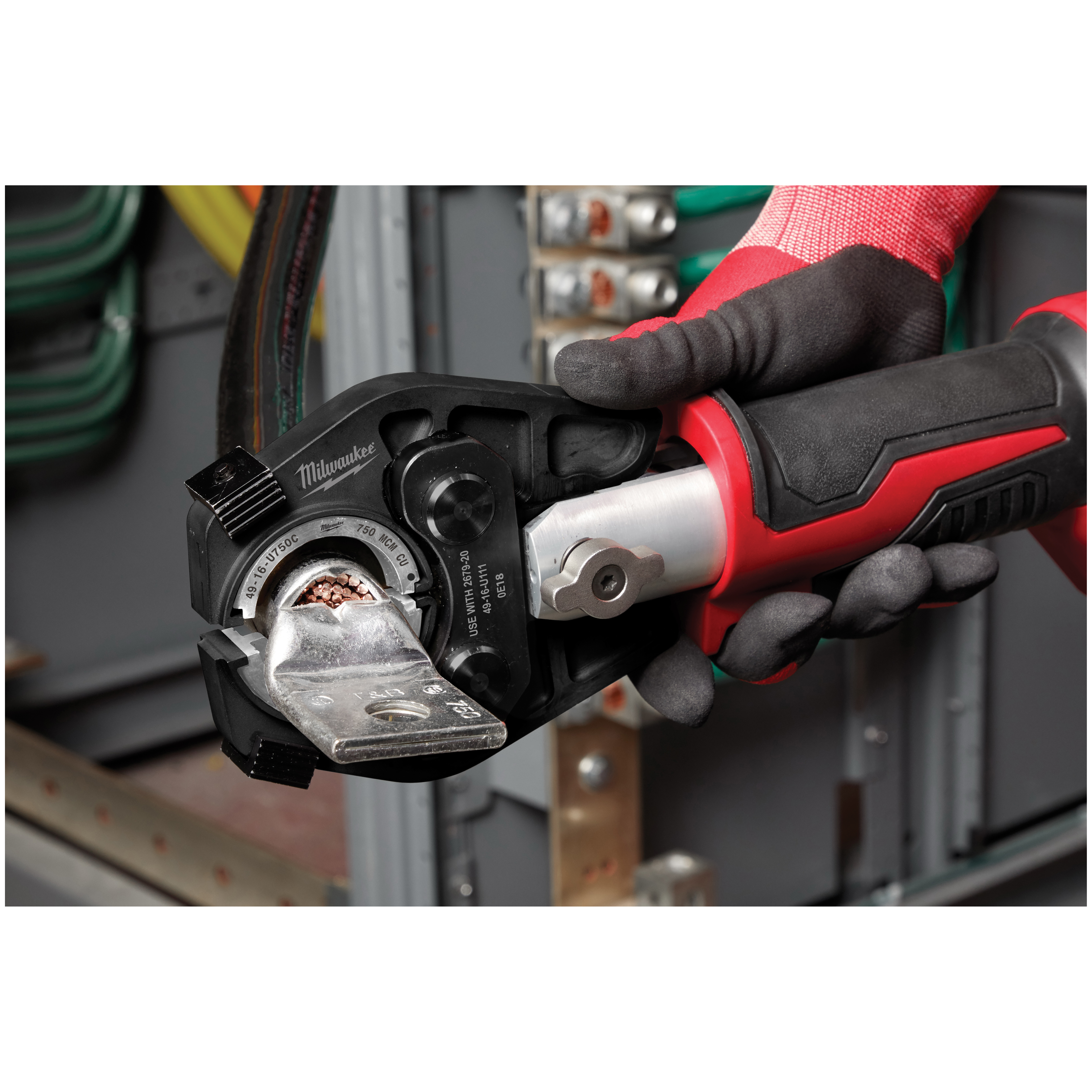

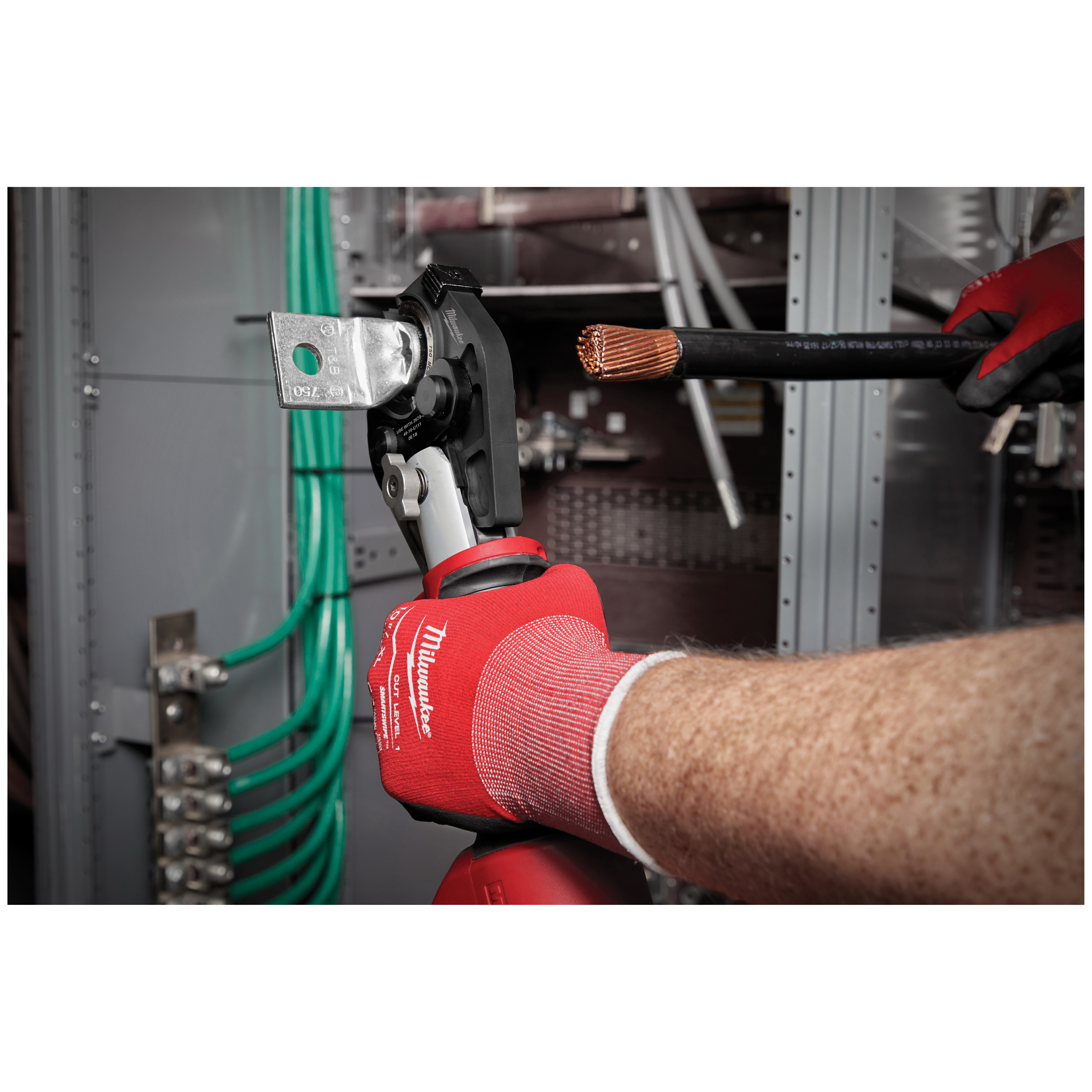

The 750 MCM Cu/Al crimping jaw for M18™ Force Logic™ 600 MCM crimper is the most accurate way to crimp, producing cULus classified crimps according to the UL 486A-B classification standards for #8 to 750 MCM copper and Dua-rated Anderson, Blackburn® Burndy, Ilsco, Panduit, Penn-Union and Thomas and Betts Connectors. The crimping jaw uses Milwaukee® U Style Dies that feature vivid wire size markings and industry-standard color markings. The crimper dies also imprint wire size onto the connector after crimp completion. The crimper is made for commercial electricians and is designed to provide you with ease of use and easy inspection. A revolutionary new jaw design holds the connector providing you with instant alignment. For use with our M18™ Force Logic™ 600 MCM Crimper (2679-20).
Milwaukee® Crimp Jaw, 6 ton Operating Force, 750 MCM Maximum Capacity, Steel, 6.3 in Overall Length, 7.05 in Overall Width, 3.35 in Overall Depth, For Use With: M18™ Force Logic™ 2679-20 600 MCM Crimper, 6T U-Style Die
| Material | : | Steel |
| Maximum Capacity | : | 750 MCM |
| Operating Force | : | 6 ton |
| Overall Depth | : | 3.35 in |
| Overall Length | : | 6.3 in |
| Overall Width | : | 7.05 in |
| Suitable For Use With | : | M18™ Force Logic™ 2679-20 600 MCM Crimper, 6T U-Style Die |
- Accepts Milwaukee® 750 kcmil CU and 400 to 750 kcmil AL 6T U-style dies
- Proprietary jaw - holds connector for instant alignment
