REED DEB4 Deburring Tool, 5-1/4 in OAL
- Manufacturer: Reed Manufacturing Company
- Brand Name: Reed
- Part#: REDDEB4
- MPN: DEB4
- UPC: 757033044302
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

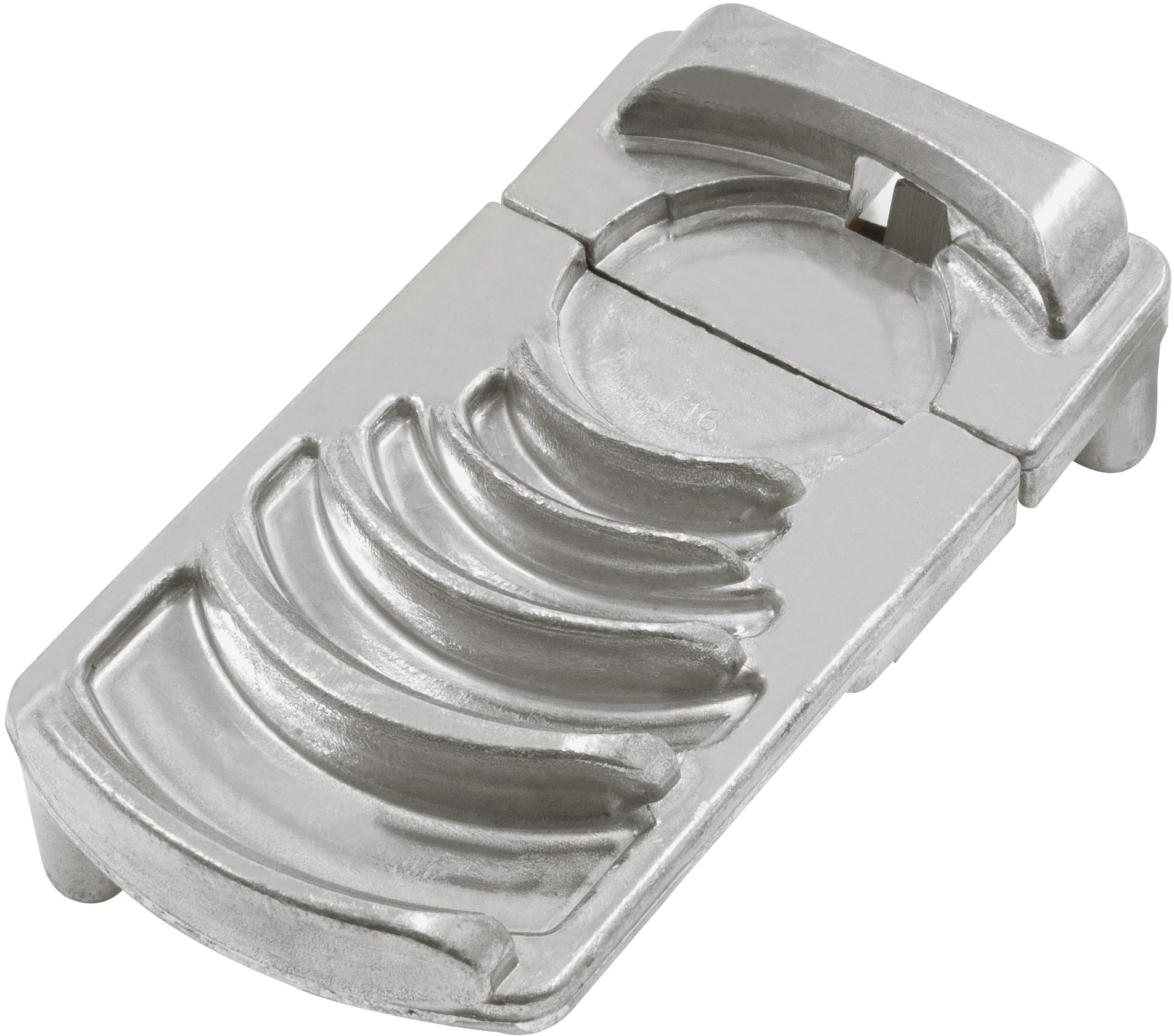

DEB4 tools deburr fast - one easy revolution produces a 3/32 In. 15deg chamfer in seconds. DEB4 tools deburr the outside of the pipe only to allow easy assembly into fittings. DEB4 fits comfortably in one's hand and the smooth chamfered pipe end allows solvent to spread evenly as pipe is joined. Aluminum die-cast tool features a hardened steel blade that is reversible for two cutting edges and is also sharp enable. Fits six nominal pipe sizes: 1-1/4 In. to 4 In. and is used on PVC, CPVC and ABS.
REED Deburring Tool, 5-1/4 in Overall Length, Additional Information: 1-1/4 in, 1-1/2 in, 2 in, 2-1/2 in, 3 in, 4 in, 42 mm, 50 mm, 63 mm, 75 mm, 90 mm, 114 mm Pipe Capacity, 3/32 in 15 deg Chamfer, 1-1/2 in H x 3 in W Dimensions, 0.7 lb Weight
| Additional Information | : | 1-1/4 in, 1-1/2 in, 2 in, 2-1/2 in, 3 in, 4 in, 42 mm, 50 mm, 63 mm, 75 mm, 90 mm, 114 mm Pipe Capacity, 3/32 in 15 deg Chamfer, 1-1/2 in H x 3 in W Dimensions, 0.7 lb Weight |
| Blade Material | : | Steel |
| Blade Type | : | Hardened, Reversible, Sharpenable |
| Overall Length | : | 5-1/4 in |
| Surface Application | : | ABS, CPVC, Polypropylene, PVC |

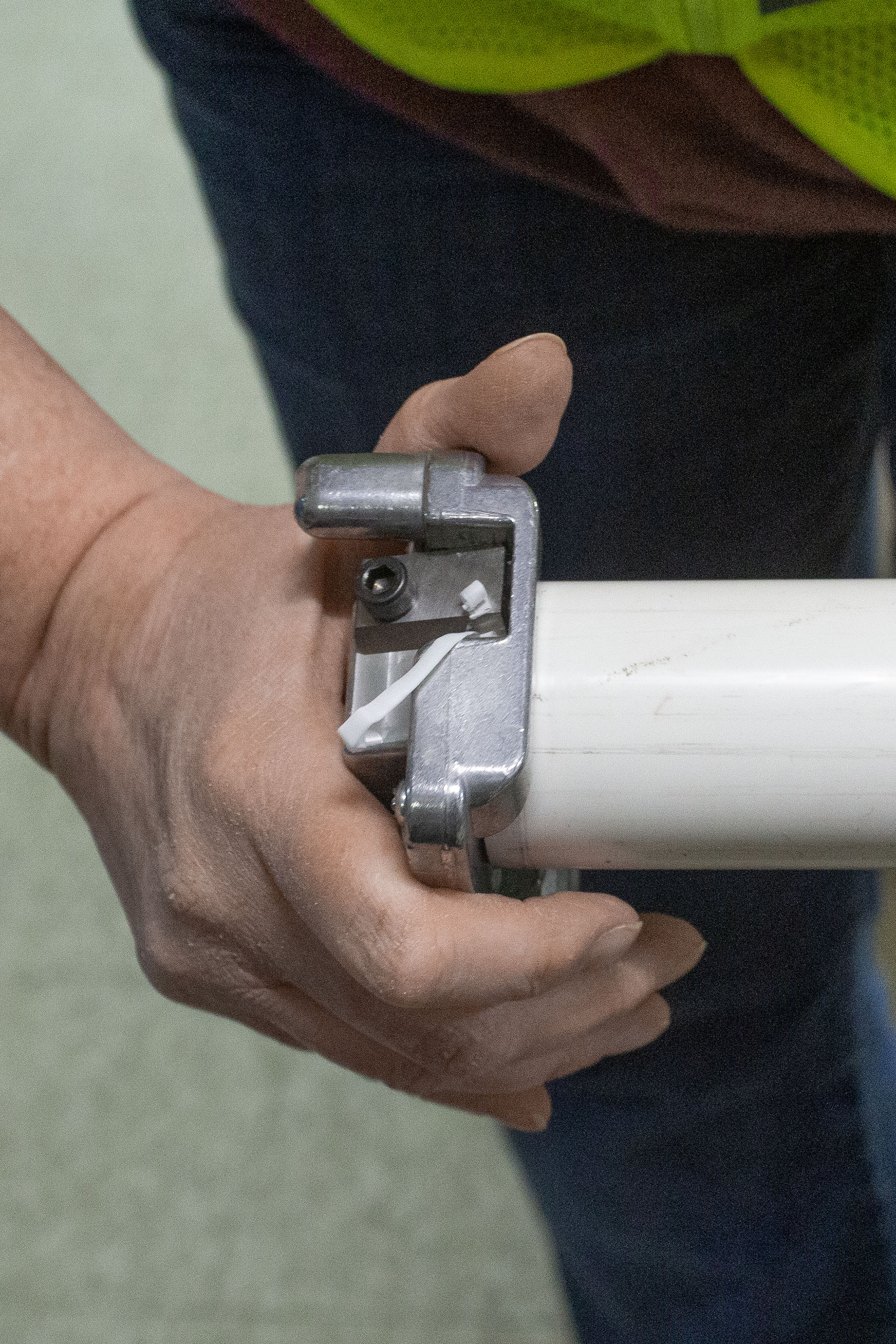

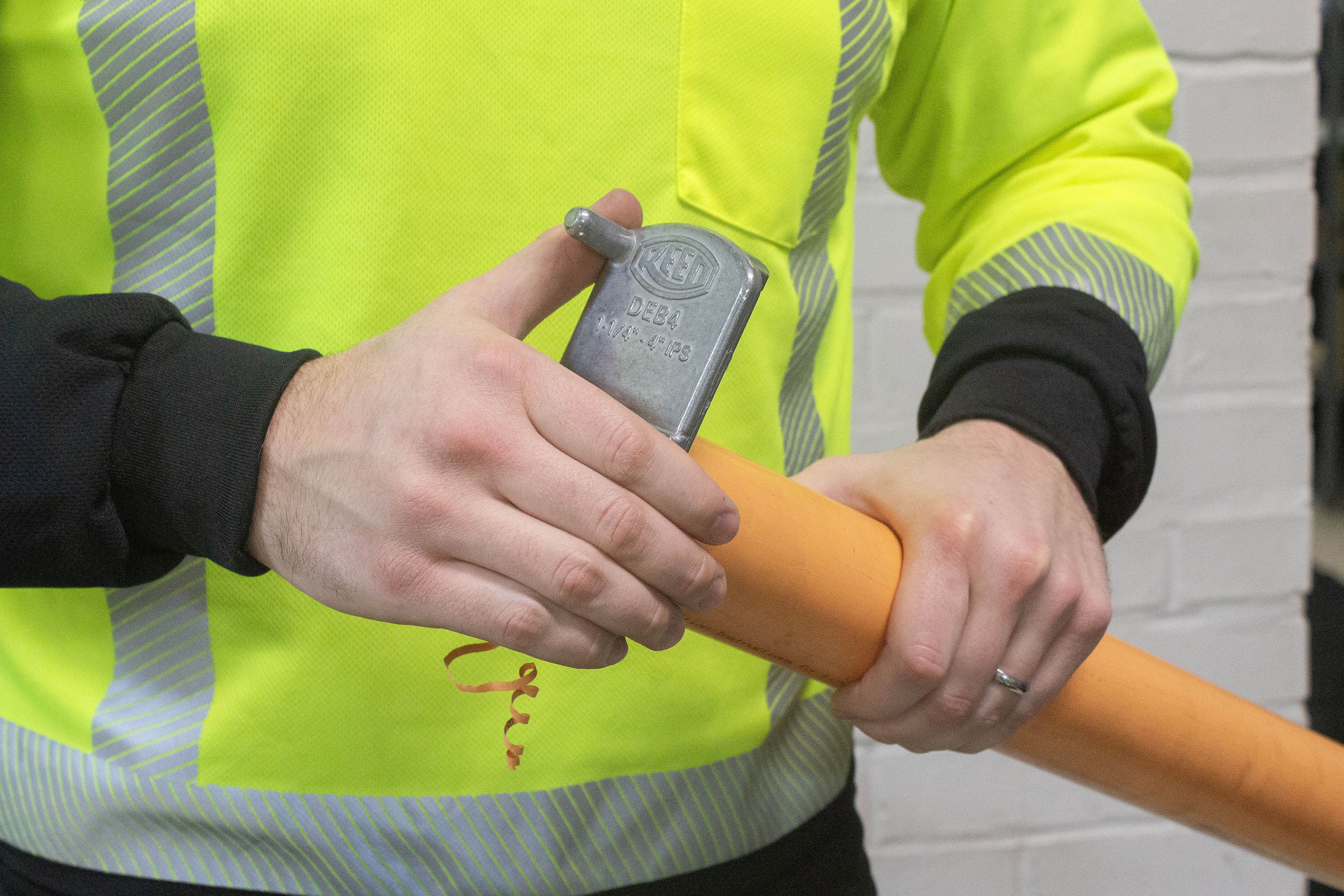

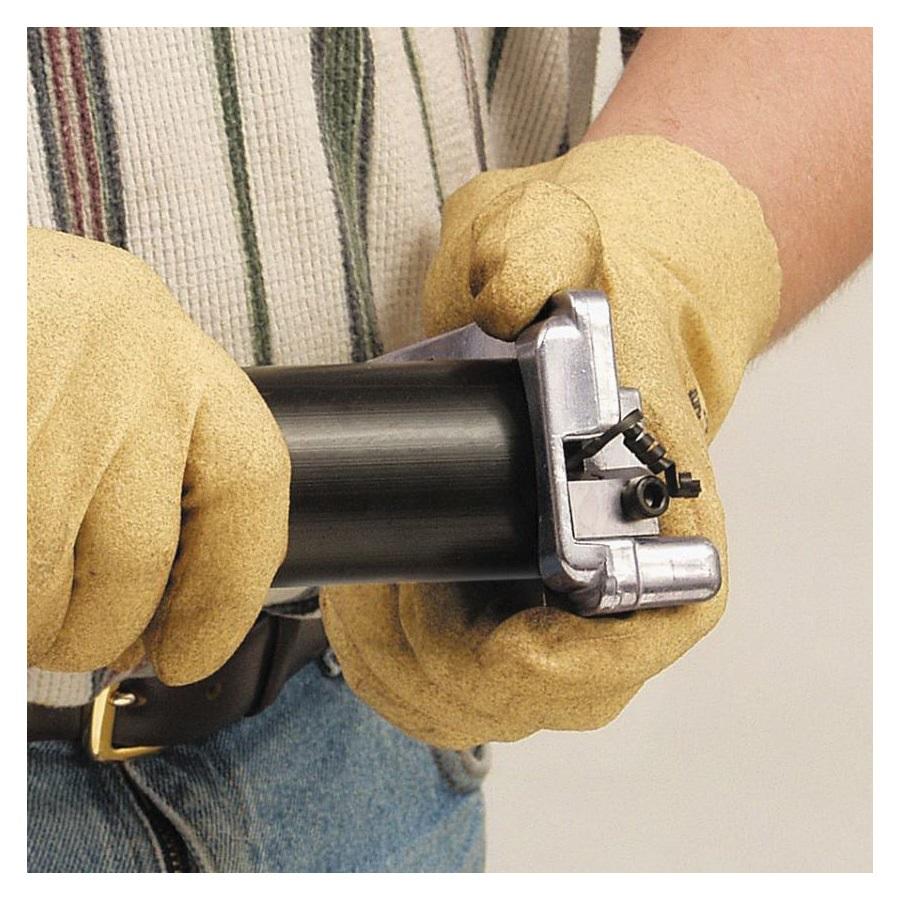

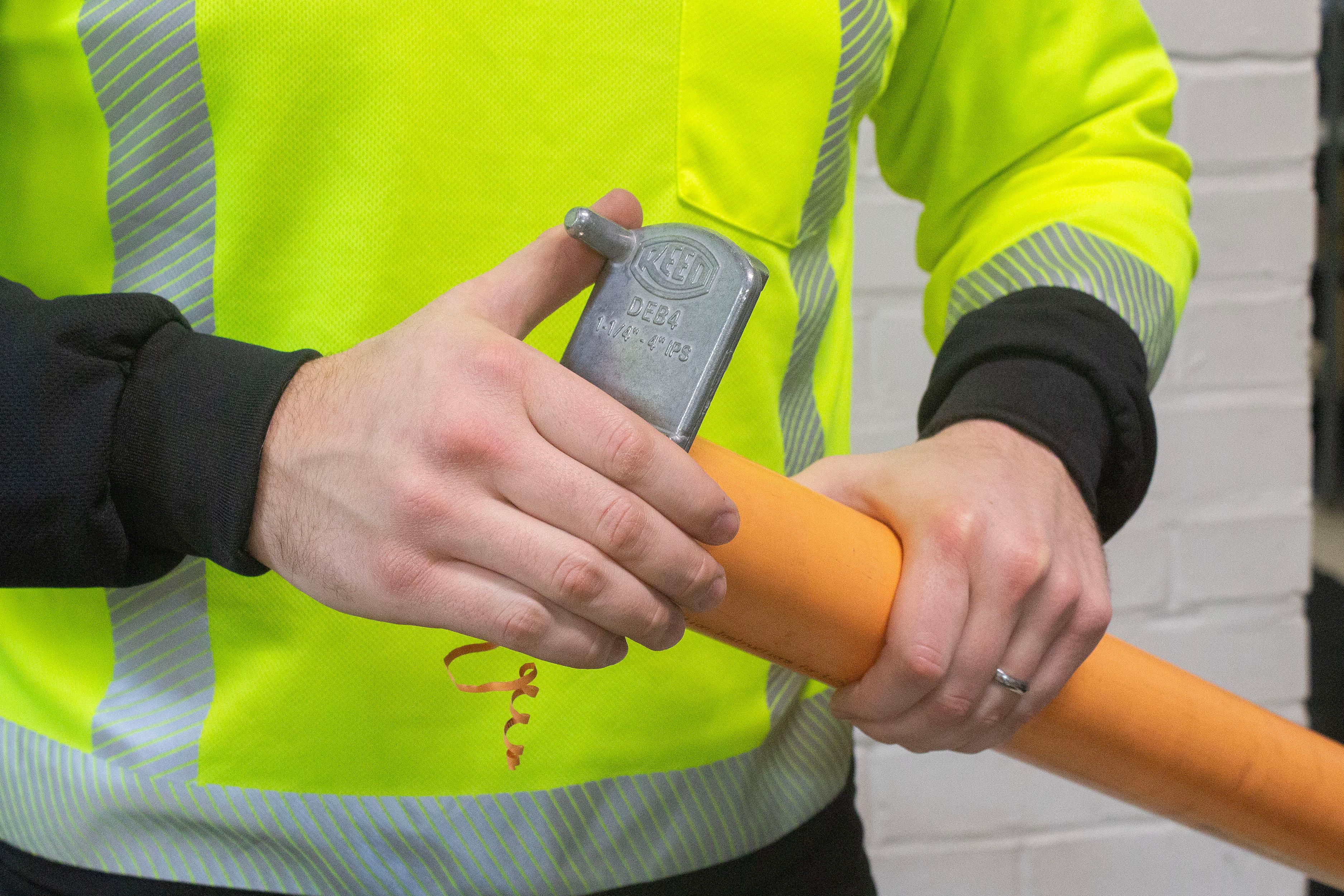

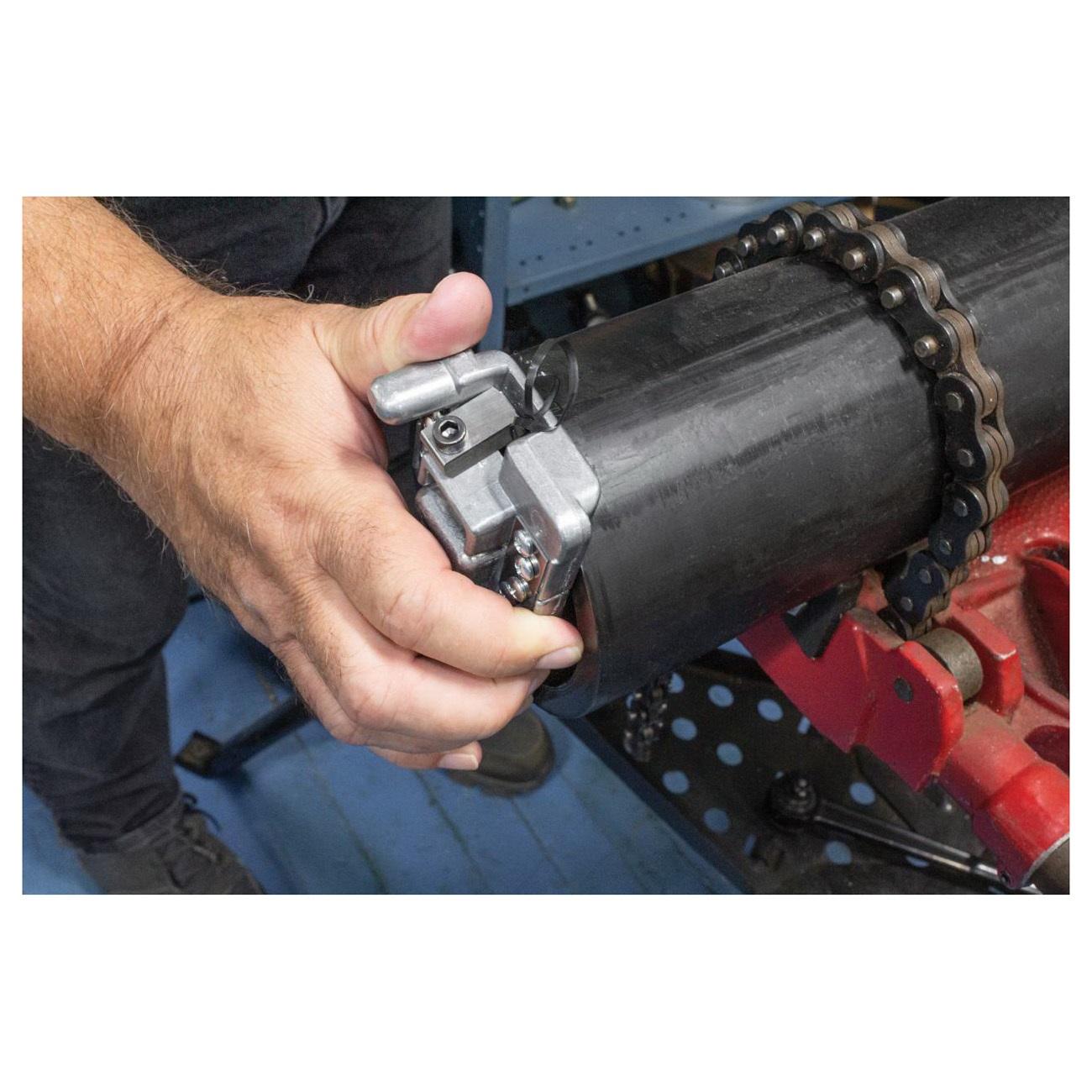

- Snap onto plastic pipe and rotate to cut an external chamfer
- Fits six pipe diameters in one tool
- Suitable for PVC, CPVC, ABS and PP
- Deburr and chamfer in the same rotation using DEB4
