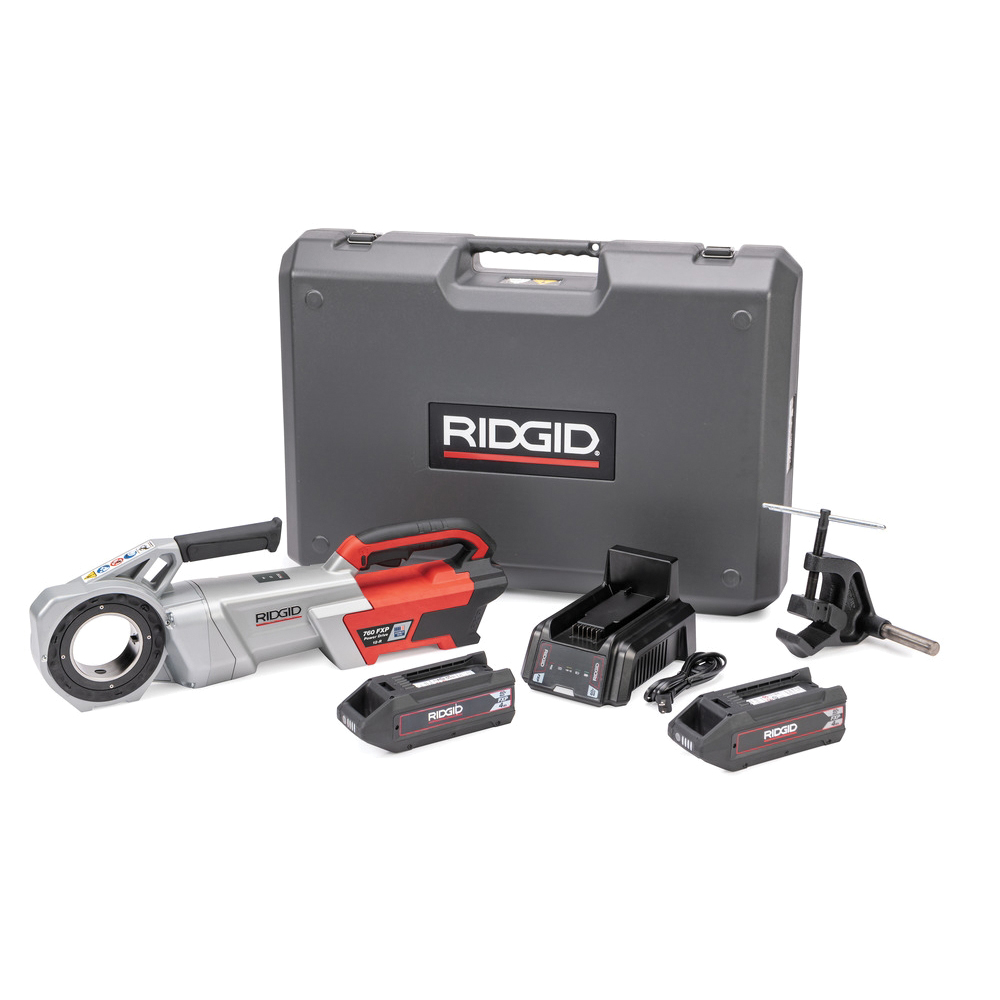

RIDGID® 760 FXP™ 12-R 72013 Power Drive, Bare Tool/Kit: Kit, 60 V, 1080 W, 42 rpm Speed, 76 in L Cord
- Manufacturer: Emerson Electric Co
- Brand Name: RIDGID®
- Part#: RIG72013
- MPN: 72013
- UPC: 095691720139
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

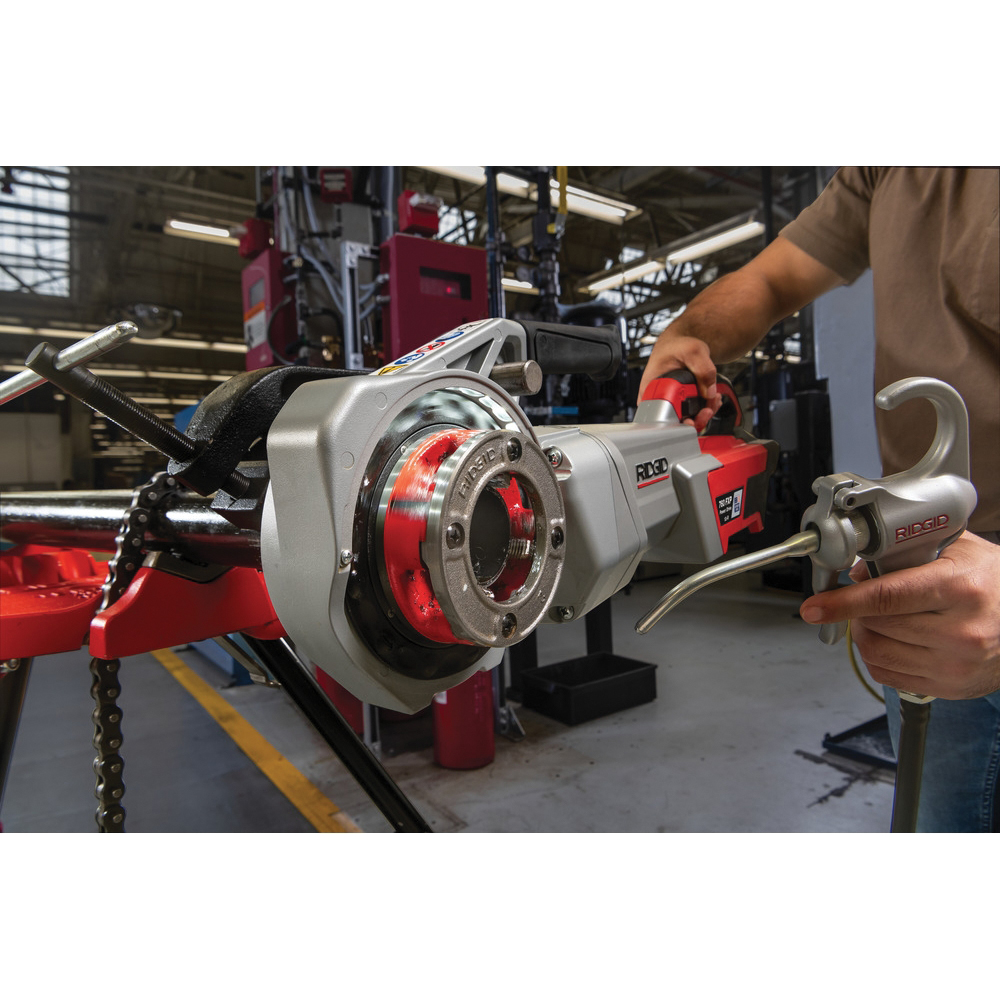

Thread pipe quickly and precisely with the battery-powered RIDGID 760 FXP™ Power Drive. The FXP™ Technology Platform offers portability and provides the power to achieve up to 30 2" threads per charge*. When kickback is detected during threading the tool will automatically shut off. The Power Drive also delivers industry-leading speed with added features like workspace lights and LED alerts when the thread is nearing completion. This tool provides everything you need to get the job done.
RIDGID® Power Drive, Model: 760 FXP™ 12-R, Kit, 60 V, 20 A, 1080 W, 1/8 to 2 in Pipe Outside Diameter, 42 rpm, Forward/Reverse Slide, On/Off Momentary Contact Switch, 76 in Cord Length, Aluminum/Glass Filled Plastic Housing, Gray, 27.8 in L x 5.2 in W x 9.17 in H, Additional Information: Brushless DC Motor, 1/4 to 1 in Bolt Threading Capacity
| Additional Information | : | Brushless DC Motor, 1/4 to 1 in Bolt Threading Capacity |
| Amperage Rating | : | 20 A |
| Amperage | : | 20 |
| Bare Tool/Kit | : | Kit |
| Battery Advertised Voltage | : | 60 |
| Battery Composition | : | Lithium Ion |
| Blue Tooth | : | Yes |
| Capacity Max | : | 2 IN / 50.8 MM |
| Capacity Min | : | 0.125 IN / 3.175 MM |
| Color | : | Gray |
| Cord Length | : | 76 in |
| Dimensions | : | 27.8 in L x 5.2 in W x 9.17 in H |
| Height | : | 9.1 IN / 231.14 MM |
| Horsepower | : | 0.8 |
| Housing Material | : | Aluminum/Glass Filled Plastic |
| Length | : | 27.8 IN / 706.12 MM |
| Light | : | LED |
| Material | : | Aluminum |
| Maximum Operating Temperature | : | 140 F / 60 C |
| Minimum Operating Temperature | : | -4 F / -20 C |
| Model | : | 760 FXP™ 12-R |
| Number of Handles | : | 2 |
| Pipe Outside Diameter | : | 1/8 to 2 in |
| Power Rating | : | 1080 W |
| Power | : | DC |
| RPM | : | 42 |
| Shape | : | Irregular |
| Speed Rating | : | 42 rpm |
| Switch Type | : | Forward/Reverse Slide, On/Off Momentary Contact |
| Torque | : | 180 NTM |
| Type | : | DC Brushless |
| Voltage Rating | : | 60 V |
| Voltage | : | 54 VLT |
| Wattage | : | 1080 |
| WiFi | : | No |
| Width | : | 5.2 IN / 132.08 MM |
- Cordless Freedom - Complete up to 30 2" threads on a single charge with the FXP Battery Platform
- Torque Reaction Shutoff - Tool automatically shuts off if kickback is detected
- Workspace LEDs - LED near die head illuminates the work area
- End of Thread Indicator - LEDs indicates when the thread is nearing completion
- Palm Pad - Eliminate the need to contact the diehead directly when starting the thread with a conveniently placed palm pad
- Connected - Customize, monitor and manage your tool with the RIDGID Link app
- Compatibility - Compatible with existing RIDGID die heads and the 258 & 258XL Pipe Cutters (12-R Tool Only)
- FXP Battery charging times - 4Ah: 40min, 8Ah: 80min
