Panasonic CU-XZ15AKUAC PSNCU-XZ15AKUAC
  1. pin-int

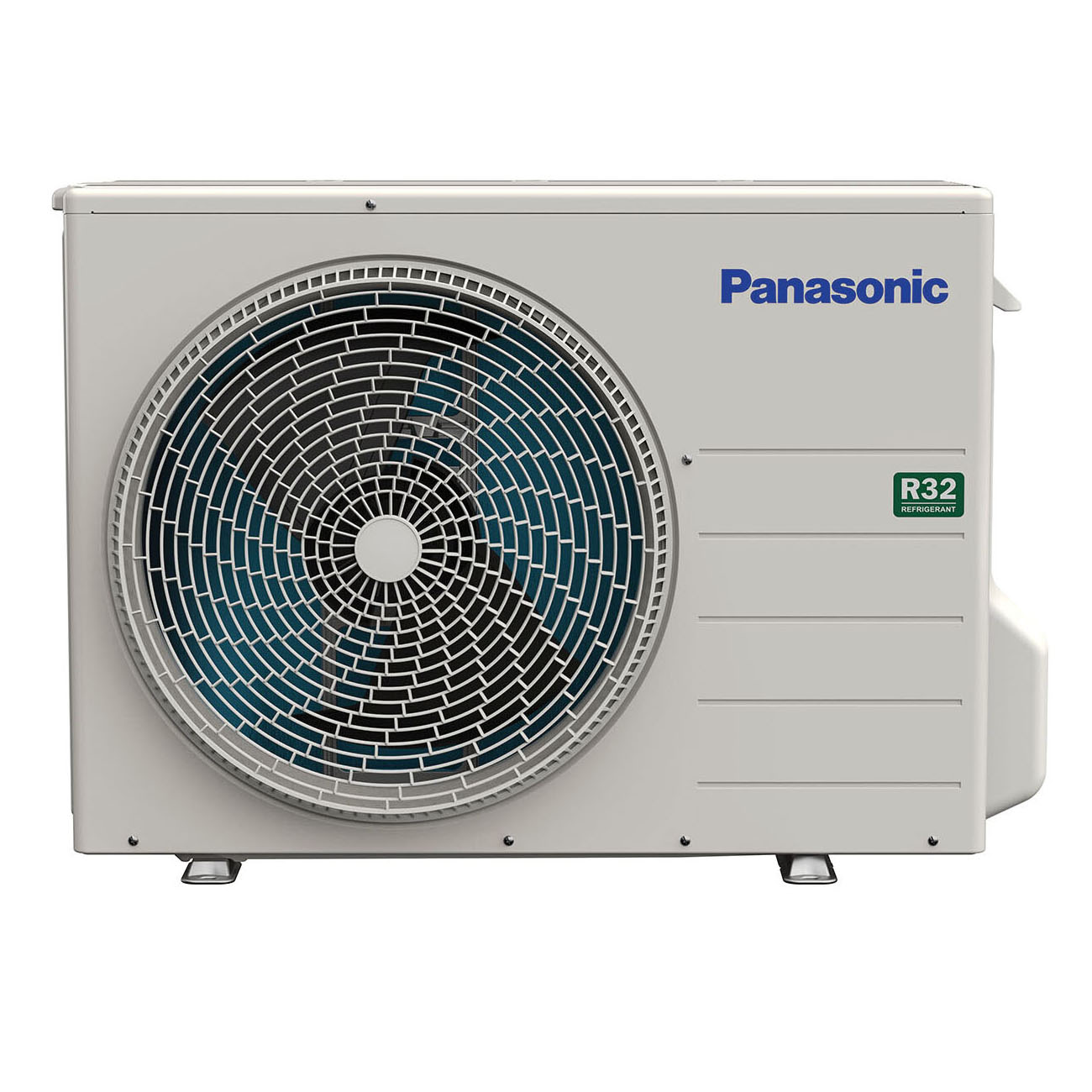

Panasonic ClimaPure™ CU-XZ15AKUAC Single-Split Outdoor Unit, 208/230 V, 10.3 A, 14700 Btu/hr Cooling, 1 ph

Panasonic ClimaPure™ CU-XZ15AKUAC Single-Split Outdoor Unit, 208/230 V, 10.3 A, 14700 Btu/hr Cooling, 1 ph

  • Manufacturer: Panasonic Corporation
  • Brand Name: Panasonic
  • Part#: PSNCU-XZ15AKUAC
  • MPN: CU-XZ15AKUAC
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Ductless heating and air conditioning systems provide optimal comfort along with the reduced energy consumption that comes with zoned temperature control. The new XZ ductless system features an improved nanoe™ X - a built-in air and surface purification technology that provides a comfortable environment for everyone.

Panasonic Single-Split Outdoor Unit, XZ Series, Model: XZ15AKUA, 208/230 V, 10.3 A, 1100 W Cooling, 1230 W Heating, 60 Hz, 1 ph, 17200 Btu/hr Heating, 14700 Btu/hr Cooling, 1405 cfm Heating CFM Rating, 1405 cfm Cooling CFM Rating, 13.35 EER Rating, 22.4 SEER, 8.9/12 HSPF, Flared Connection Type, Inverter Driven Hermetic Rotary Compressor, R-32 Refrigerant, 1/4 in Liquid Line, 1/2 in Suction Line, 20 A Fuse Rating, 2-Row, 19 FPI Coil, 50 dBA Heating Sound Level, 50 dBA Cooling Sound Level, Powder-Coated, -14.8 to 75.2 deg F Heating Operating Temperature, -0.04 to 114.8 deg F Cooling Operating Temperature, 12-5/8 in Overall Length, 34-15/32 in Overall Width, 27-5/8 in Overall Height

Amperage Rating      :      10.3 A
Coil Rating      :      2-Row, 19 FPI
Compressor Type      :      Inverter Driven Hermetic Rotary
Connection Type      :      Flared
Cooling BTU Rating      :      14700 Btu/hr
Cooling CFM Rating      :      1405 cfm
Cooling Operating Temperature      :      -0.04 to 114.8 deg F
Cooling Sound Level      :      50 dBA
EER Rating      :      13.35
Finish      :      Powder-Coated
Frequency Rating      :      60 Hz
Fuse Rating      :      20 A
HSPF Rating      :      8.9/12
Heating BTU Rating      :      17200 Btu/hr
Heating CFM Rating      :      1405 cfm
Heating Operating Temperature      :      -14.8 to 75.2 deg F
Heating Sound Level      :      50 dBA
Liquid Line Size      :      1/4 in
Model      :      XZ15AKUA
Overall Height      :      27-5/8 in
Overall Length      :      12-5/8 in
Overall Width      :      34-15/32 in
Phase      :      1 ph
Power Rating      :      1100 W Cooling, 1230 W Heating
Refrigerant Type      :      R-32
SEER Rating      :      22.4
Series      :      XZ Series
Suction Line Size      :      1/2 in
Voltage Rating      :      208/230 V
  • Indoor unit: CS-XZ15AKUAW / Outdoor unit: CU-XZ15AKUAC
  • The indoor unit CS-XZ15AKUAW can also be used for Multi-Zone Installations
  • -26 degC (-15 degF) Cold climate heating operation
  • R32 Refrigerant for zero impact on the ozone layer
  • Improved nanoe™ X - air and surface purification
  • AI ECO intelligently balances energy savings and comfort
  • Wireless remote control included (New modern design)
  • Improved comfort cloud app
  • Built-in Wi-Fi (easy to connect)
  • Fireplace function
  • Base pan heater included
  • ENERGY STAR® Cold Climate Certified
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Panasonic_CUXZ12AKUAC_Catalog.pdf
  • pdfSubmittal https://assets.unilogcorp.com/267/ITEM/DOC/Panasonic_CUXZ15AKUAC_Submittal.pdf
