Panasonic CS-Z9AKUAW PSNCS-Z9AKUAW
  1. pin-int

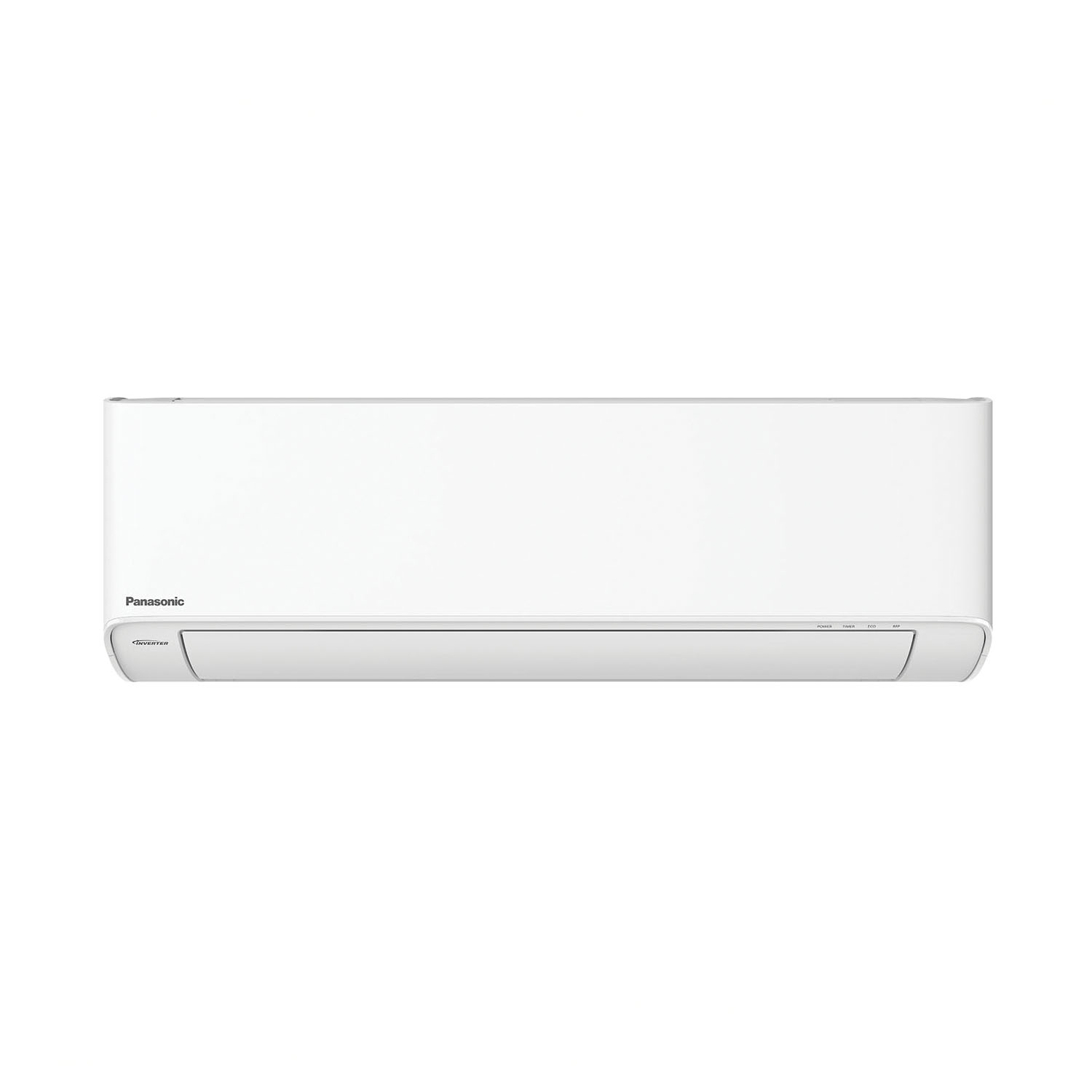

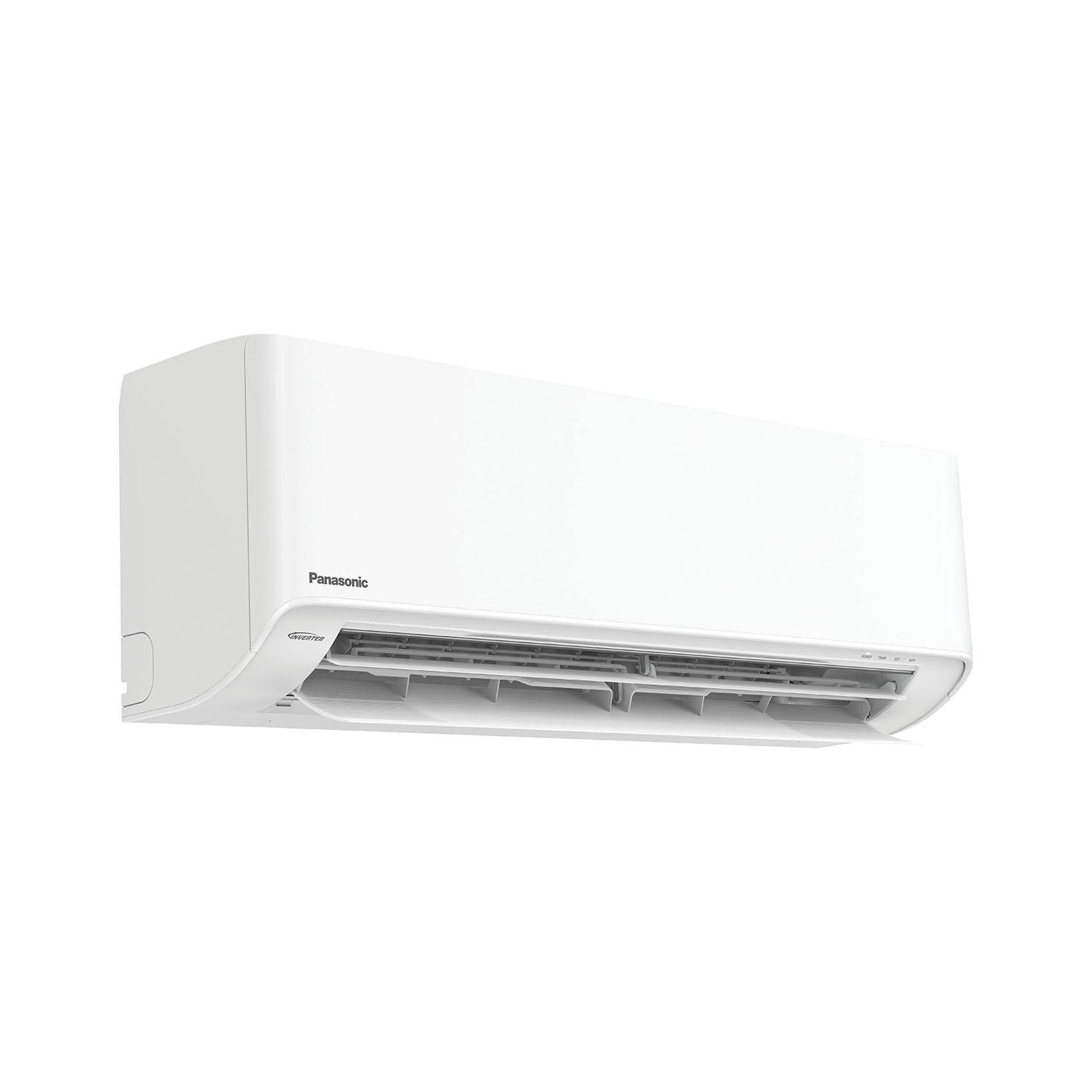

Panasonic EXTERIOS® CS-Z9AKUAW Multi-Split Indoor Unit, 208/230 V, 7.8 A, 8700 Btu/hr Cooling, 10900 Btu/hr Heating BTU

Panasonic EXTERIOS® CS-Z9AKUAW Multi-Split Indoor Unit, 208/230 V, 7.8 A, 8700 Btu/hr Cooling, 10900 Btu/hr Heating BTU

  • Manufacturer: Panasonic Corporation
  • Brand Name: Panasonic
  • Part#: PSNCS-Z9AKUAW
  • MPN: CS-Z9AKUAW
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The Panasonic EXTERIOS® Z series is a wall mounted heating and cooling mini-split heat pump. AI ECO intelligently balances energy savings and comfort. With great energy efficiency and -26degC (-15degF) heating operation, this model is often selected for rebate programs and cold climate solutions.

Panasonic Multi-Split Indoor Unit, Z Series, Model: Z9AKUA, 208/230 V, 7.8 A, 530 W Cooling, 670 W Heating, 60 Hz, 1 ph, 8700 Btu/hr Cooling, 10900 Btu/hr Heating, 410 cfm Cool, 435 cfm Heat, 16.4 EER Rating, 27.5 SEER, 9.2/12 HSPF, Flared Connection Type, 15 A Fuse Rating, 2-Row, 21 FPI Coil, 42 dBA Sound Level, Wall Mounting, Powder-Coated, -0.04 to 114.8 deg F Cooling, -14.8 to 75.2 deg F Heating, 9-1/32 in Overall Length, 34-9/32 in Overall Width, 11-5/8 in Overall Height, Additional Information: R-32 Refrigerant Type

Additional Information      :      R-32 Refrigerant Type
Amperage Rating      :      7.8 A
BTU Rating      :      8700 Btu/hr Cooling, 10900 Btu/hr Heating
CFM Rating      :      410 cfm Cool, 435 cfm Heat
Coil Rating      :      2-Row, 21 FPI
Connection Type      :      Flared
EER Rating      :      16.4
Finish      :      Powder-Coated
Frequency Rating      :      60 Hz
Fuse Rating      :      15 A
HSPF Rating      :      9.2/12
Model      :      Z9AKUA
Mounting Type      :      Wall
Overall Height      :      11-5/8 in
Overall Length      :      9-1/32 in
Overall Width      :      34-9/32 in
Phase      :      1 ph
Power Rating      :      530 W Cooling, 670 W Heating
SEER Rating      :      27.5
Series      :      Z Series
Sound Level      :      42 dBA
Temperature Rating      :      -0.04 to 114.8 deg F Cooling, -14.8 to 75.2 deg F Heating
Voltage Rating      :      208/230 V
  • Indoor unit: CS-Z9AKUAW / Outdoor unit: CU-XZ9AKUAC
  • The indoor unit CS-Z9AKUAW can also be used for Multi-Zone Installations
  • -26 degC (-15 degF) Cold climate heating operation
  • R32 Refrigerant for zero impact on the ozone layer
  • Wireless remote control included (New modern design)
  • AI ECO intelligently balances energy savings and comfort
  • Fireplace function
  • Base pan heater included
  • ENERGY STAR® Cold Climate Certified
  • pdfSubmittal https://assets.unilogcorp.com/267/ITEM/DOC/Panasonic_CSZ9AKUAW_Submittal.pdf
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Panasonic_CUXZ12AKUAC_Catalog.pdf
