BuffMax BUFF80 Buffer Storage Tank, 80 gal Capacity, 24 in Dia, Carbon Steel

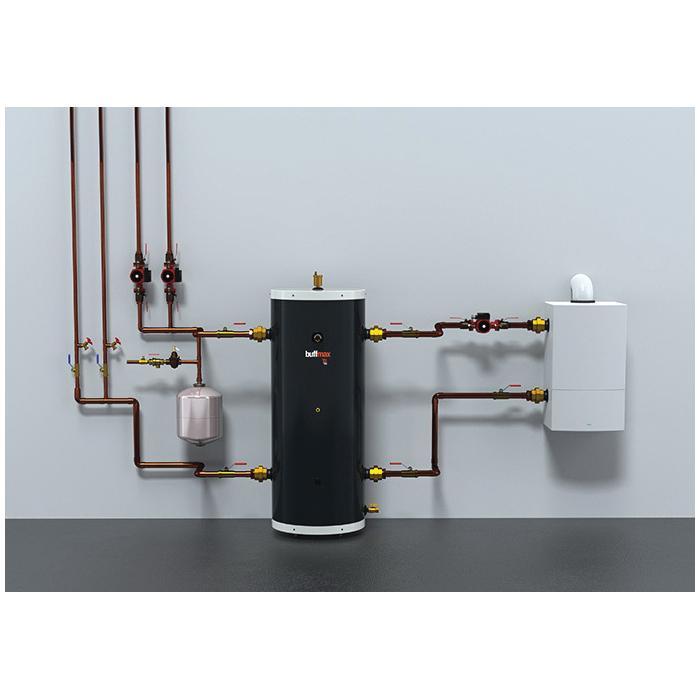

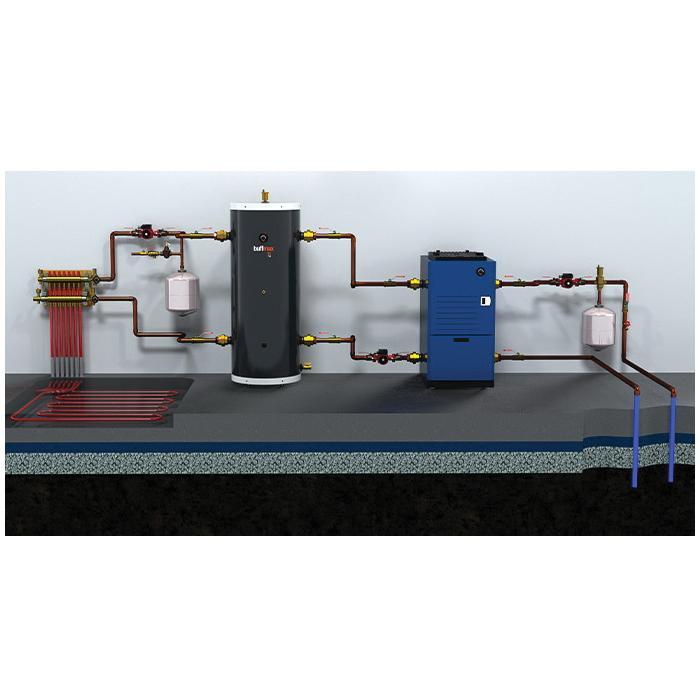

The BuffMax from Thermo 2000 is a 3-in-1 solution that acts as a buffer tank, storage tank and hydraulic separator. It is recommended to optimize the performance of several different types of heating systems, low mass boilers, biomass systems, geothermal and heat pump applications, multi-zone systems and solar energy systems. The BuffMax is synonymous with versatility. The BuffMaxs tank comes with a 10 years warranty. Its mechanical parts come with a 2 years warranty.

BuffMax Buffer Storage Tank, 80 gal Capacity, 24 in Diameter, 2-1/2 in Connection, NPT Connection, Carbon Steel, 150 psi

• 1/2 in automatic air vent with a shut-off valve for easy replacement

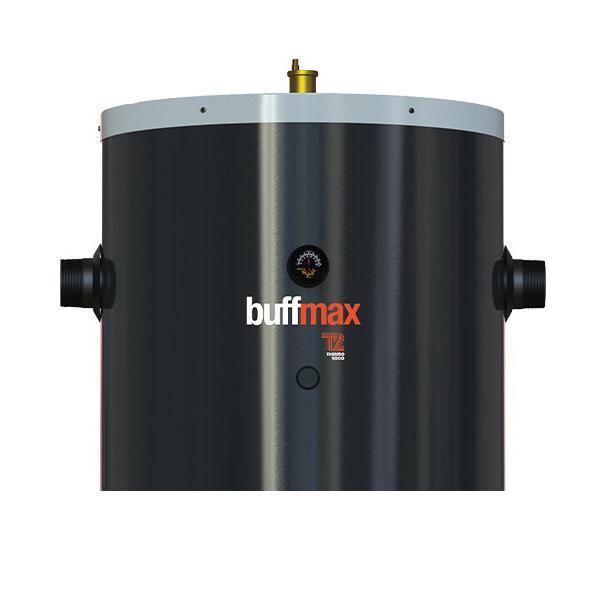

• 2-1/2 in Dia temperature and pressure indicator on the front
• Three 1/2 in connections for the location of the well or to enable wells to be added

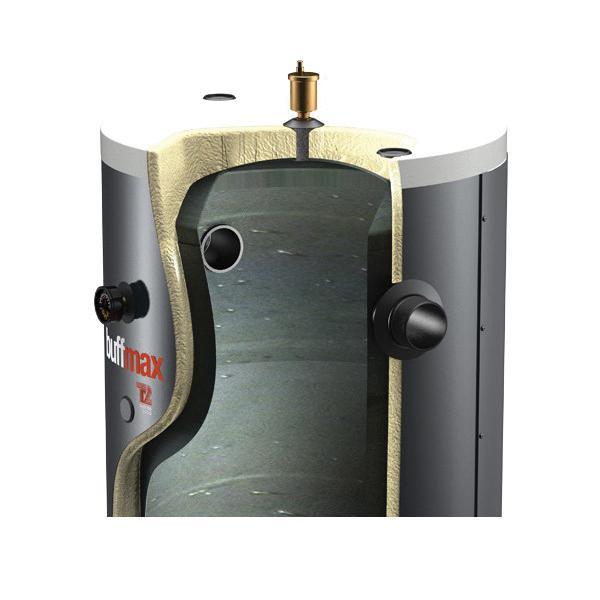

• 2 in HFC-free polyurethane insulation limiting heat loss to 1/2 deg F per hour
• 3/4 in drain valve located at the lowest point of the tank
• The tank has adjustable legs

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/BuffMax_BUFF80_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/BuffMax_BUFF80_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/BuffMax_BUFF80_Specification_Sheet.pdf
