HoldRite® Quick Stand™ 40-SWHP-W Drain Pan With 1 in MIPT x 1 in FS PVC Drain Body, 1 in Drain Connection, Galvanized
- Manufacturer: Reliance Worldwide Corporation
- Brand Name: HoldRite®
- Part#: HLR40-SWHP-W
- MPN: 40-SWHP-W
- UPC: 671119140415
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

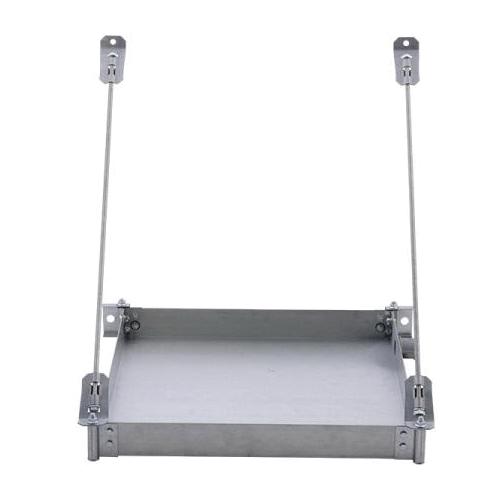

Ideal for suspending water heaters in schools, offices, restaurants and small businesses, Quick Stand™ wall-mounted water heater platforms free up usable floor space in tight quarters. The pre-assembled wall-mount is water-tight and comes with a built-in drain pan and drain fitting.
HoldRite® Drain Pan, 1 in Drain Connection, 20 gal Capacity, Cold Rolled Steel, Finish: Galvanized, 21-1/4 x 2-1/2 in Pan, 14 ga Thickness, 21-1/4 in L x 21-1/4 in W x 2-1/2 in H, For Use With: Up to 21-1/4 in Dia Water Heaters
| Capacity | : | 20 gal |
| Dimensions | : | 21-1/4 in L x 21-1/4 in W x 2-1/2 in H |
| Drain Connection | : | 1 in |
| Finish | : | Galvanized |
| Material | : | Cold Rolled Steel |
| Pan Size | : | 21-1/4 x 2-1/2 in |
| Suitable For Use With | : | Up to 21-1/4 in Dia Water Heaters |
| Thickness | : | 14 ga |
- Can adapt to concrete or framed walls
- Wide platform allows water heaters up to 21-1/4 in Dia
- Watertight corners and drain fittings eliminate need for additional drain pan
- Static load rating 375 lb with 2X safety factor
- Suspends with user-supplied 3/8 in hardware to mount to wall, four places
