BrassCraft® WB034-18N BRCWB03-18
  1. pin-int

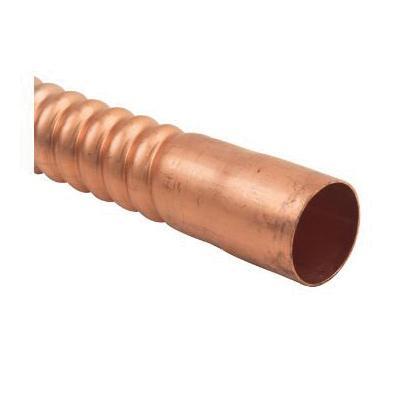

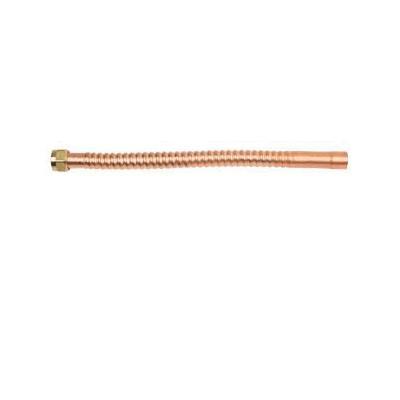

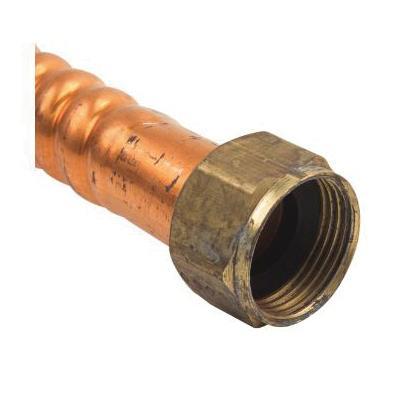

BrassCraft® WB034 Series WB034-18N Corrugated Water Heater Connector, 3/4 in, FIP x Female/Male Sweat, 18 in L

BrassCraft® WB034 Series WB034-18N Corrugated Water Heater Connector, 3/4 in, FIP x Female/Male Sweat, 18 in L

  • Manufacturer: BrassCraft Manufacturing Company
  • Brand Name: BrassCraft®
  • Part#: BRCWB03-18
  • MPN: WB034-18N
  • UPC: 026613089423
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

BrassCraft® Copper-Flex™ 3/4 in FIP inlet x 3/4 in nominal female/male sweat outlet water heater connectors. Used to connect the water supply to your water heater, this connector features an integrated dielectric sleeve, the sleeve isolates dissimilar metals within the waterway, where galvanic and electrolytic corrosion have their greatest potential. This separation provides complete protection against galvanic corrosion that can deteriorate the connector and cause leaks.

BrassCraft® Corrugated Water Heater Connector, WB034 Series, 3/4 in Connection, FIP x Female/Male Sweat Connection, 18 in Length, 7/8 in Outside Diameter, 7/8 in Inside Diameter, Brass/Copper, 125 psi, 40 to 180 deg F, For Use With: Electric or Gas Water Heaters

Connection Size      :      3/4 in
Connection Type      :      FIP x Female/Male Sweat
Inside Diameter      :      7/8 in
Length      :      18 in
Material      :      Brass/Copper
Outside Diameter      :      7/8 in
Pressure Rating      :      125 psi
Series      :      WB034 Series
Suitable For Use With      :      Electric or Gas Water Heaters
Temperature Rating      :      40 to 180 deg F
  • Corrugated copper tube
  • Use with electric or gas water heaters or softeners, use only to connect water
  • For use in exposed locations only to connect water heaters and other water connected devices to the water supply
  • No dielectric union needed, the integrated dielectric sleeve eliminates the need to install an additional dielectric union, reducing time and installation costs
  • Designed, machined and assembled in the USA
