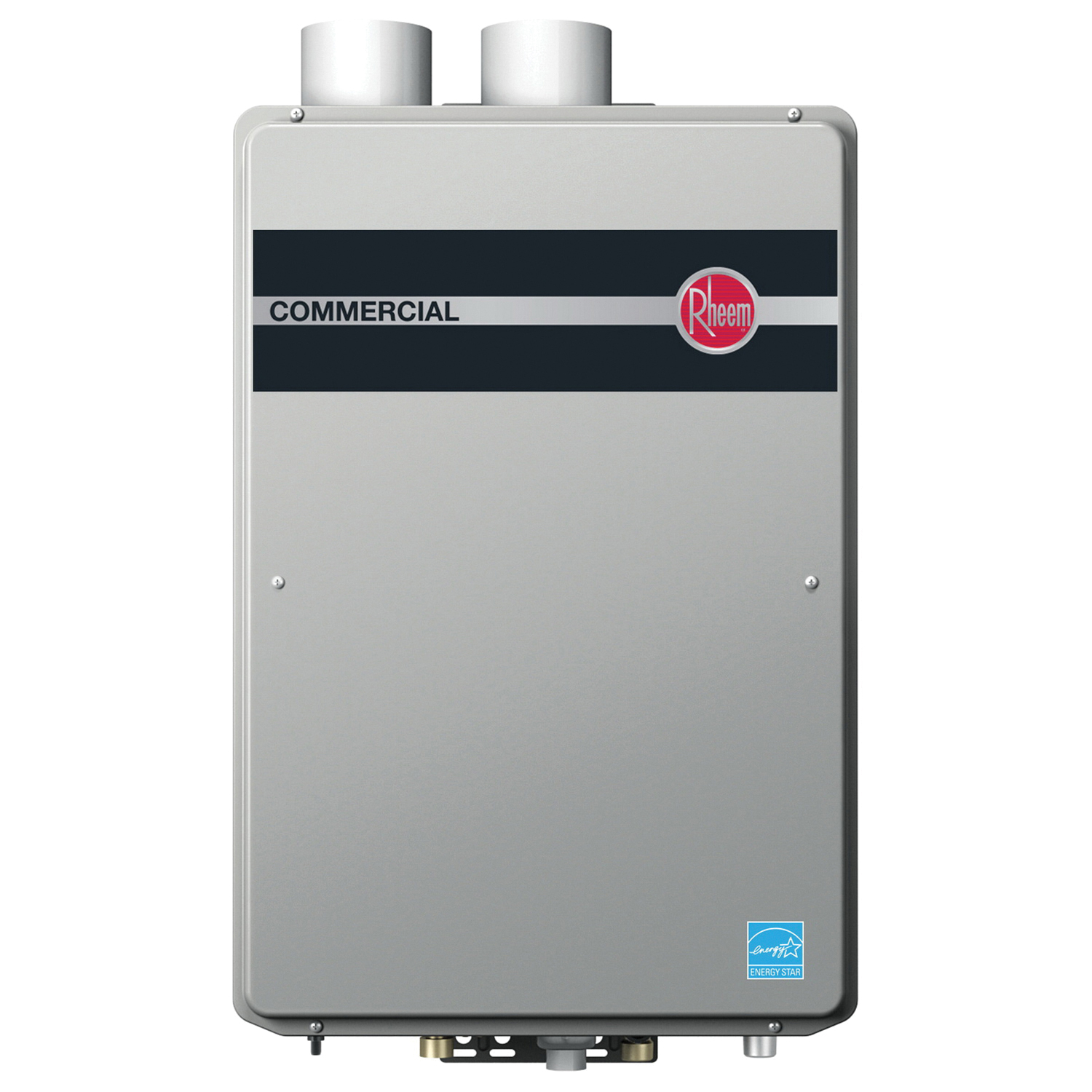

Rheem® RTGH-C95DVLN Condensing Tankless Water Heater, 11000 to 199000 Btu/hr, Natural Gas
- Manufacturer: Rheem Manufacturing
- Brand Name: Rheem®
- Part#: RHERTGH-C95DVLN
- MPN: RTGH-C95DVLN
- UPC: 020352681399
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Rheem® Condensing Tankless Water Heater, 11000 to 199000 Btu/hr, 9.5 gpm, 96 % AFUE, Indoor Direct Vent, 120 V, 60 Hz, 150 psi, Yes Energy Star Compliant, 3 in Vent Dia, Natural Gas, Direct Ignition, 100 to 120 deg F, 27-1/2 in H x 18-1/2 in W x 9-3/4 in D
| AFUE Rating | : | 96 % |
| BTU Rating | : | 11000 to 199000 Btu/hr |
| Dimensions | : | 27-1/2 in H x 18-1/2 in W x 9-3/4 in D |
| Energy Star Compliant | : | Yes |
| Flow Rate | : | 9.5 gpm |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Direct |
| Pressure Rating | : | 150 psi |
| Temperature Rating | : | 100 to 120 deg F |
| Vent Diameter | : | 3 in |
| Vent Type | : | Indoor Direct |
| Voltage Rating | : | 120 V |
- Up to 96% thermal efficiency with stainless steel condensing heat exchanger, intelligent electronic controls designed to increase energy efficiency and safety
- Low flow fixture compatible - industry first minimum flow rate of 0.26 gal/min and minimum activation flow rate of 0.4 gal/min ensures the user will receive hot water even in low demand situations
- Recirculation pump kit-ready quickly pairs with our recirculation pump kit to provide instantaneous hot water at the tap
- Ability to vent with room air
- Indoor, natural gas units are common vent compatible up to 10 units
- Common venting with polypropylene
- Built-in condensate neutralizer
- 1/2 in gas line compatibility
- Exclusive maintenance notice setting alerts flashing a warning code to call for service check
- Self-diagnostic system for easy installation and service
- Digital display shows temperature setting and maintenance codes
- Two pipe direct vent system designed for PVC pipe, up to 38 ft of 3 in PVC pipe or 5 ft of 2 in PVC pipe
- High-altitude capability up to 8400 ft elevation above sea level
- Digital remote control and 10 ft of thermostat wire included
- Freeze protection to -30 deg F
- Hot start programming helps minimize fluctuation in water temperature, referred to as cold water sandwich, during periods of frequent on/off operation
- Exclusive, overheat film wrap with industry best side to side clearance of 1/2 in
- EZ-Spec™ sizing software advanced online tool that takes the guesswork out of sizing tankless applications
- Complies with south coast air quality management district 14 ng/J or 20 ppm NOx emission levels
-
